AS Illuminated triple switch orange white, frameless ŁP-13GS/M/00

Name: AS Illuminated triple switch orange white, frameless
Brand: OSPEL
SKU: MMW005OSPE
Price: 44.64 PLN
Availability: BackOrder

Lokaler Index:

MMW005OSPE

Katalognummer:

ŁP-13GS/M/00

EAN-Code:

5907577451233

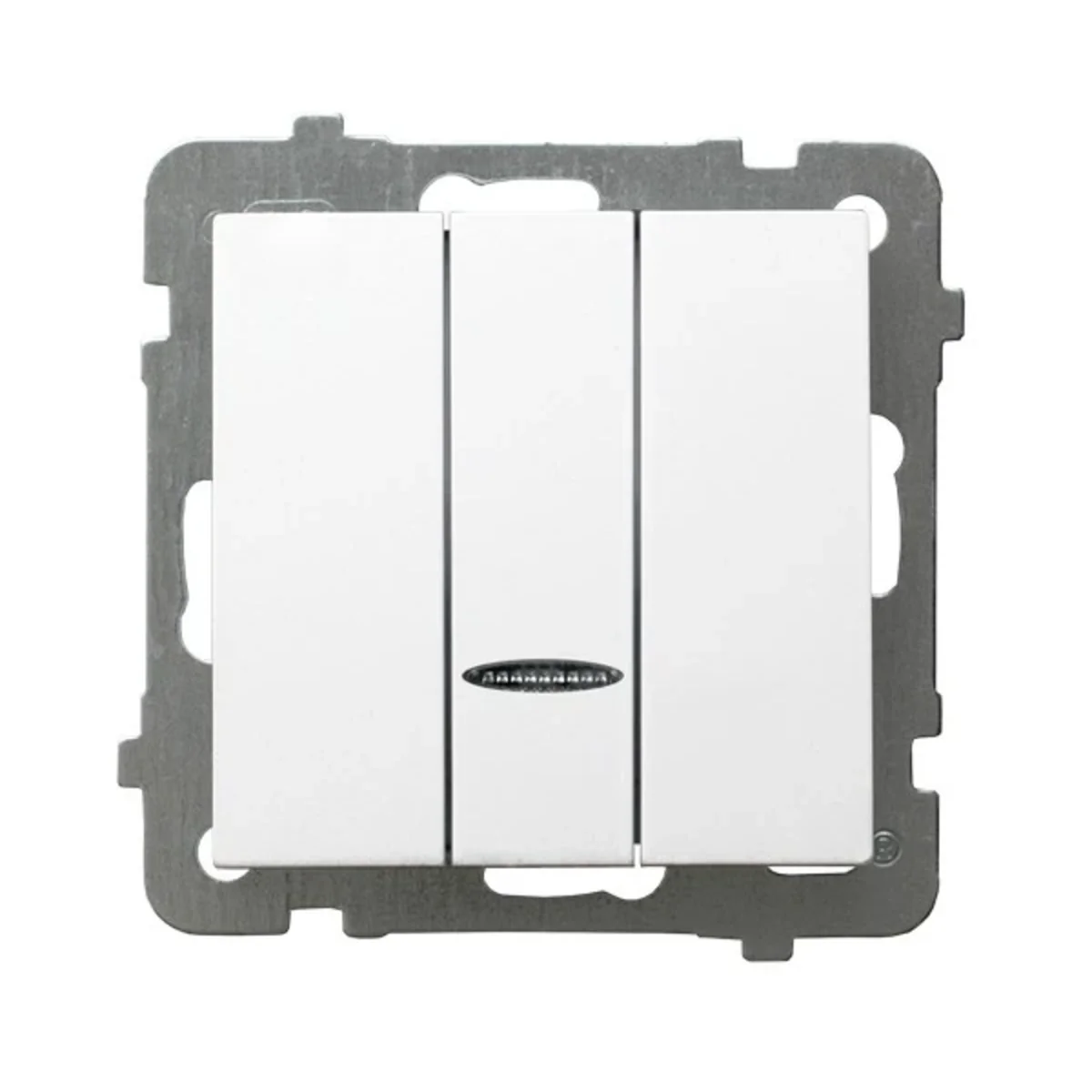

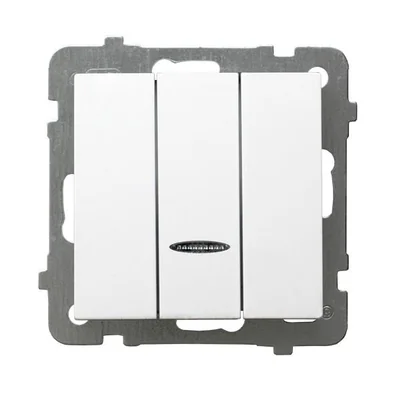

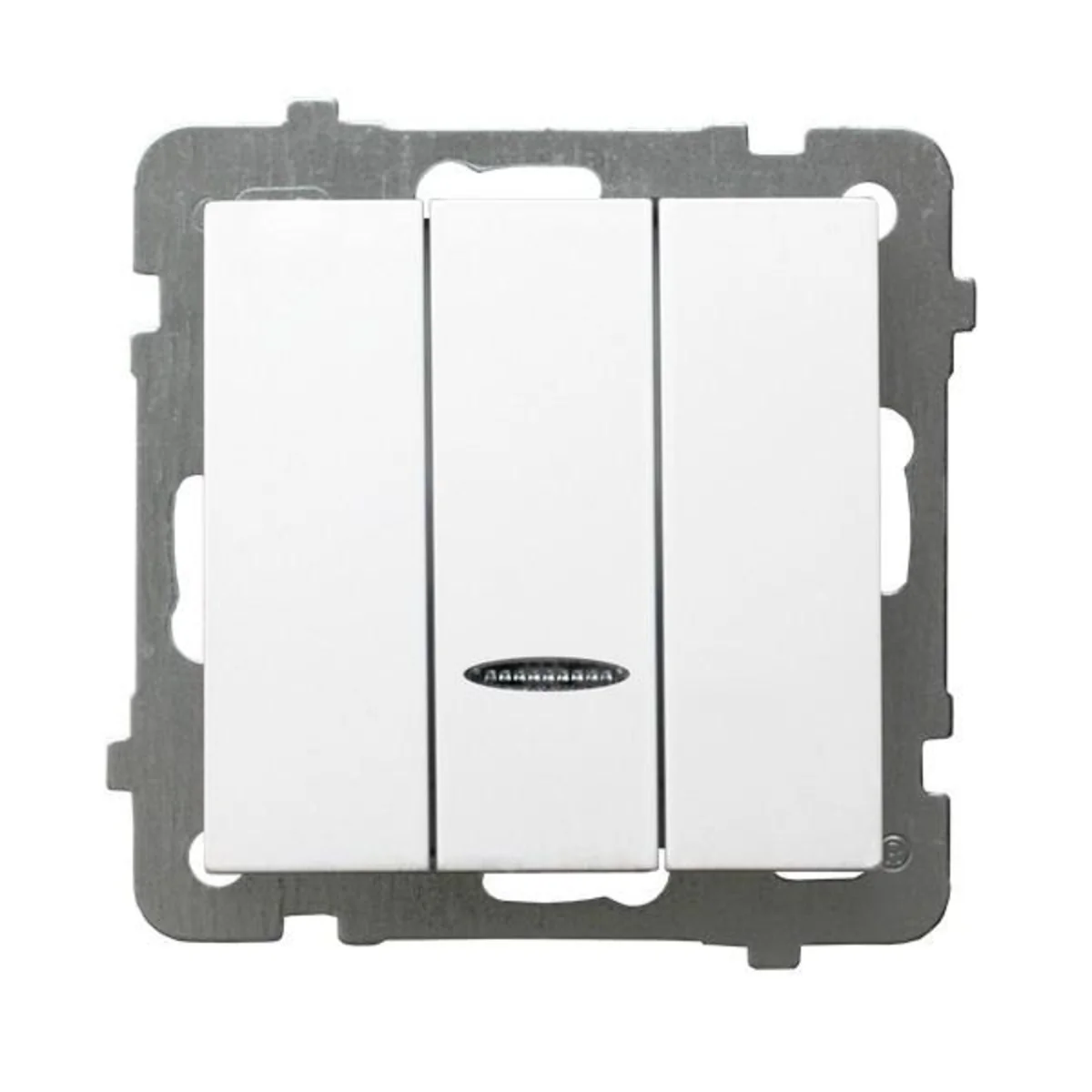

AS Illuminated triple switch orange white, frameless

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: OSPEL

Depth [mm]: 40

Number of keys: 3

Color: White

Siehe vollständige Beschreibung

Preis:

44,64 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 2 Wochen

Auf Bestellung

Menge stk.

(mehrere:

1

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Triple illuminated switch from the As series, from Ospel. The product catalog number is ŁP-13GS/M/00.

SERIES DESCRIPTION

Products from the As are distinguished by delicate curvatures of the frames. The triple connector characterize the features of this unique series.

Technische Daten

Depth [mm]

40
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

AS
Width [mm]

71
Height [mm]

71
Backlight

Yes
For the frame system

Yes
Backlight type

LTS lamp
PKWIU

27.33.11.0

Number of keys

3
Shape

Square
Fixing

claws screws
Rated voltage [V]

230
Type

Multi-key
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Mounting depth [mm]

25
Exact material

Plastic Metal
Backlight color

Orange

Weitere technische Daten

Wiring system

Off switch 3x1-pole
Assembly arrangement

Basic element with complete housing
Push button switch

No
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Label space/information surface

No
Function lighting

Orientation
Suitable for degree of protection (IP)

IP20
Rated current

10 A
Feedback-signal contact

No
Washing machine switch

No
Device height

75 mm
Built-in depth

25 mm

Method of operation

Rocker/button
Number of modules (module system)

1
Number of rockers

3
Type of fastening

Mounting with claw and screw
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9003
Illumination

Yes
Type of lighting

Glow lamp
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Device width

75 mm
Device depth

40 mm
Min. depth of built-in installation box

60 mm

Hersteller-Details

Hersteller

OSPEL S.A.
Adresse

42-436 Wierbka Główna 128 Polska
E-Mail

ospel@ospel.com.pl

Großpackungen

Eine Art Paket	Pudełko
Menge	10 stk.
Breite (m)	0,710
Länge (m)	0,710
Tiefe (m)	0,250
