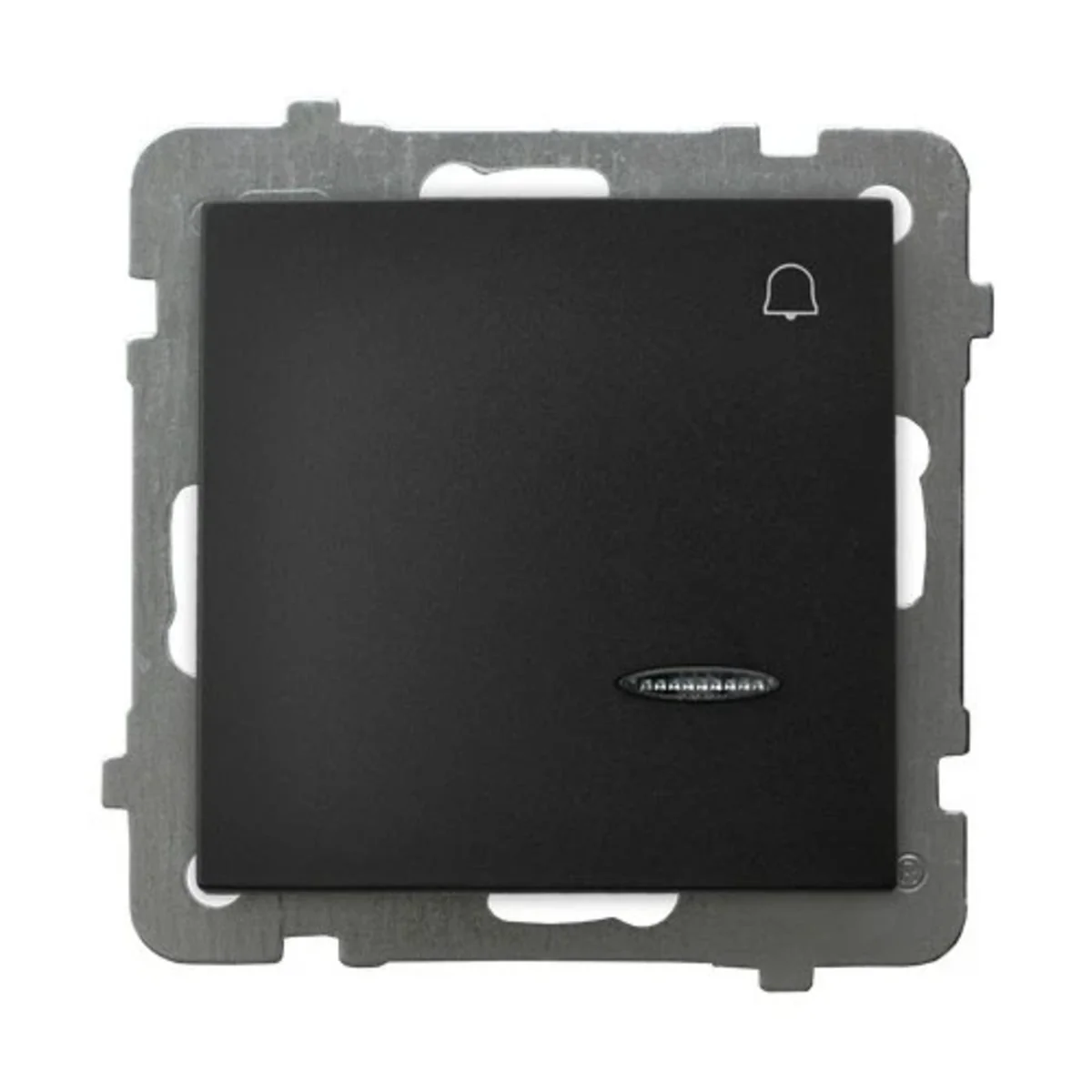

AS Illuminated "bell" switch, black metallic, without frame ŁP-6GS/M/33

Índice local:
MMZ212OSPE
Número de catálogo:
ŁP-6GS/M/33
Código EAN:
5906729016580
Fabricante: OSPEL
Depth [mm]: 40
Number of keys: 1
Color: Black
Precio:
38,61 zł
gross / uds.
(IVA incluido 23%)
hasta una semana
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Normally operated "bell" switch with illumination, from the As series, from the manufacturer Ospel.

FEATURES

  • To be equipped with a frame.
  • "Bell" symbol on the key.
  • Illumination - LTS lamp.
  • To obtain the IP44 splash-proof class, use a sealing kit for switches.

SERIES DESCRIPTION

The As series is a geometric form broken by the delicate curves of the frames. It's a combination of dynamic design and neutral colors that will complement any interior. High-quality materials and a timeless design have allowed us to create a product that will adorn your interior for many years.

As is the perfect solution for those who value true classic style. Both the main elements and the complementary frames are based on a square with sharply defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly correspond to the classic style.

Datos técnicos

  • Depth [mm]
    40
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Symbol
    Bell
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    25
  • Variant
    Bell
  • Exact material
    Plastic Metal
  • Backlight color
    Orange
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    71
  • Version
    Confident
  • Surface protection
    varnishing
  • Backlight
    Yes
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Backlight type
    LTS

Otros datos técnicos

  • Wiring system
    Other
  • Number of modules (module system)
    1
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    9005
  • Nominal voltage
    250 V
  • Device width
    71 mm
  • Device depth
    40 mm
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Black
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Detalles del fabricante

  • Fabricante
    OSPEL S.A.
  • Dirección
    42-436 Wierbka Główna 128 Polska

Empaquetado a granel

una especie de paquete Pudełko
Cantidad 4 uds.
Ancho (m) 0,710
Longitud (m) 0,710
Profundidad (m) 0,250
