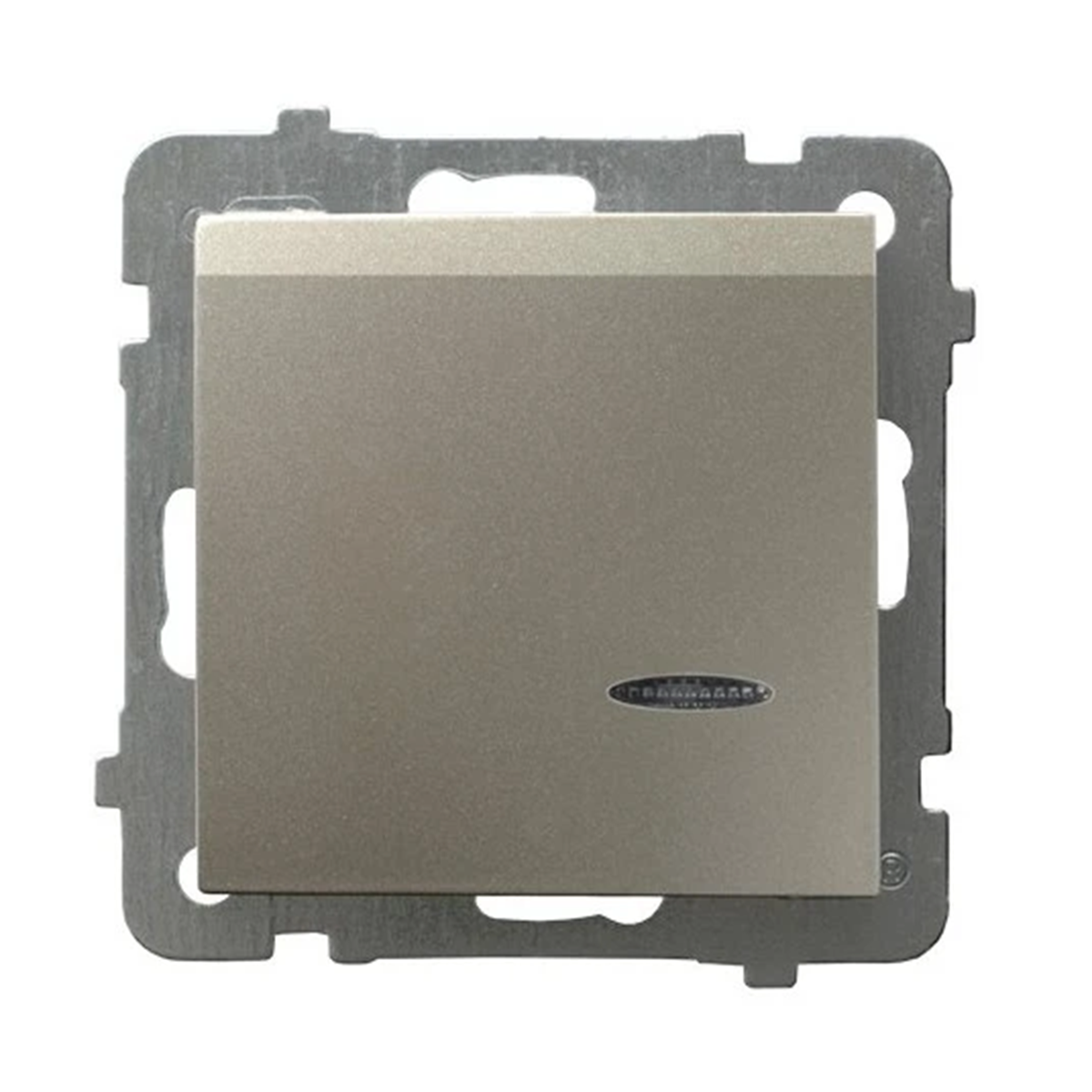

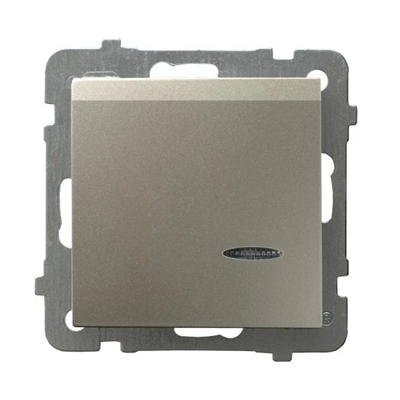

AS Hotel hotel fastener light satin ŁP-15GS/M/45

Name: AS Hotel hotel fastener light satin
Brand: OSPEL
SKU: MMH004OSPE
Price: 28.62 PLN

Index local:

MMH004OSPE

Numéro de catalogue:

ŁP-15GS/M/45

Code EAN:

5907577475413

Cliquer sur la photo pour l'agrandir

Producteur: OSPEL

Depth [mm]: 52

Number of keys: hotel card

Color: Silver

Voir la description complète

Prix:

28,62 €

gross / pcs.

(y compris la TVA 23%)

Livraison en 3h

jusqu'à 4 semaines (jours ouvrables)

Ramassage en 1h

Quantité pcs.

(plusieurs:

1

)

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

Hotel connector from the As series, from Ospel. The product catalog number is ŁP-15GS/M/45.

FEATURES

Delay relay off 3s.
Trigger type - electronic, photocell.

SERIES DESCRIPTION

Products from the As series are distinguished by delicate curvatures of the frames. Hotel connector characterizes the features of this unique series.

Données techniques

Depth [mm]

52
Color

Silver
Material

Plastic
Rated voltage [V]

230
Rated current [A]

16
Family

AS
Width [mm]

71
Height [mm]

71
Accurate color

light satin
Mounting depth [mm]

31
Terminal type

Threaded
Backlight type

LED

Number of keys

hotel card
Shape

Square
Fixing

claws screws
Shutdown delay [s]

3
Type

Hotel
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Backlight

Yes
load power [W]

Incandescent: 3200 Induction, fluorescent: 750
For the frame system

Yes
PKWIU

27.33.11.0

Autres données techniques

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with complete housing
Push button switch

No
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Lacquered
Colour

Other
Label space/information surface

No
Function lighting

Orientation
Suitable for degree of protection (IP)

IP20
Rated current

16 A
Feedback-signal contact

No
Washing machine switch

No
Device height

75 mm
Built-in depth

25 mm

Method of operation

Hotel card
Number of modules (module system)

1
Number of rockers

0
Type of fastening

Mounting with claw and screw
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

1035
Illumination

Yes
Type of lighting

Glow lamp
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Device width

75 mm
Device depth

40 mm

Détails du fabricant

Producteur

OSPEL S.A.
Adresse

42-436 Wierbka Główna 128 Polska
E-mail

ospel@ospel.com.pl

Emballage en vrac

Une sorte de paquet	Pudełko
Quantité	5 pcs.
Largeur (m)	0,162
Longueur (m)	0,237
Profondeur (m)	0,090
