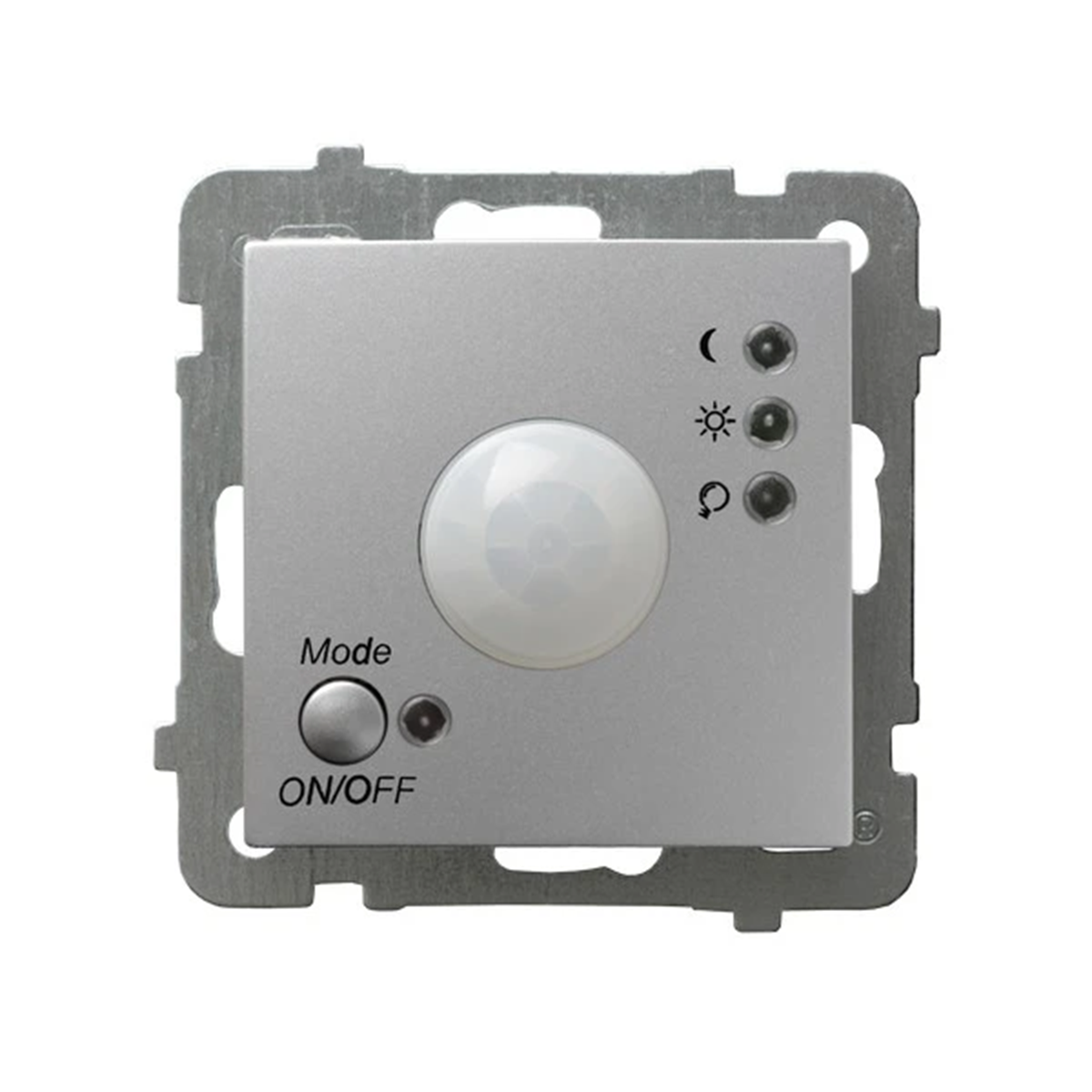

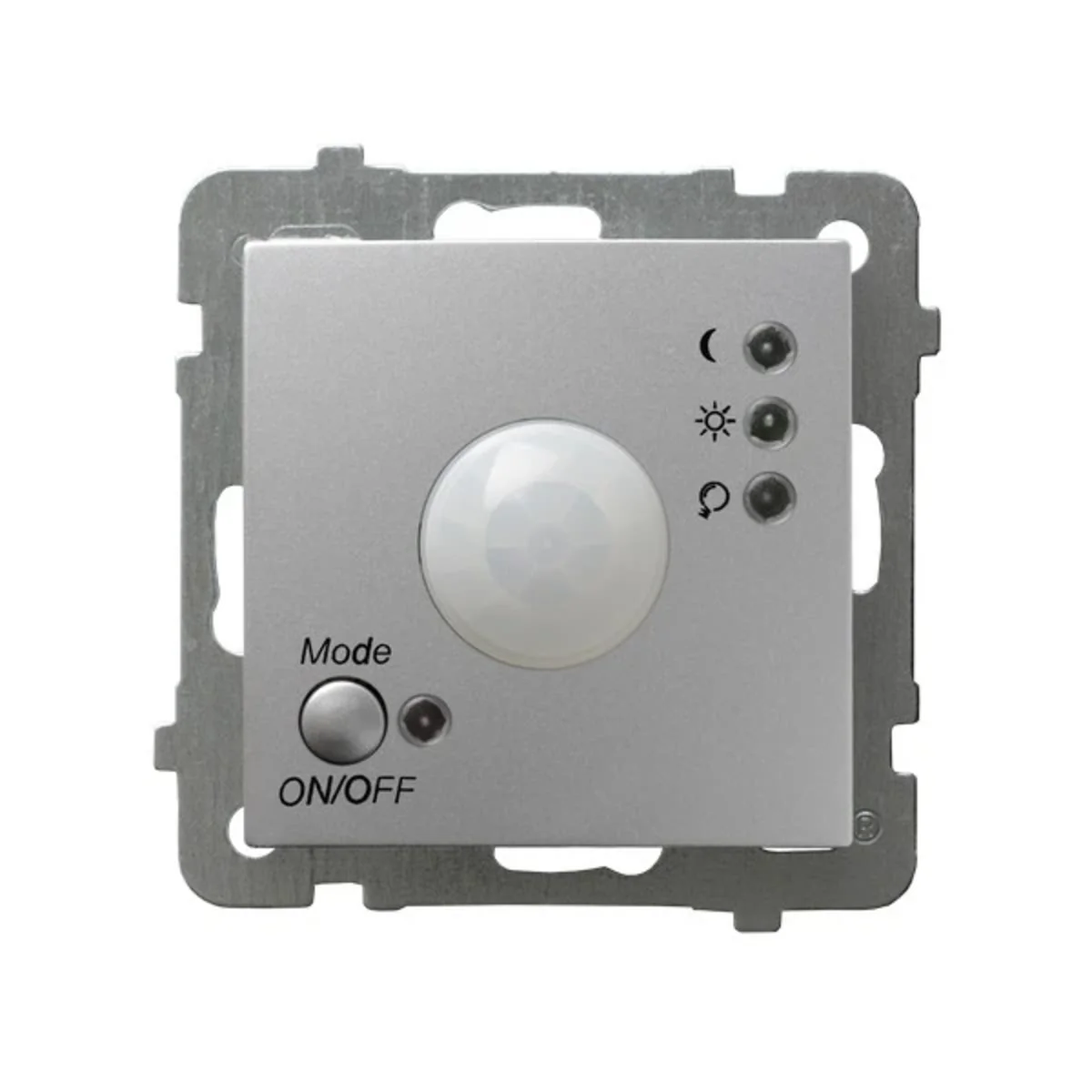

AS Electronic motion detector silver ŁP-16G/M/18

The electronic motion sensor is used to automatically switch on the light sources and signaling equipment (e.g. in home alarm systems) after detecting movement in the coverage area and automatically switch off after the set time has elapsed.

The design of the sensor allows it to be used to build serial installations consisting of any number of sensors, as well as with other standard switches for household use (e.g. unipolar or alternating). The sensor is controlled by pressing the button located in the lower left corner of the outer cover marked MODE/ON/OFF. It is possible to set one of five work modes:

1. 1. OFF – switched off mode (the sensor is completely switched off). The relay diode (next to the bulb pictogram) is green.

   2. ON – active mode (the sensor turns on the lighting permanently – acts as a single-pole switch) the relay diode (next to the bulb pictogram) is red.

   3. MOTION - DAY - a mode in which the lighting is switched on when the sensor detects movement, regardless of the degree of light intensity in the room in which it is installed sensor (day or night). The “motion”mode LED (next to the sun pictogram) lights up red. included.

   4. MOTION - NIGHT – a mode in which the lighting is switched on when motion is detected by the sensor, but only when the light intensity in the room where If the sensor is installed, it falls below a certain level. This level is defined by the user by turning the adjustment knob (labelled LUX ) located on the control module under the outer cover of the sensor on the left. The adjustment range is from 0 to 1000 lux. mode, the “movement –night” LED (next to the moon pictogram) lights up red, while the relay LED (next to the bulb pictogram) lights up green if the lighting is off or red if the lighting is on.

      < /li>

   5. RANDOM - presence simulation mode – is a form of protecting the room against burglary during a long-term absence of the user. min will turn on the lighting for the time set by the user, multiplied by a random multiplier from the range of 1÷3. Adjustment of the time setting is made using the knob (described as TIME) located on the control module under the outer cover on the right side. The adjustment range is within 3s÷ ;5min During this mode, the 2 LEDs (by the sun and moon pictograms) blink red alternately.

Control button lock function

If the product is installed in a public facility (e.g. a hotel), the building administrator often does not want random people to be able to change the setting of the motion sensor's operating mode. control button lock function. It is initiated by pressing and holding the above button for about 10s. During this setting, the sensor will not react to pressing the button for a short time. /p>
