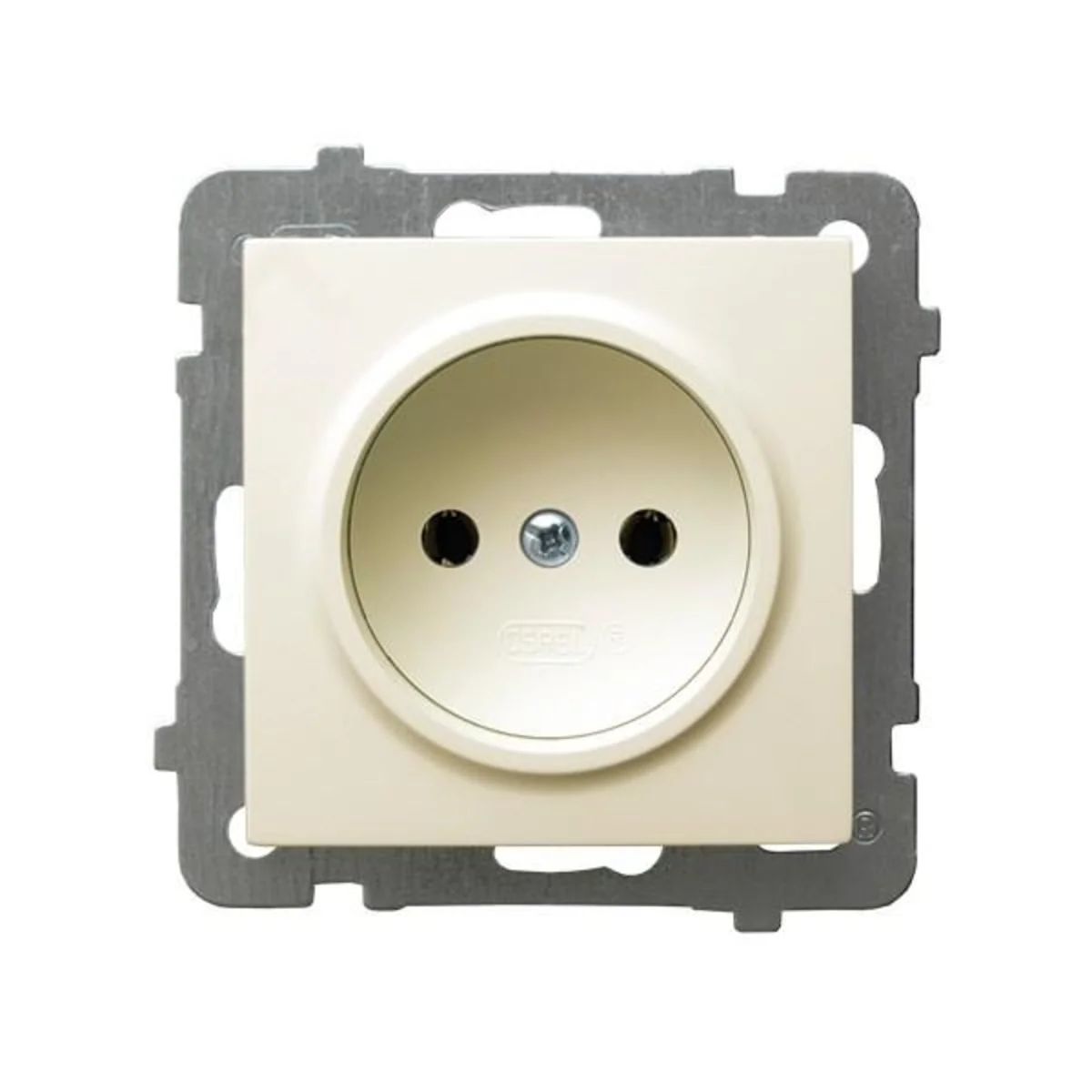

AS Ecru single socket GP-1G/M/27

local index:
MEE470OSPE
Catalog No:
GP-1G/M/27
EAN code:
5907577452179
Manufacturer: OSPEL
Depth [mm]: 39
Number of sockets: 1
Color: Beige
Price:
2,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electric socket from the As series, from the manufacturer Ospel. The product part number is GP-1G/M/27.



FEATURES

  • Single.
  • Ungrounded.
  • Thread terminals.
  • To be equipped with frame .
  • Color ecru.
  • Rated current 16A.
  • Rated voltage 230V< /strong>.
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 71  x 71 mm (height x width).



SERIES DESCRIPTION

As  is a geometrical form broken with delicate curvatures of frames. It is a combination of dynamic design with neutral colors that will work in any interior. The highest quality materials and timeless design allowed us to create a product that will decorate your interiors for many years.

As an ideal solution for people who value true classics. Both the main elements and the supplementary frames are based on a square with strongly outlined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the determined, which is why the color options are also limited and strongly correspond to the classics.

Technical data

  • Depth [mm]
    39
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    AS
  • Width [mm]
    71
  • Ground
    Lack
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Ecru
  • Mounting depth [mm]
    26
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    75 mm
  • Protective contact
    No
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    1013
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    75 mm
  • Device depth
    37 mm

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
