AS Double stair connector without frame, black metallic ŁP-10G/M/33

Index local:
MMS162OSPE
Numéro de catalogue:
ŁP-10G/M/33
Code EAN:
5907577493356
Producteur: OSPEL
Depth [mm]: 40
Number of keys: 2
Color: Black
Prix:
39,78 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à une semaine
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

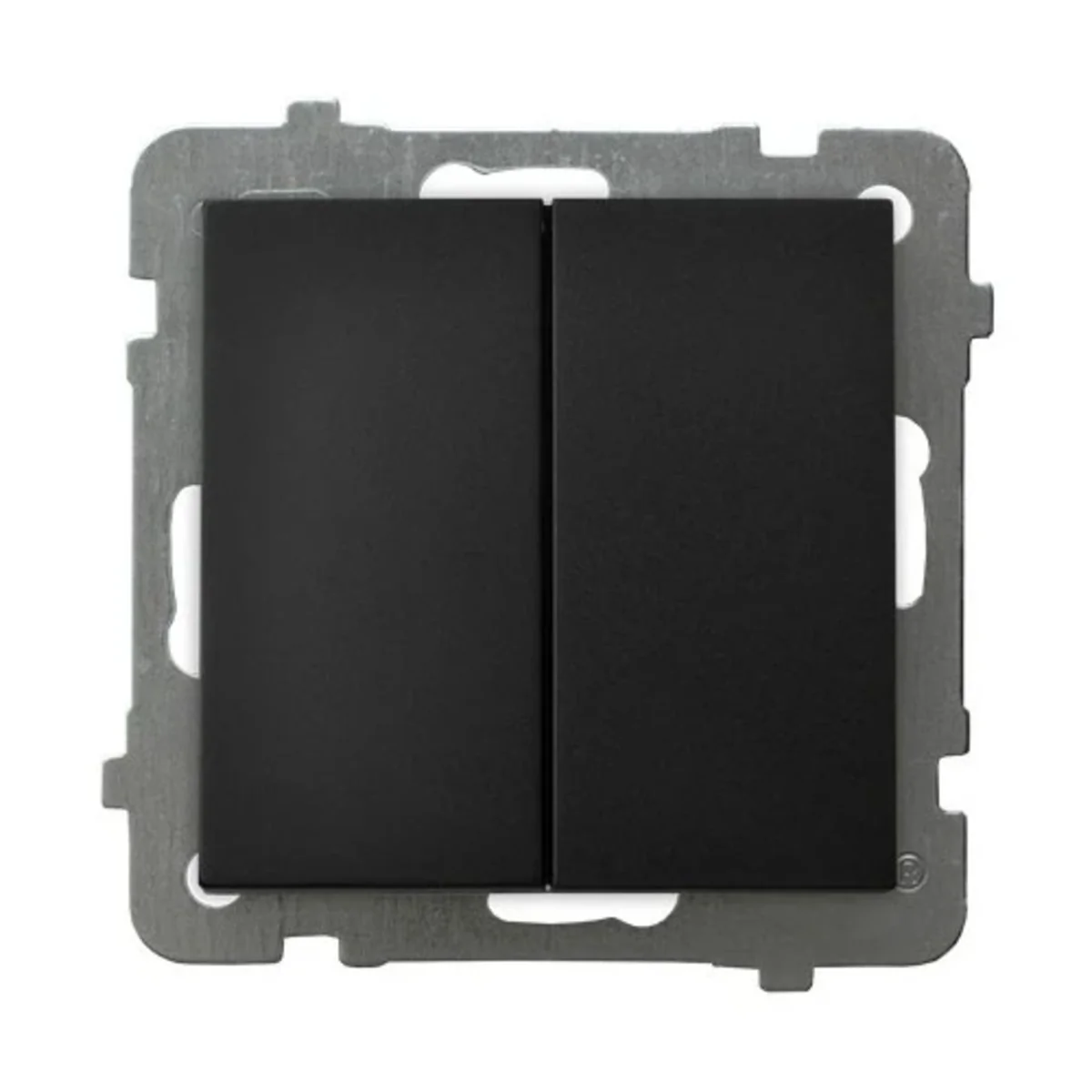

Staircase switch from the As series, from the manufacturer Ospel.

FEATURES

  • Double.
  • Module without frame.
  • Thread terminals.
  • Rated current10AX.
  • Rated voltage 230V.
  • Flush mounting.
  • Protection degree IP20.
  • Dimensions: 71 x 71 mm (height x width).

DESCRIPTION SERIES

The As series features a geometric form offset by the delicate curves of the frames. It combines dynamic design with neutral colors to complement any interior. High-quality materials and a timeless design have allowed us to create a product that will adorn your interior for many years.

As is the perfect solution for those who appreciate true classics. Both the main elements and the complementary frames are based on a square with sharp corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the determined, which is why the color options are limited and strongly correspond to the classics.

Données techniques

  • Depth [mm]
    40
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    25
  • For the frame system
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Exact material
    Plastic Metal

Autres données techniques

  • Wiring system
    2-pole switch
  • Assembly arrangement
    Basic element with complete housing
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Lacquered
  • Colour
    Black
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Device width
    71 mm
  • Device depth
    40 mm

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 4 pcs.
Largeur (m) 0,710
Longueur (m) 0,710
Profondeur (m) 0,250
