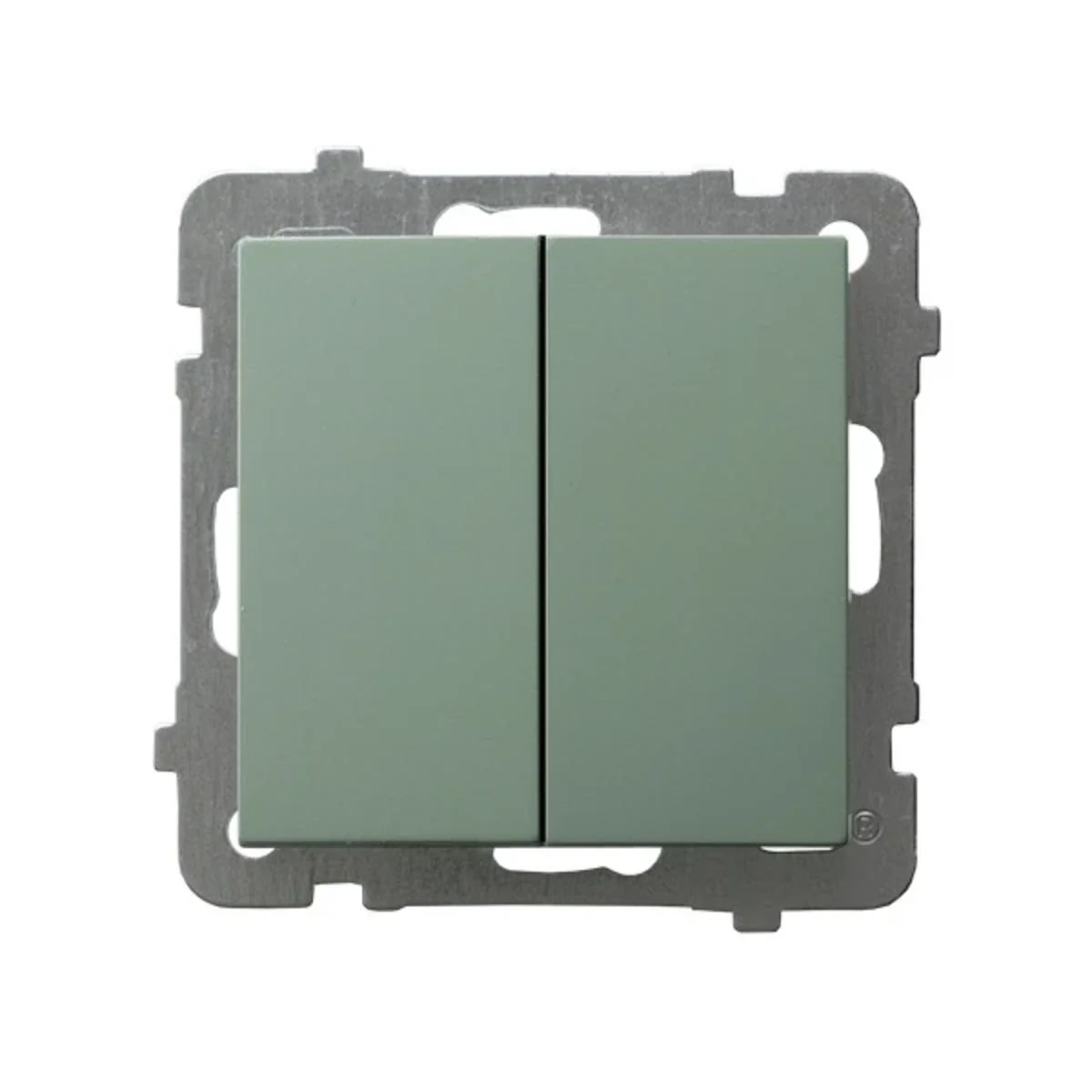

AS Double stair connector, matt green ŁP-10G/M/84

Místní index:
MMS164OSPE
Katalogové číslo.:
ŁP-10G/M/84
EAN kód:
5906729037851
Výrobce: OSPEL
Depth [mm]: 40
Number of keys: 2
Color: Green
Cena:
39,78 zł
gross / kusů.
(včetně DPH 23%)
do jednoho týdne
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Staircase switch from the As series, from the manufacturer Ospel.

FEATURES

  • Double.
  • Module without frame.
  • Thread terminals.
  • Rated current10AX.
  • Rated voltage 230V.
  • Flush mounting.
  • Protection degree IP20.
  • Dimensions: 71 x 71 mm (height x width).

DESCRIPTION SERIES

The As series features a geometric form offset by the delicate curves of the frames. It combines dynamic design with neutral colors to complement any interior. High-quality materials and a timeless design have allowed us to create a product that will adorn your interior for many years.

As is the perfect solution for those who appreciate true classics. Both the main elements and the complementary frames are based on a square with sharp corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the determined, which is why the color options are limited and strongly correspond to the classics.

Technické údaje

  • Depth [mm]
    40
  • Color
    Green
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Matte green
  • Mounting depth [mm]
    25
  • For the frame system
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Exact material
    Plastic Metal

Další technické údaje

  • Wiring system
    Alternating-/alternating switch
  • Number of modules (module system)
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Lacquered
  • Colour
    Green
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Device height
    71 mm
  • Built-in depth
    25 mm
  • Method of operation
    Other
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • Label space/information surface
    No
  • Nominal voltage
    250 V
  • Device width
    71 mm
  • Device depth
    40 mm
  • Min. depth of built-in installation box
    60 mm

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Pudełko
Množství 4 kusů.
Šířka (m) 0,710
Délka (m) 0,710
Hloubka (m) 0,250
