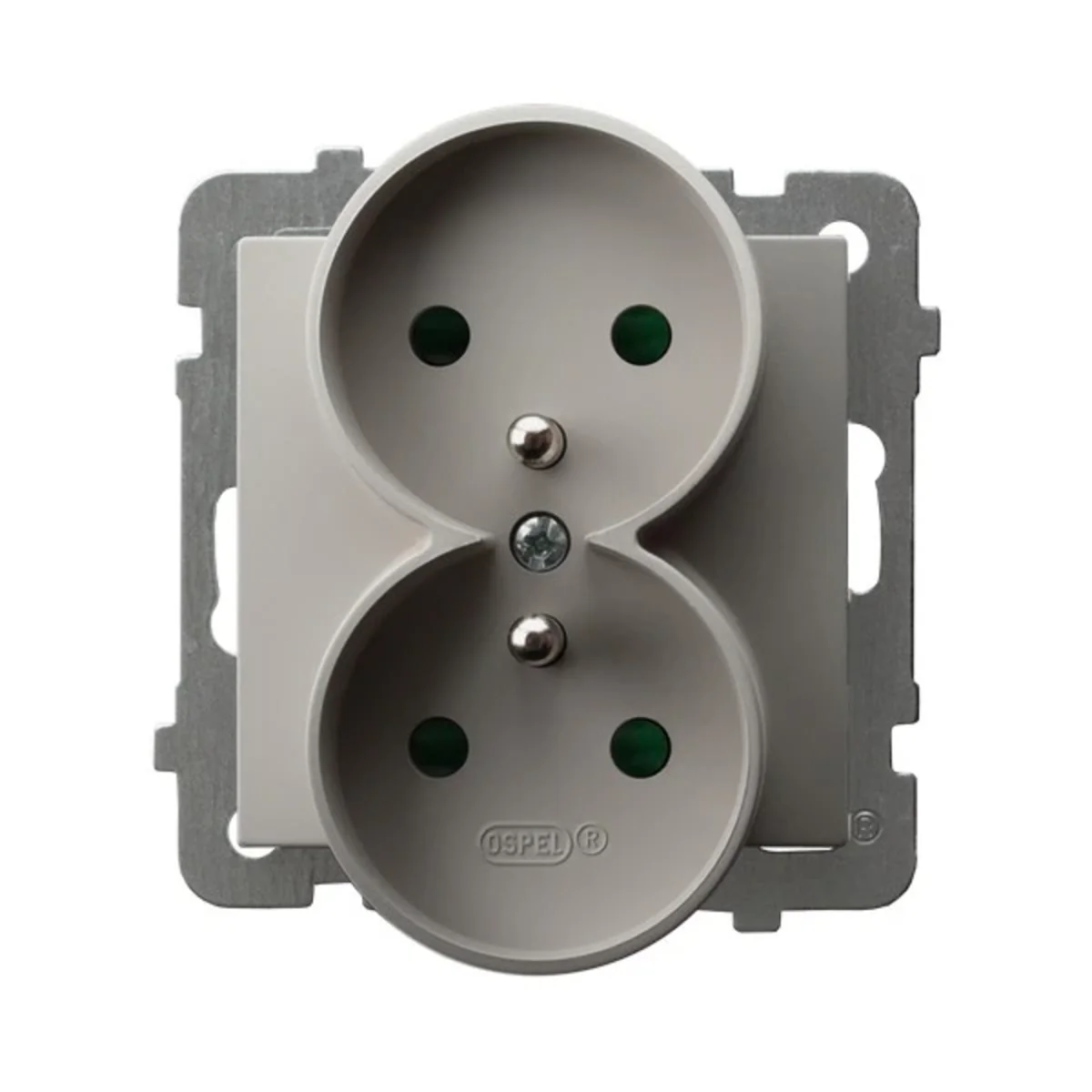

AS Double socket with grounding and current path shutters, cashmere GP-2GRZP/M/82

Místní index:
MEE788OSPE
Katalogové číslo.:
GP-2GRZP/M/82
EAN kód:
5906729037080
Výrobce: OSPEL
Depth [mm]: 48
Number of sockets: 2
Color: Beige
Cena:
30,36 zł
gross / kusů.
(včetně DPH 23%)
do jednoho týdne
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Double electrical socket, grounded, with current path shutters.

SERIES DESCRIPTION

The As series features a geometric form broken by the delicate curves of the frames. It combines dynamic design with neutral colors, perfect for any interior. The highest quality materials and timeless design have allowed us to create a product that will adorn your interior for many years.

As is the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with sharp corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly correspond to the classic style.

Technické údaje

  • Depth [mm]
    48
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    AS
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    varnishing
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Cashmere
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes

Další technické údaje

  • Model
    Multi-standard socket
  • Number of socket outlets
    2
  • Imprint/indication
    None
  • Colour
    Other
  • Transparent
    No
  • With function lighting
    No
  • Special power supply
    None
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • Nominal voltage
    250 V
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • With signal lamp
    No
  • Number of modules (module system)
    1
  • With hinged lid
    No
  • Metallic colour
    No
  • Lockable
    No
  • With orientation lighting
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Nominal current
    16 A
  • Device width
    71 mm
  • Device depth
    48 mm

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Pudełko
Množství 4 kusů.
Šířka (m) 0,710
Délka (m) 0,710
Hloubka (m) 0,220
