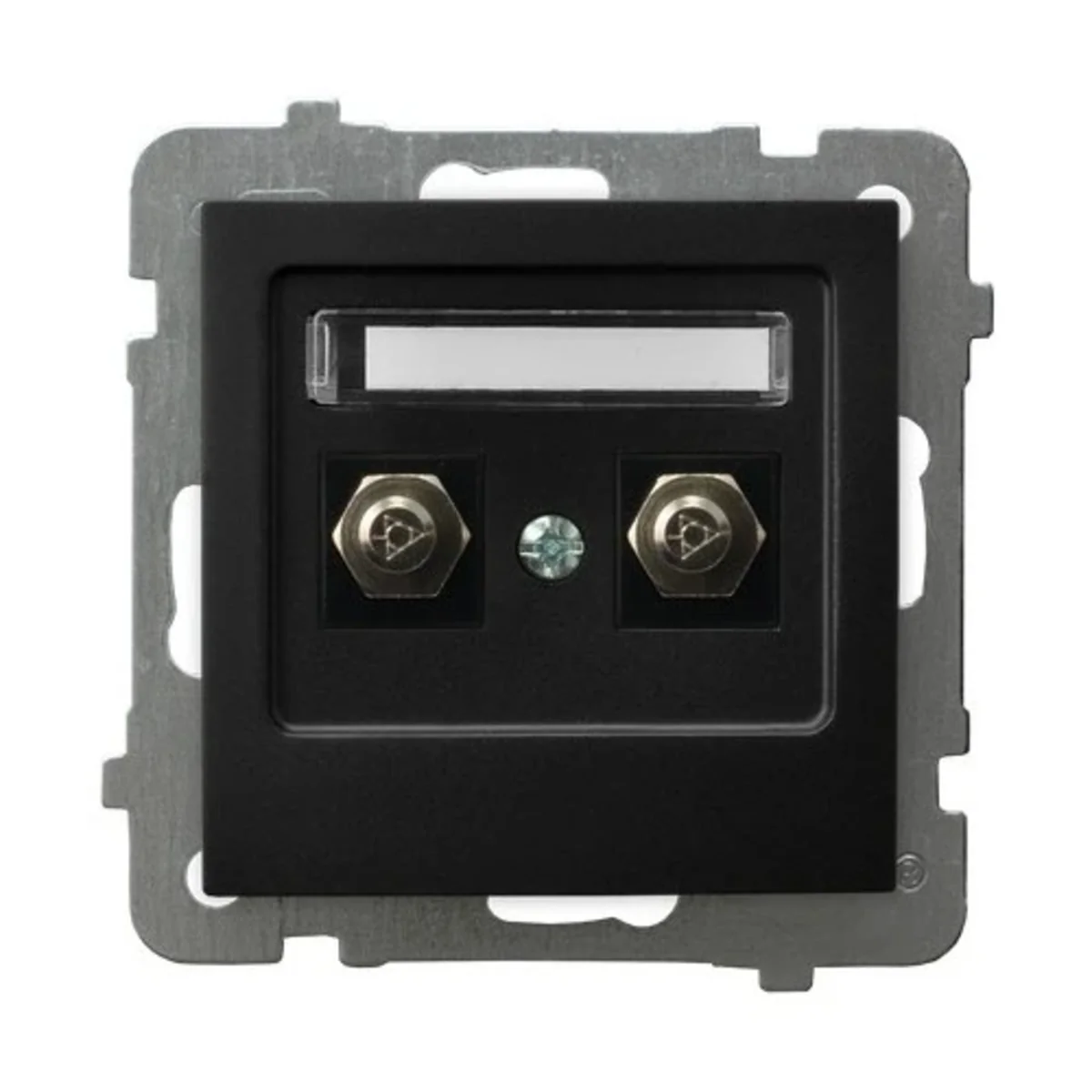

AS Double equipotential socket, black metallic GPE-2G/M/33

Index local:
MES054OSPE
Numéro de catalogue:
GPE-2G/M/33
Code EAN:
5906729017037
Producteur: OSPEL
Depth [mm]: 45
Number of sockets: 2
Color: Black
Prix:
137,40 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à une semaine
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Equipotential socket from the As series. Designed for devices that require potential equalization for proper operation. Meets the requirements of DIN 42801, IEC 60364-7-710.

SERIES DESCRIPTION

The As series is a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work in any interior. The highest quality materials and timeless design have allowed us to create a product that will decorate your interior for many years.

As is the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with sharply defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly reflect the classic style.

Données techniques

  • Depth [mm]
    45
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Equipotential
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Mounting depth [mm]
    20
  • For the frame system
    Yes
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    AS
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Terminal type
    Threaded
  • Exact material
    Plastic Metal

Autres données techniques

  • Assembly arrangement
    Basic element with complete housing
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Black
  • Model
    Socket outlet 2-position
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    9005

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 4 pcs.
Largeur (m) 0,710
Longueur (m) 0,710
Profondeur (m) 0,200
