AS Double cross connector ecru ŁP-19G/M/27

Index local:
MMK085OSPE
Numéro de catalogue:
ŁP-19G/M/27
Code EAN:
5906729009247
Producteur: OSPEL
Depth [mm]: 40
Number of keys: 2
Color: Beige
Prix:
59,45 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à une semaine
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

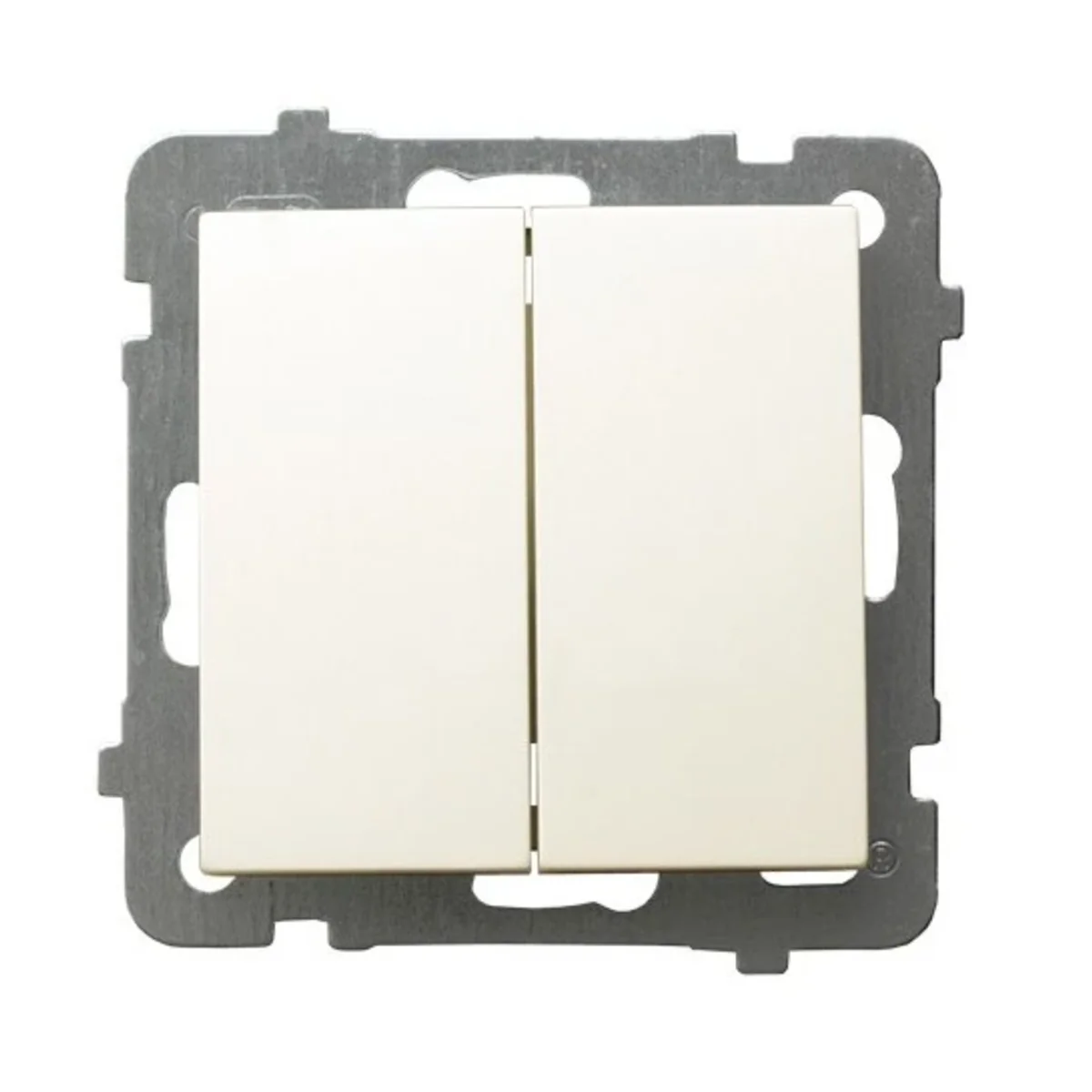

Double cross connector from the As series, from the manufacturer Ospel.

SERIES DESCRIPTION

Products from the As series are distinguished by delicately curved frames.Double cross connector characterizes the features of this unique series.

Données techniques

  • Depth [mm]
    40
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Ecru
  • Mounting depth [mm]
    25
  • For the frame system
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Cross
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Exact material
    Plastic Metal

Autres données techniques

  • Assembly arrangement
    Basic element with complete housing
  • Method of operation
    Rocker
  • Number of modules (module system)
    1
  • Rated current
    10 A
  • With light source
    No
  • Connection type
    Push-in clamp
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • RAL-number (similar)
    1013
  • Label space/information surface
    No
  • Device width
    71 mm
  • Device depth
    39 mm
  • Model
    Other
  • Contactless type
    No
  • Nominal voltage
    250 V
  • With lighting
    No
  • With signal lamp
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Anti-bacterial treatment
    No
  • Colour
    Other
  • Transparent
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 10 pcs.
Largeur (m) 0,710
Longueur (m) 0,710
Profondeur (m) 0,240
