AS Double computer socket cat. 5eMMC cashmere GPK-2G/K/M/82

Index local:
MEI161OSPE
Numéro de catalogue:
GPK-2G/K/M/82
Code EAN:
5906729037271
Producteur: OSPEL
Depth [mm]: 33
Category: 5e
Color: Beige
Prix:
98,26 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à une semaine
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

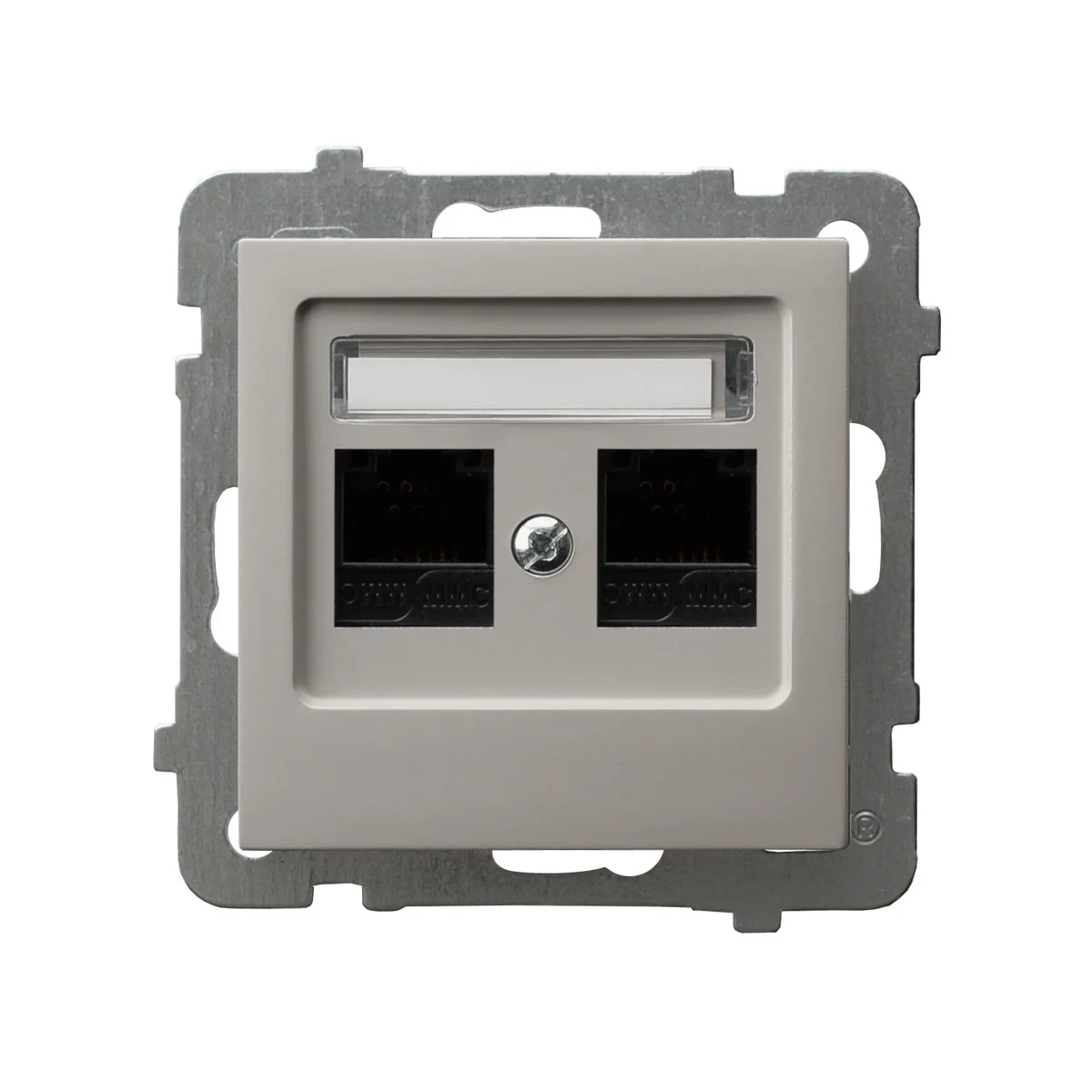

Double RJ-45 computer socket category 5e MMC. It is used to connect two unshielded twisted-pair category 5e signal cables. The data transfer speed is 1Gb/s.

SERIES DESCRIPTION

The As series - a geometric form broken by delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work in any interior. The highest quality materials and timeless design have allowed us to create a product that will adorn your interior for many years.

As  ...

Données techniques

  • Depth [mm]
    33
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Cashmere
  • Terminal type
    Threadless MMC
  • For the frame system
    Yes
  • Dust cover
    NO
  • Category
    5e
  • Shape
    Square
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    AS
  • Width [mm]
    71
  • Version
    UTP
  • Surface protection
    varnishing
  • Mounting depth [mm]
    22
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    2
  • Exact material
    Plastic Metal

Autres données techniques

  • Surface mounting
    No
  • Duct installation
    No
  • Type of fastening
    Screwing
  • Type of connector
    2x RJ45 8(4)
  • With label space
    Yes
  • With dust cover
    No
  • Degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Number of modules (module system)
    1
  • Flush-mounted installation
    Yes
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with complete housing
  • Colour
    Other
  • Outlet direction
    Straight
  • With terminal resistor
    No
  • Device width
    71 mm
  • Device depth
    33 mm

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 4 pcs.
Largeur (m) 0,710
Longueur (m) 0,710
Profondeur (m) 0,220
