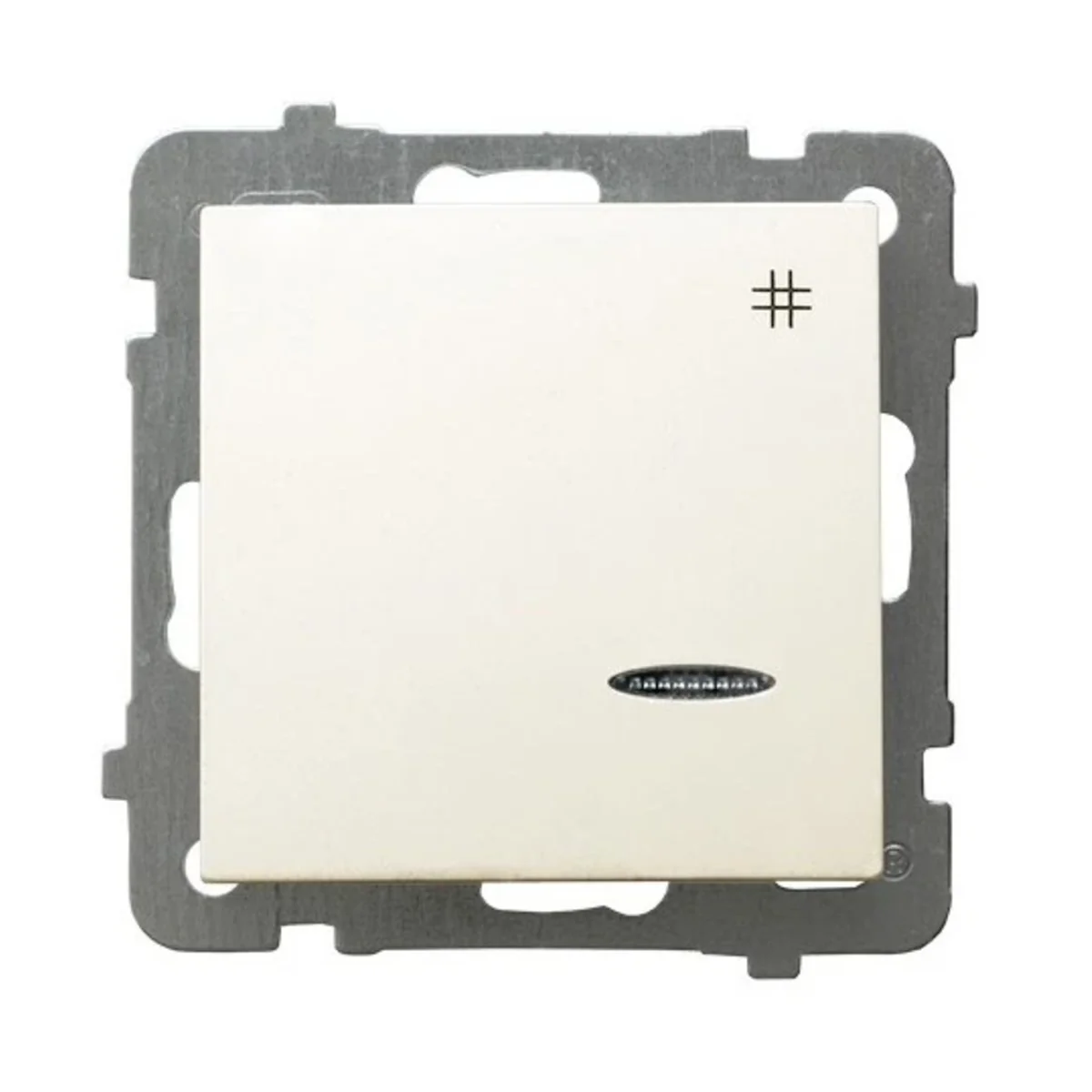

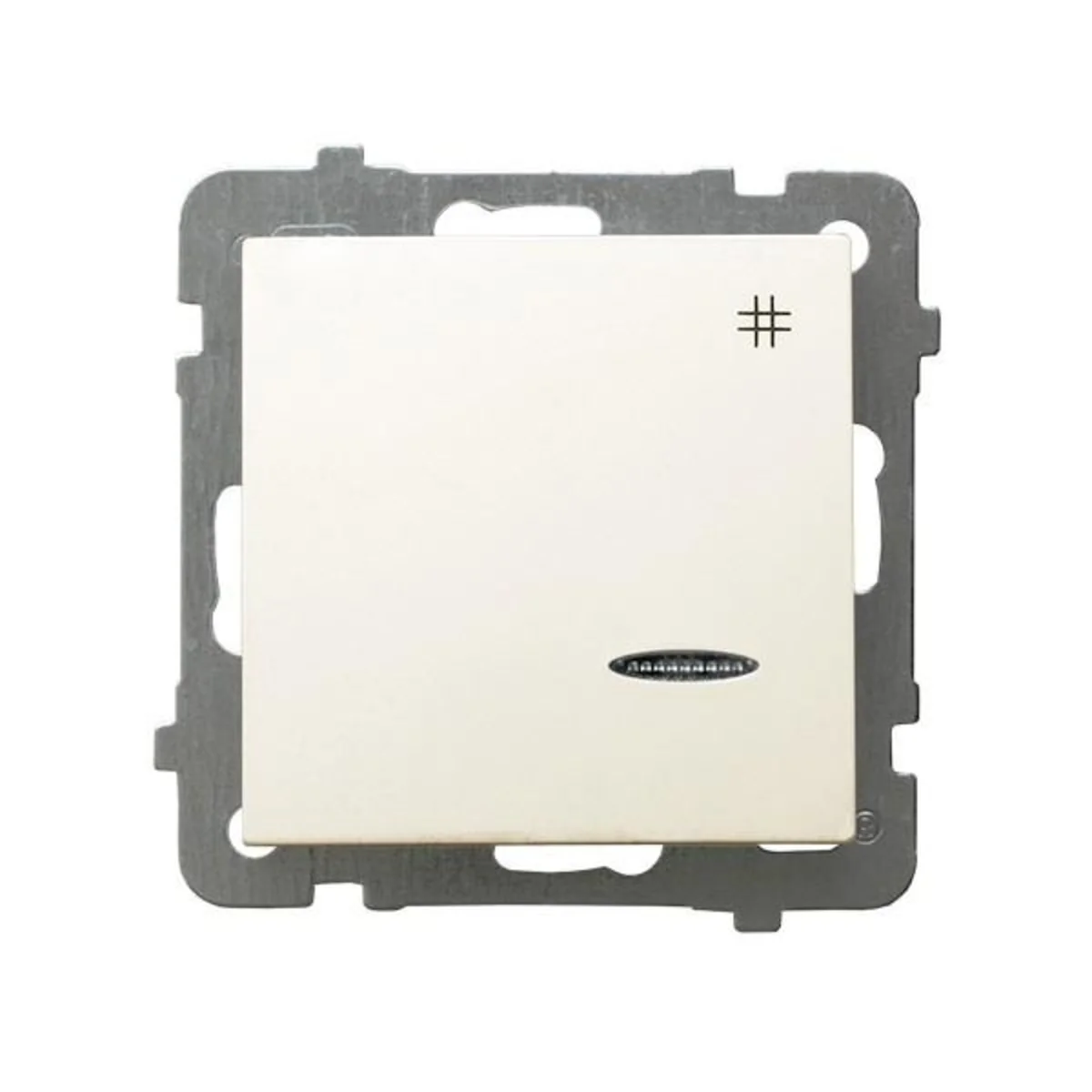

AS Cross connector with backlit orange ecru, without frame ŁP-4GS/M/27
local index:
MMK015OSPE
Catalog No:
ŁP-4GS/M/27
EAN code:
5907577452001
Price:
7,26 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
An illuminated cross connector from the As series, from Ospel. The product catalog number is ŁP-4GS/M/27.
SERIES DESCRIPTION
Products from the As are distinguished by delicate curves of the frames. The cross connector characterize the features of this unique series.
Technical data
-
Depth [mm]40
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyAS
-
Width [mm]71
-
Height [mm]71
-
Accurate colorEcru
-
Mounting depth [mm]25
-
For the frame systemYes
-
Backlight typeLTS lamp
-
PKWIU27.33.11.0
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeCross
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
BacklightYes
-
Terminal typeThreaded
-
Exact materialPlastic Metal
-
Backlight colorOrange
Other technical data
-
Wiring systemIntermediate switch
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height75 mm
-
Built-in depth25 mm
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)1013
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typePush-in clamp
-
Device width75 mm
-
Device depth40 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
