AS Cross connector with backlight, white, without frame ŁP-4GS/M/00

Name: AS Cross connector with backlight, white, without frame
Brand: OSPEL
SKU: MMK013OSPE
Price: 7.91 PLN

Index local:

MMK013OSPE

Numéro de catalogue:

ŁP-4GS/M/00

Code EAN:

5907577451103

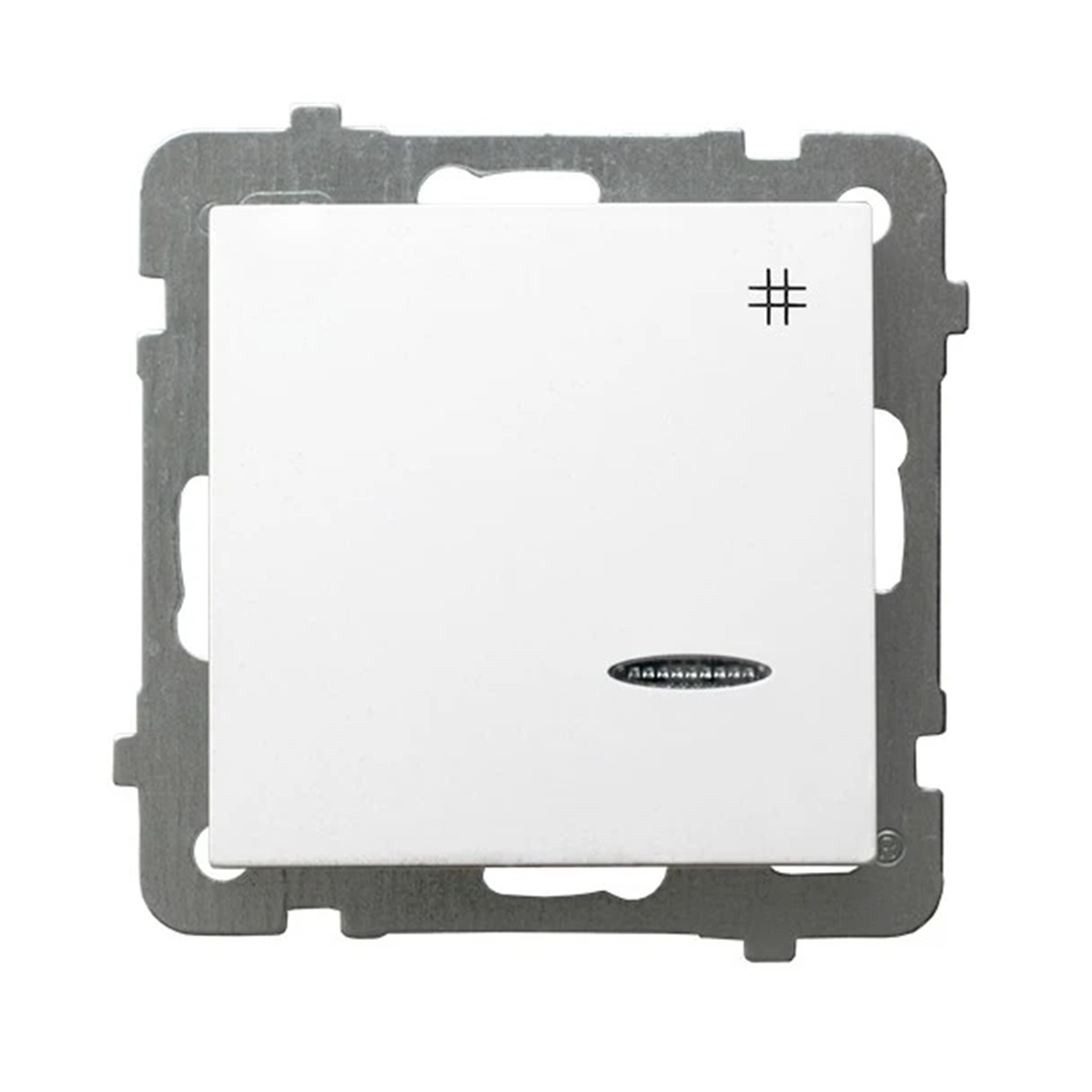

AS Cross connector with backlight, white, without frame

Cliquer sur la photo pour l'agrandir

Producteur: OSPEL

Depth [mm]: 40

Number of keys: 1

Color: White

Voir la description complète

Prix:

7,91 €

gross / pcs.

(y compris la TVA 23%)

Livraison en 3h

jusqu'à 2 semaines (jours ouvrables)

Ramassage en 1h

Quantité pcs.

(plusieurs:

1

)

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

An illuminated cross connector from the As series, from Ospel. The product catalog number is ŁP-4GS/M/00.

SERIES DESCRIPTION

Products from the As are distinguished by the delicate curvature of the frames. The cross connector characterizes the features of this unique series.

Données techniques

Depth [mm]

40
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

AS
Width [mm]

71
Height [mm]

71
Backlight

Yes
Terminal type

Threaded
Exact material

Plastic Metal
Backlight color

Orange

Number of keys

1
Shape

Square
Fixing

claws screws
Rated voltage [V]

230
Type

Cross
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Mounting depth [mm]

25
For the frame system

Yes
Backlight type

LTS lamp
PKWIU

27.33.11.0

Autres données techniques

Wiring system

Intermediate switch
Assembly arrangement

Basic element with complete housing
Push button switch

No
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Label space/information surface

No
Function lighting

Orientation
Suitable for degree of protection (IP)

IP20
Rated current

16 A
Feedback-signal contact

No
Washing machine switch

No
Device height

75 mm
Built-in depth

25 mm

Method of operation

Rocker/button
Number of modules (module system)

1
Number of rockers

1
Type of fastening

Mounting with claw and screw
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9003
Illumination

Yes
Type of lighting

Glow lamp
Nominal voltage

250 V
Switching current for fluorescent lamps

16 AX
Connection type

Push-in clamp
Device width

75 mm
Device depth

40 mm

Détails du fabricant

Producteur

OSPEL S.A.
Adresse

42-436 Wierbka Główna 128 Polska
E-mail

ospel@ospel.com.pl

Emballage en vrac

Une sorte de paquet	Pudełko
Quantité	10 pcs.
Largeur (m)	0,162
Longueur (m)	0,237
Profondeur (m)	0,090
