AS Cross connector white, frameless ŁP-4G/M/00
Indice locale:
MMK009OSPE
Numero di catalogo:
ŁP-4G/M/00
Codice EAN:
5907577451097
31
73
zł
gross / pezzi
(inclusa IVA 23%)
Disponibilità
Dostępne 1 015 pezzi
Verificate
Odbiór!
Odbierz w godzinę!
Dettagli
Dostępność w oddziale
Scegliete il vostro grossista
Selezionare
Quantità pezzi
(multiplo:
1
)
Descrizione del prodotto

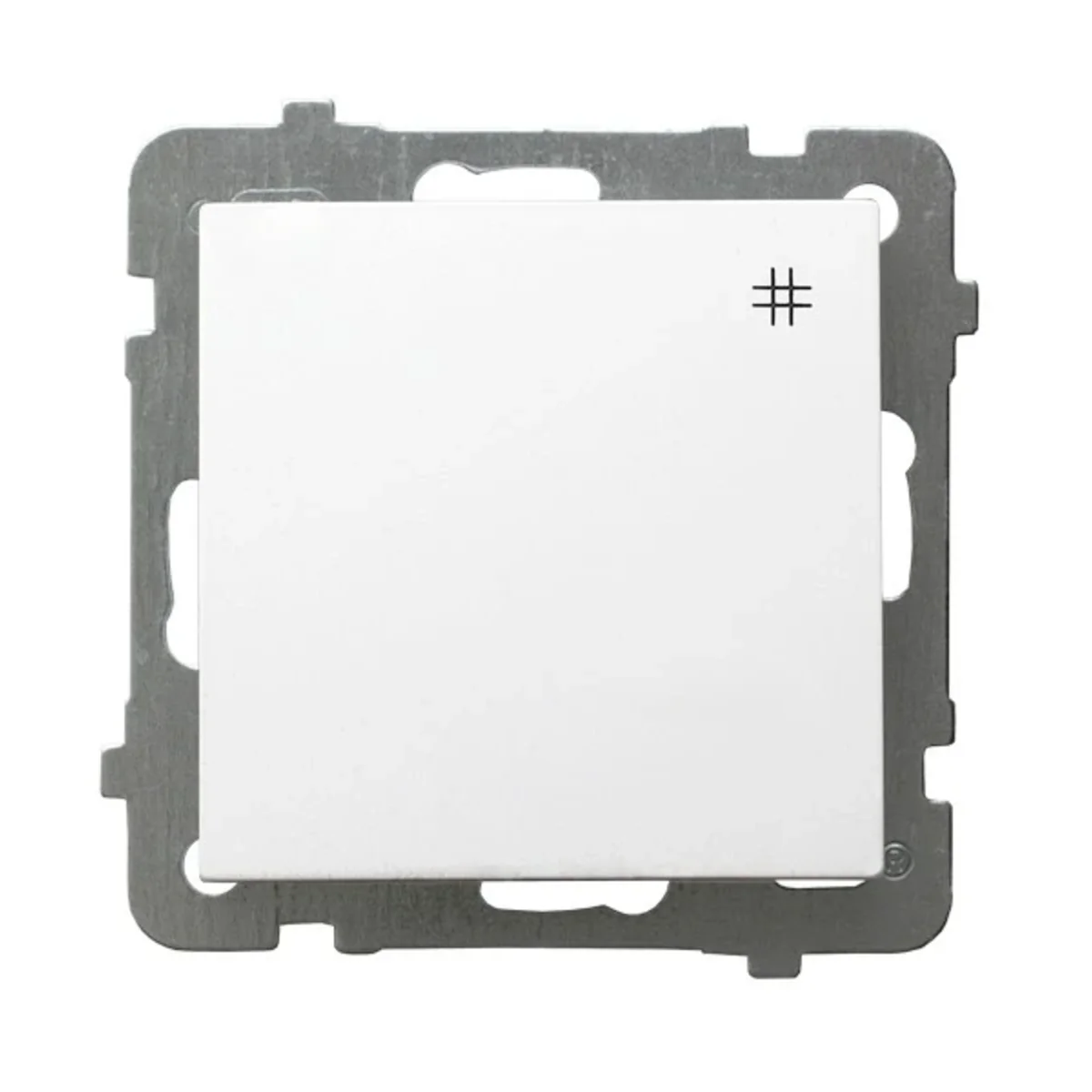

Cross connector from the As series, from Ospel. The product catalog number is ŁP-4G/M/00.
SERIES DESCRIPTION
Products from the As are distinguished by delicate curves of the frames. The cross connector characterize the features of this unique series.
Dati tecnici
-
Depth [mm]40
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyAS
-
Width [mm]71
-
Height [mm]71
-
BacklightNO
-
Terminal typeThreaded
-
Exact materialPlastic Metal
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeCross
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
Mounting depth [mm]25
-
For the frame systemYes
-
PKWIU27.33.11.0
Altri dati tecnici
-
Wiring systemIntermediate switch
-
Assembly arrangementBasic element with complete housing
-
Push button switchYes
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
Label space/information surfaceNo
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height75 mm
-
Built-in depth25 mm
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9003
-
IlluminationNo
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typePush-in clamp
-
Device width75 mm
-
Device depth40 mm
-
Min. depth of built-in installation box60 mm
Dettagli del produttore
-
ProduttoreOSPEL S.A.
-
Indirizzo42-436 Wierbka Główna 128 Polska
-
Email
Imballaggio sfuso
| Una specie di pacchetto | BX |
| Quantità | 10 pezzi |
| Larghezza (m) | 0,710 |
| Lunghezza (m) | 0,710 |
| Profondità (m) | 0,250 |
