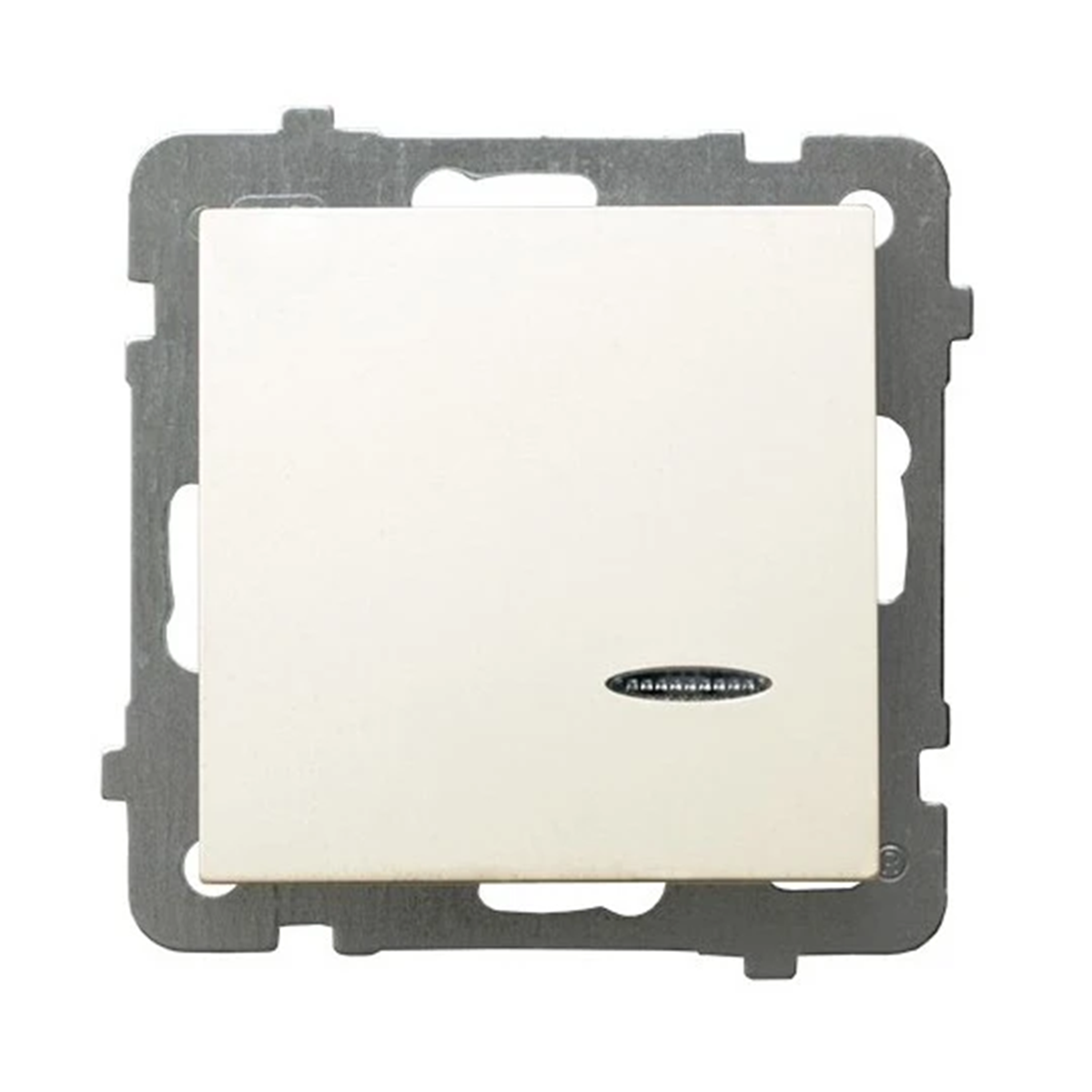

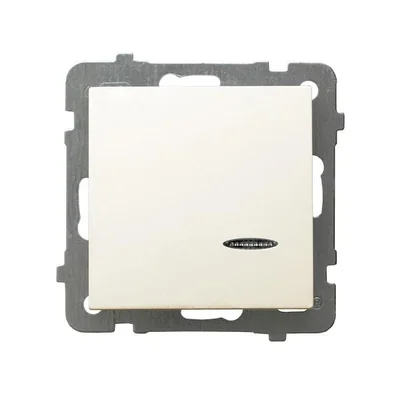

AS Control switch with backlight poma ecru, without frame ŁP-12GS/M/27

local index:
MMP004OSPE
Catalog No:
ŁP-12GS/M/27
EAN code:
5907577452094
Manufacturer: OSPEL
Depth [mm]: 40
Number of keys: 1
Color: Beige
Price:
6,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Control switch with orange backlight, from the As series. Backlight works when the switch is on.

  ;

SERIES DESCRIPTION

As Series – geometric form broken with delicate curvatures of frames. It is a combination of dynamic design with neutral colors that will work in any interior. The highest quality materials and timeless design allowed us to create a product that will decorate your interiors for many years.

As an ideal solution for people who value true classics. Both the main elements and the supplementary frames are based on a square with strongly outlined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the determined, which is why the color options are also limited and strongly correspond to the classics.

Technical data

  • Depth [mm]
    40
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Ecru
  • Mounting depth [mm]
    25
  • For the frame system
    Yes
  • Backlight type
    Activation indication LTS
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Single
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Backlight
    Yes
  • Terminal type
    Threaded
  • Exact material
    Plastic Metal
  • Backlight color
    Orange

Other technical data

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Function lighting
    Illuminated (on)
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    75 mm
  • Built-in depth
    25 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1013
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    75 mm
  • Device depth
    40 mm

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
