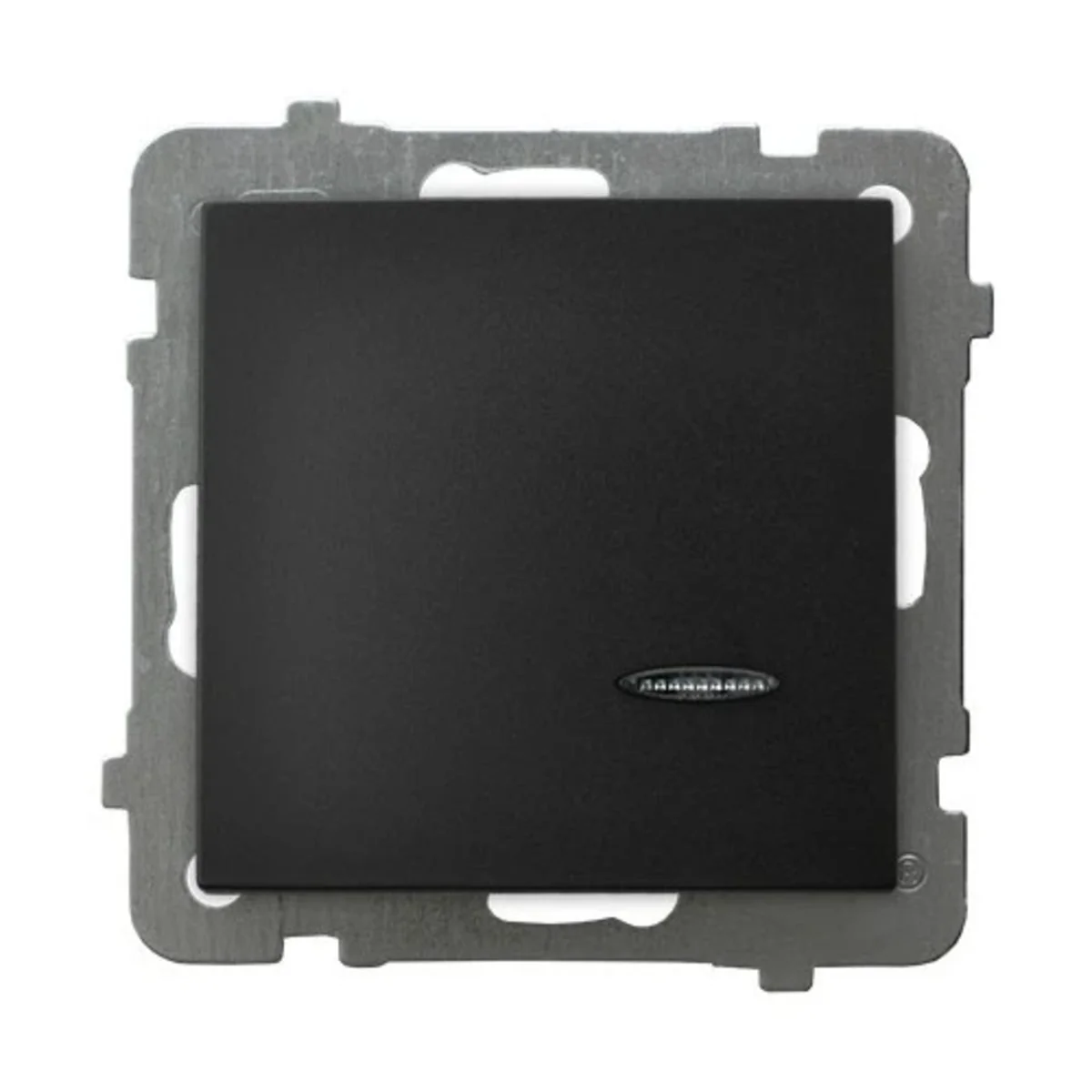

AS Control switch with backlight, black metallic, without frame ŁP-12GS/M/33

Índice local:
MMP133OSPE
Número de catálogo:
ŁP-12GS/M/33
Código EAN:
5906729016627
Fabricante: OSPEL
Depth [mm]: 40
Number of keys: 1
Color: Black
Precio:
36,60 zł
gross / uds.
(IVA incluido 23%)
hasta una semana
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Control switch with orange backlight, from the As series. The backlight works when the switch is on.

SERIES DESCRIPTION

The As series - a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design with neutral colors that will work well in any interior. The highest quality materials and timeless design have allowed us to create a product that will decorate your interior for many years.

As - the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with strongly defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly reflect the classic style.

Datos técnicos

  • Depth [mm]
    40
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    25
  • For the frame system
    Yes
  • Backlight type
    Activation indication LTS
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Single
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    Yes
  • Terminal type
    Threaded
  • Exact material
    Plastic Metal
  • Backlight color
    Orange

Otros datos técnicos

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Lacquered
  • Colour
    Black
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Heating switch
    No
  • Device width
    71 mm
  • Device depth
    40 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • Function lighting
    Other
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Connection type
    Screwed terminal
  • Washing machine switch
    No
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Detalles del fabricante

  • Fabricante
    OSPEL S.A.
  • Dirección
    42-436 Wierbka Główna 128 Polska

Empaquetado a granel

una especie de paquete Pudełko
Cantidad 4 uds.
Ancho (m) 0,710
Longitud (m) 0,710
Profundidad (m) 0,250
