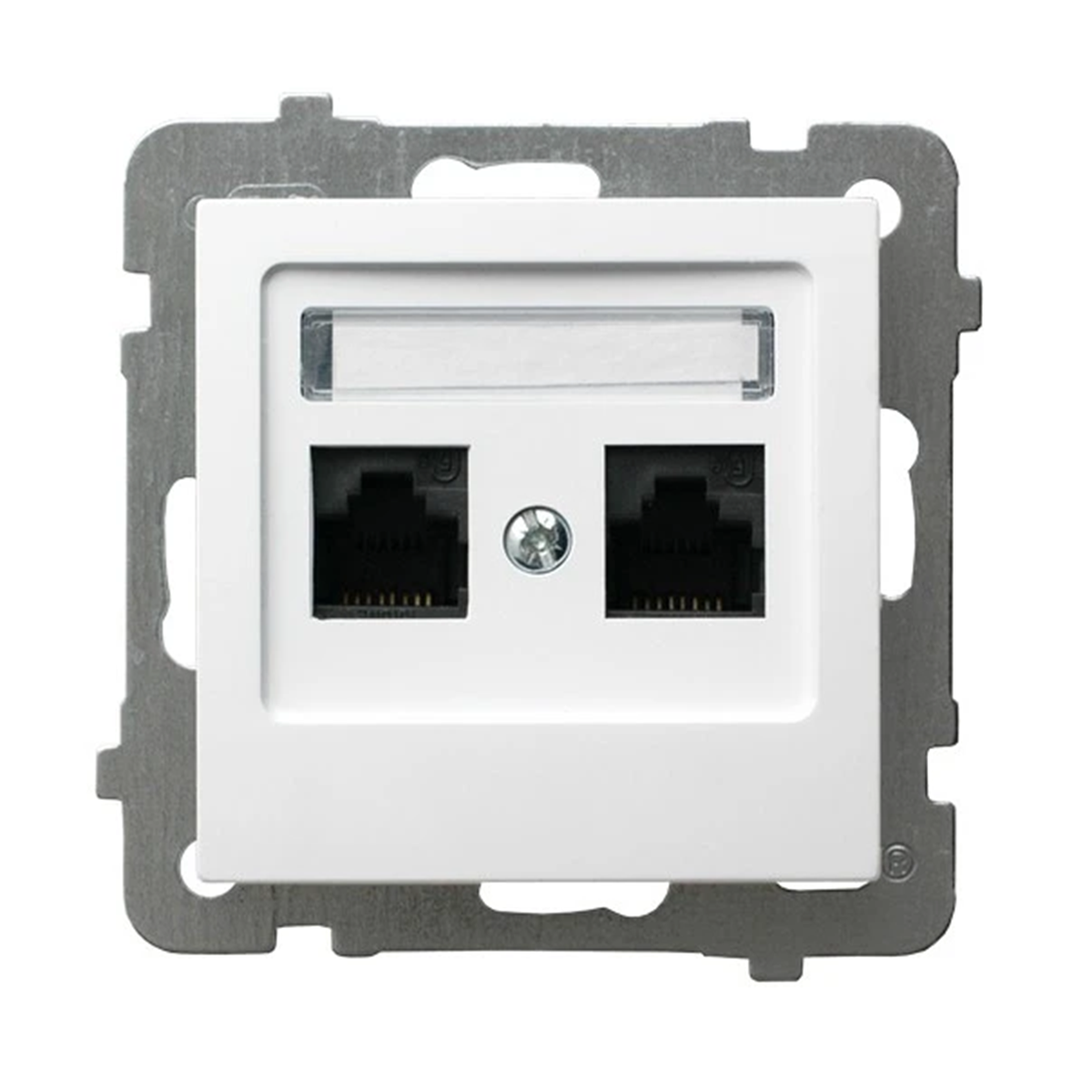

AS Computer socket, double, cat. 5e white, without frame GPK-2G/K/M/00

local index:
MEI065OSPE
Catalog No:
GPK-2G/K/M/00
EAN code:
5907577451684
Manufacturer: OSPEL
Depth [mm]: 33
Category: 5e
Color: White
Price:
19,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Double computer socket RJ-45 category 5e MMC. It is used to connect two signal cables unshielded twisted pair category 5e. The data transfer rate is 1Gb/s.



SERIES DESCRIPTION

As series – geometric form broken with delicate curvatures of frames. It is a combination of dynamic design with neutral colors that will work in any interior. The highest quality materials and timeless design allowed us to create a product that will decorate your interiors for many years.

As an ideal solution for people who value true classics. Both the main elements and the supplementary frames are based on a square with strongly outlined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the determined, which is why the color options are also limited and strongly correspond to the classics.

Technical data

  • Depth [mm]
    33
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Mounting depth [mm]
    22
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    2
  • Exact material
    Plastic Metal
  • Category
    5e
  • Shape
    Square
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    AS
  • Width [mm]
    71
  • Version
    UTP
  • Surface protection
    Natural
  • Terminal type
    Threadless MMC
  • For the frame system
    Yes
  • Dust cover
    NO
  • PKWIU
    26.30.30.0

Other technical data

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with complete housing
  • With buses/couplings
    Yes
  • Category
    5E
  • RAL-number
    9003
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    No
  • Mounting method shielding connection
    None
  • With dust cover
    No
  • Mechanical coding
    No
  • Device width
    75 mm
  • Device depth
    33 mm
  • Duct installation
    No
  • Type of fastening
    Engage (snap)
  • Type of connector
    2x RJ45 8(4)
  • Suitable for number of connectors
    2
  • Colour
    White
  • Connection type
    Other
  • Shielded housing
    No
  • With label space
    Yes
  • Separate strain relief
    No
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    Yes
  • Device height
    75 mm

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,290
Depth (m) 0,090

Files to download
