AS Cashmere Stair Connector ŁP-3G/M/82

local index:
MMS166OSPE
Catalog number:
ŁP-3G/M/82
EAN code:
5906729036731
Manufacturer: OSPEL
Depth [mm]: 40
Number of keys: 1
Color: Beige
Price:
28,98 zł
gross / pcs.
(including VAT 23%)
up to a week
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

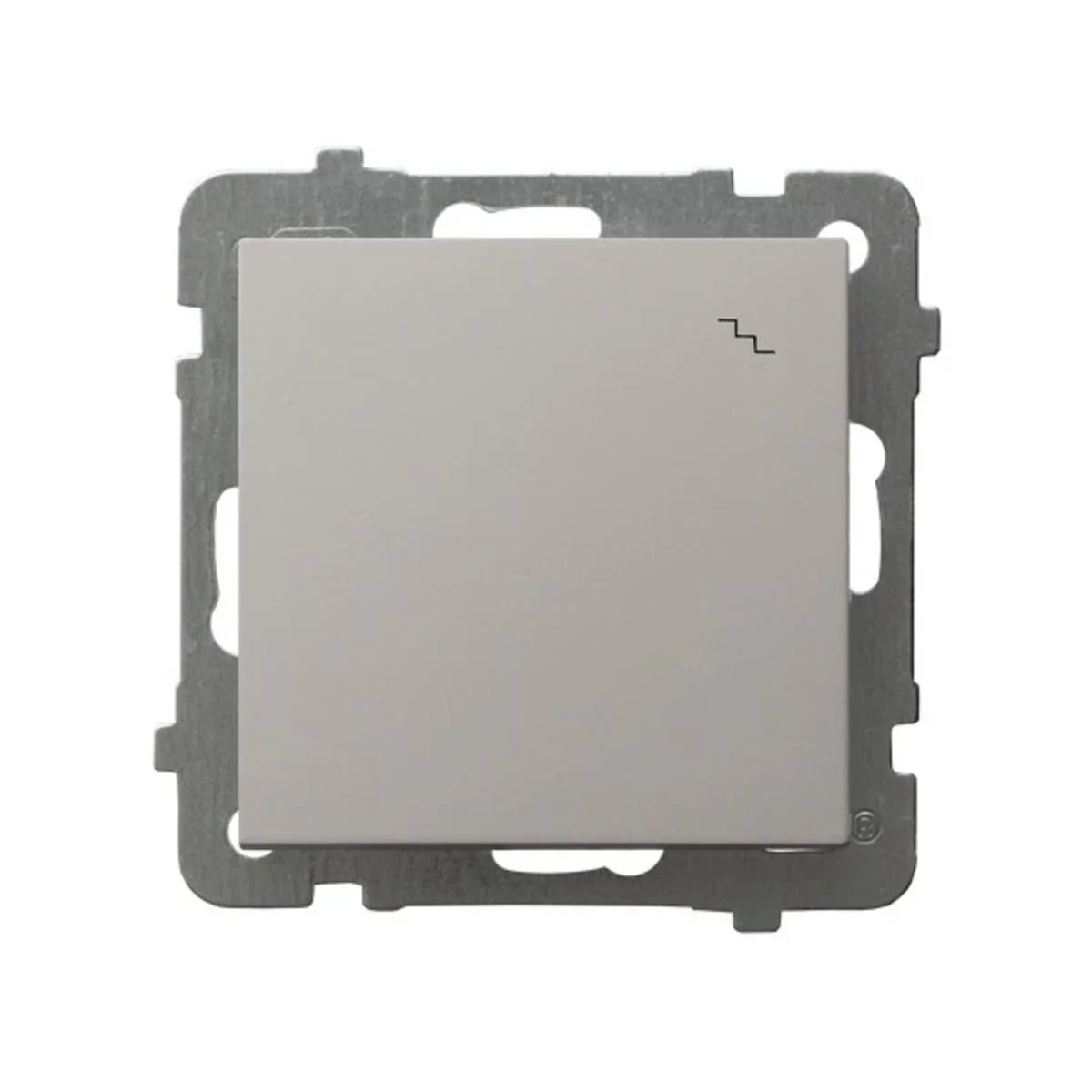

Staircase switch from the As series, from the manufacturer Ospel.

FEATURES

  • Single.
  • Symbol "staircase" on the key.
  • Module without frame.
  • Threaded terminals.
  • Rated current10AX.
  • Rated voltage230V.
  • Installationflush-mounted.
  • Protection degreeIP20.
  • Dimensions: 71x 71 mm (height x width).

SERIES DESCRIPTION

The As series is a geometric form broken by the delicate curves of the frames. It is a combination of dynamic design and neutral colors that will work well in any interior. The highest quality materials and timeless design allow us to create a product that will decorate your interior for many years.

As is the perfect solution for those who value true classics. Both the main elements and the complementary frames are based on a square with strongly defined corners. The angles are sharp, perfectly reflecting the geometric trend in interior design. In the case of elements with additional backlighting, small details become a strong and expressive accent. This is a collection for the decisive, so the color options are also limited and strongly correspond to the classic style.

Technical data

  • Depth [mm]
    40
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Symbol
    Stairs
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Exact material
    Plastic Metal
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Cashmere
  • Mounting depth [mm]
    25
  • For the frame system
    Yes

Other technical data

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    Yes
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    25 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Lacquered
  • Colour
    Other
  • Nominal voltage
    250 V
  • Heating switch
    No
  • Device width
    71 mm
  • Device depth
    40 mm
  • Min. depth of built-in installation box
    60 mm

Manufacturer details

  • Manufacturer
    OSPEL S.A.
  • Address
    42-436 Wierbka Główna 128 Polska

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,710
Length (m) 0,710
Depth (m) 0,250
