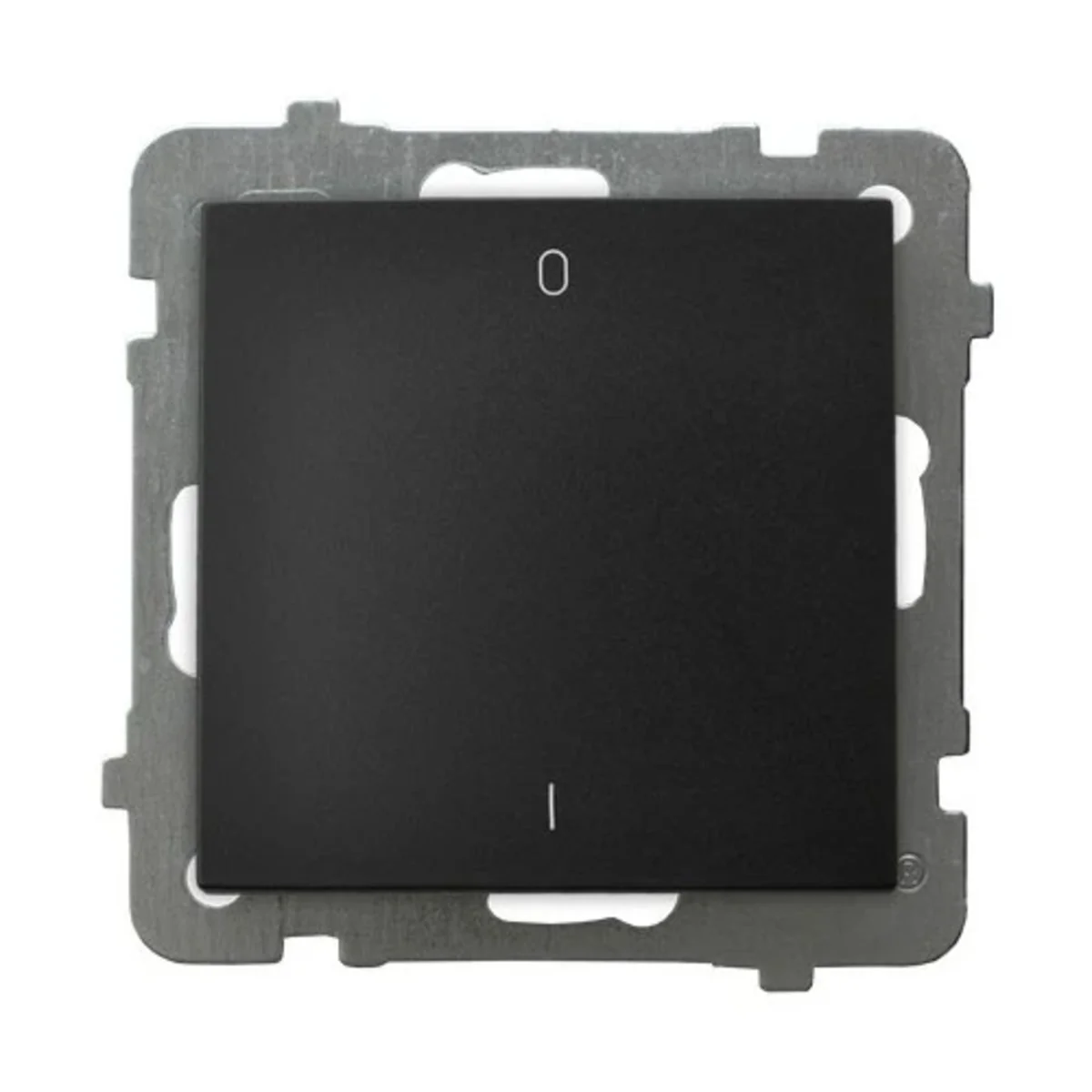

AS Black metallic double-pole switch without frame ŁP-11G/M/33

Index local:
MMD061OSPE
Numéro de catalogue:
ŁP-11G/M/33
Code EAN:
5906729016603
Producteur: OSPEL
Depth [mm]: 40
Number of keys: 1
Color: Black
Prix:
33,74 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à une semaine
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Double-pole switch from the As series, from the manufacturer Ospel.

SERIES DESCRIPTION

Products from the As series are distinguished by delicately curved frames. The Double-pole switch characterizes the features of this unique series.

Données techniques

  • Depth [mm]
    40
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    AS
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    25
  • For the frame system
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Bipolar
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Exact material
    Plastic Metal

Autres données techniques

  • Wiring system
    2-pole switch
  • Assembly arrangement
    Basic element with complete housing
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Lacquered
  • Colour
    Black
  • Illumination
    No
  • Nominal voltage
    250 V
  • Heating switch
    No
  • Device width
    71 mm
  • Device depth
    40 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Washing machine switch
    No
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 4 pcs.
Largeur (m) 0,710
Longueur (m) 0,710
Profondeur (m) 0,250
