ARIA Universal dimmer for LED silver ŁP-8UL2/M/18

Name: ARIA Universal dimmer for LED silver
Brand: OSPEL
SKU: MMC041OSPE
Price: 222.25 PLN
Availability: BackOrder

local index:

MMC041OSPE

Catalog number:

ŁP-8UL2/M/18

EAN code:

5907577483180

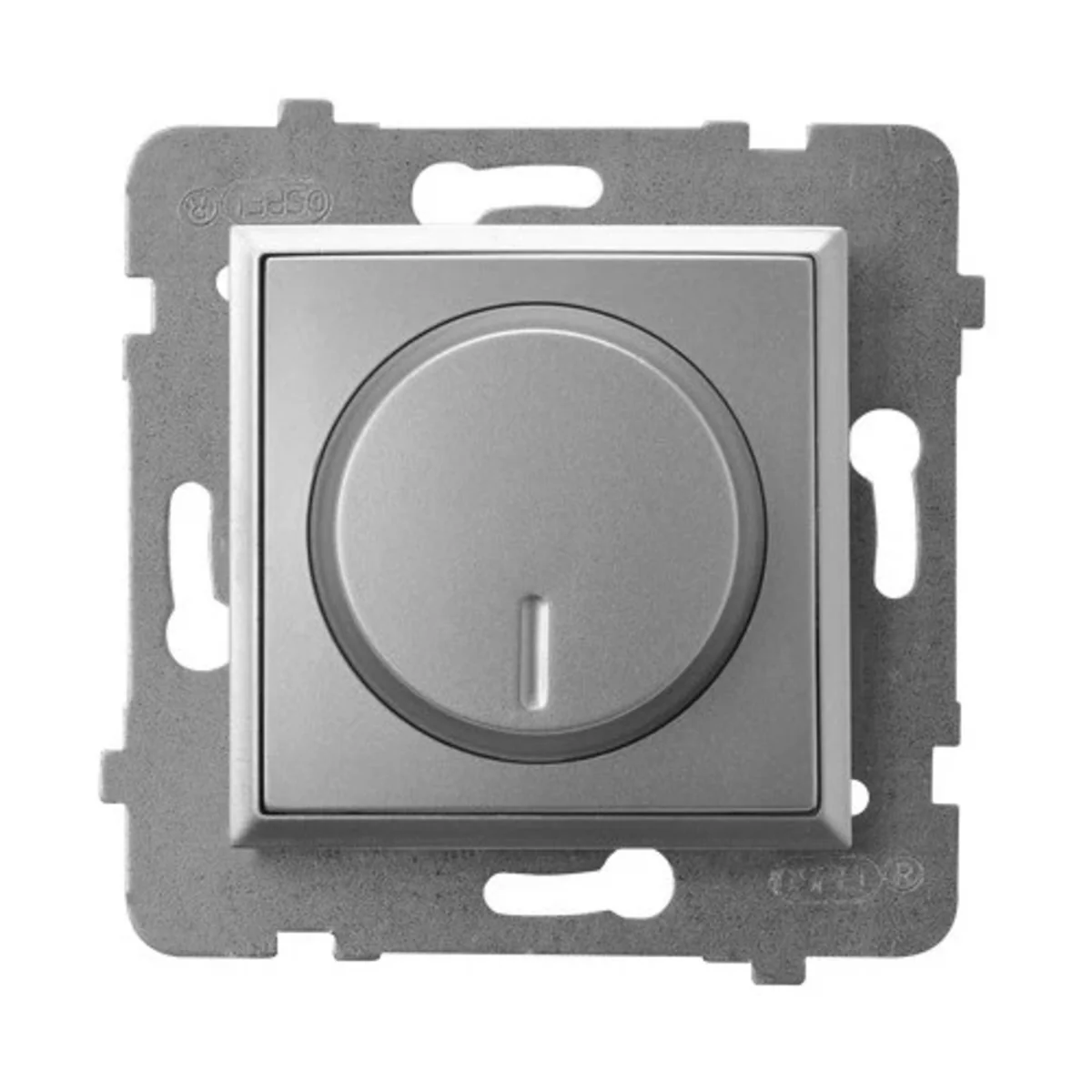

Click on the photo to enlarge

Manufacturer: OSPEL

Additional features: With the function of a stair switch

Depth [mm]: 53

Number of keys: Knob

See full description

Price:

222,25 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Universal dimmer from theAria series, from Ospel. The product catalog number is ŁP-8UL2/M/18.

FEATURES

Adjusted to incandescent load , halogen and LED.
Load power: GLS-10-250W, CFL 5-75W, LED 0-100W.
Time to bed function.
Working in a stair system.

SERIES DESCRIPTION

Aria products have an internal decorative frame, which adds originality and distinguishes them from other series. Dimmercharacterizes the features of this unique series.

Technical data

Additional features

With the function of a stair switch
Number of keys

Knob
Shape

Square
Fixing

claws screws
Type

dimmers
Level of security

IP20
Type

Flush-mounted
Height [mm]

71
Backlight

NO
load power [W]

GLS: 10-250 CFL: 5-75 LED: 0-100
For the frame system

Yes

Depth [mm]

53
Color

Silver
Material

Plastic
Rated voltage [V]

230
Family

ARIA
Width [mm]

71
Version

For incandescent lighting For halogen lighting For LED
Surface protection

varnishing
Mounting depth [mm]

32
Terminal type

Threaded
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with complete housing
Number of modules (module system)

1
Serial dimmer

Yes
Substation input

No
Applicable with button

Yes
Applicable with presence indicator

No
Applicable with transmission button

No
Mounting method

Flush-mounted
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9006
Suitable for degree of protection (IP)

IP20
Nominal voltage

230 ... 230 V
Control voltage

230 ... 230 V
Device width

82 mm
Device depth

52 mm

Method of operation

Turn/push button
App control via Bluetooth

No
Type of load

Universal and LED Retrofit
Light value memory

Yes
Applicable with movement sensor

No
Applicable with time switch/timer

No
Applicable with infrared button

No
Type of fastening

Mounting with claw and screw
Material quality

Thermoplastic
Surface protection

Lacquered
Colour

Silver
Transparent

No
Impact strength

IK03
Frequency

50 ... 50 Hz
Core cross section

1 ... 1.5 mm²
Device height

82 mm
Min. depth of built-in installation box

60 mm

Manufacturer details

Manufacturer

OSPEL S.A.
Address

42-436 Wierbka Główna 128 Polska
E-mail

ospel@ospel.com.pl

Bulk packaging

A kind of package	Pudełko
Quantity	5 pcs.
Width (m)	0,710
Length (m)	0,710
Depth (m)	0,320
