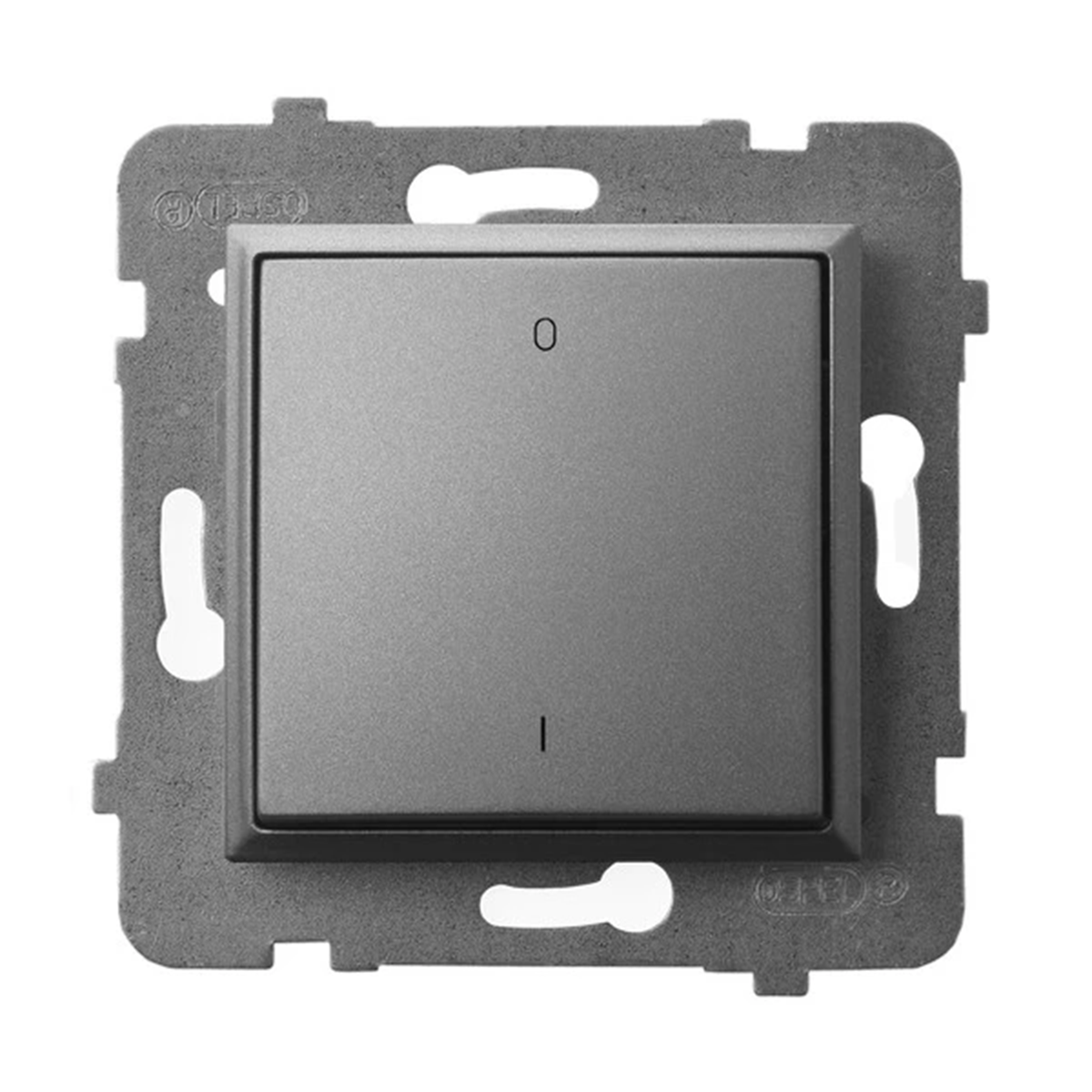

ARIA Two-pole switch gray mat ŁP-11U/M/70

Name: ARIA Two-pole switch gray mat
Brand: OSPEL
SKU: MMD039OSPE
Price: 34.49 PLN
Availability: BackOrder

local index:

MMD039OSPE

Catalog number:

ŁP-11U/M/70

EAN code:

5907577484897

Click on the photo to enlarge

Manufacturer: OSPEL

Depth [mm]: 40

Number of keys: 1

Color: Gray

See full description

Price:

34,49 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Double-pole switch from the Aria series, from the manufacturer Ospel. The product catalog number is ŁP-11U/M/70.

SERIES DESCRIPTION

Products from the Aria have an internal decorative frame, which adds originality and distinguishes them from other series. Double-pole connector characterize features of this unique series.< /p>

Technical data

Depth [mm]

40
Color

Gray
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

ARIA
Width [mm]

71
Height [mm]

71
Accurate color

gray matt
Mounting depth [mm]

25
For the frame system

Yes
PKWIU

27.33.11.0

Number of keys

1
Shape

Square
Fixing

claws screws
Rated voltage [V]

230
Type

Bipolar
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Backlight

NO
Terminal type

Threadless
Exact material

Plastic Metal

Other technical data

Wiring system

2-pole switch
Assembly arrangement

Basic element with complete housing
Push button switch

No
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Thermoplastic
Surface protection

Untreated
Colour

Silver
Label space/information surface

No
Function lighting

Orientation
Suitable for degree of protection (IP)

IP20
Rated current

16 A
Feedback-signal contact

No
Washing machine switch

No
Device height

75 mm
Built-in depth

25 mm

Method of operation

Rocker/button
Number of modules (module system)

1
Number of rockers

1
Type of fastening

Mounting with claw and screw
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

7031
Illumination

Yes
Type of lighting

Glow lamp
Nominal voltage

250 V
Switching current for fluorescent lamps

16 AX
Connection type

Push-in clamp
Device width

75 mm
Device depth

40 mm

Manufacturer details

Manufacturer

OSPEL S.A.
Address

42-436 Wierbka Główna 128 Polska
E-mail

ospel@ospel.com.pl

Bulk packaging

A kind of package	Pudełko
Quantity	4 pcs.
Width (m)	0,710
Length (m)	0,710
Depth (m)	0,250

Files to download

pl.pdf
