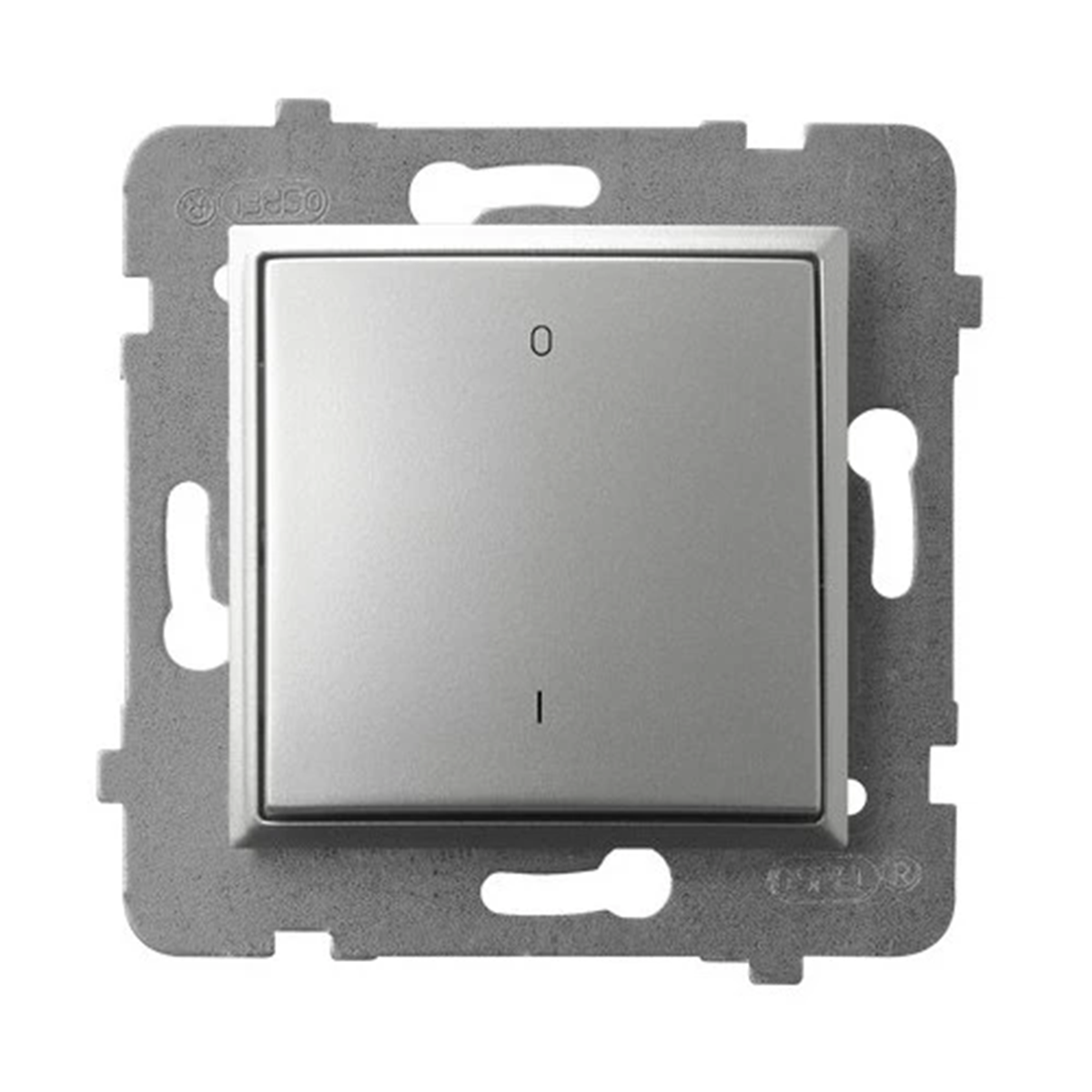

ARIA Two-pole silver switch ŁP-11U/M/18
local index:
MMD036OSPE
Catalog No:
ŁP-11U/M/18
EAN code:
5907577483111
Price:
6,80 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Double-pole switch from the Aria series, from the manufacturer Ospel. The product catalog number is ŁP-11U/M/18.
SERIES DESCRIPTION
Products from Aria have an internal decorative frame, which adds originality and distinguishes them from other series. Double-pole connector characterize features of this unique series.< /p>
Technical data
-
Depth [mm]40
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyARIA
-
Width [mm]71
-
Height [mm]71
-
BacklightNO
-
Terminal typeThreadless
-
Exact materialPlastic Metal
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeBipolar
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Mounting depth [mm]25
-
For the frame systemYes
-
PKWIU27.33.11.0
Other technical data
-
Wiring system2-pole switch
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourSilver
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height75 mm
-
Built-in depth25 mm
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9006
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typePush-in clamp
-
Device width75 mm
-
Device depth40 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
