ARIA Stair switch + single pole silver ŁP-9U/M/18
local index:
MMS129OSPE
Catalog No:
ŁP-9U/M/18
EAN code:
5907577483135
Price:
7,56 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

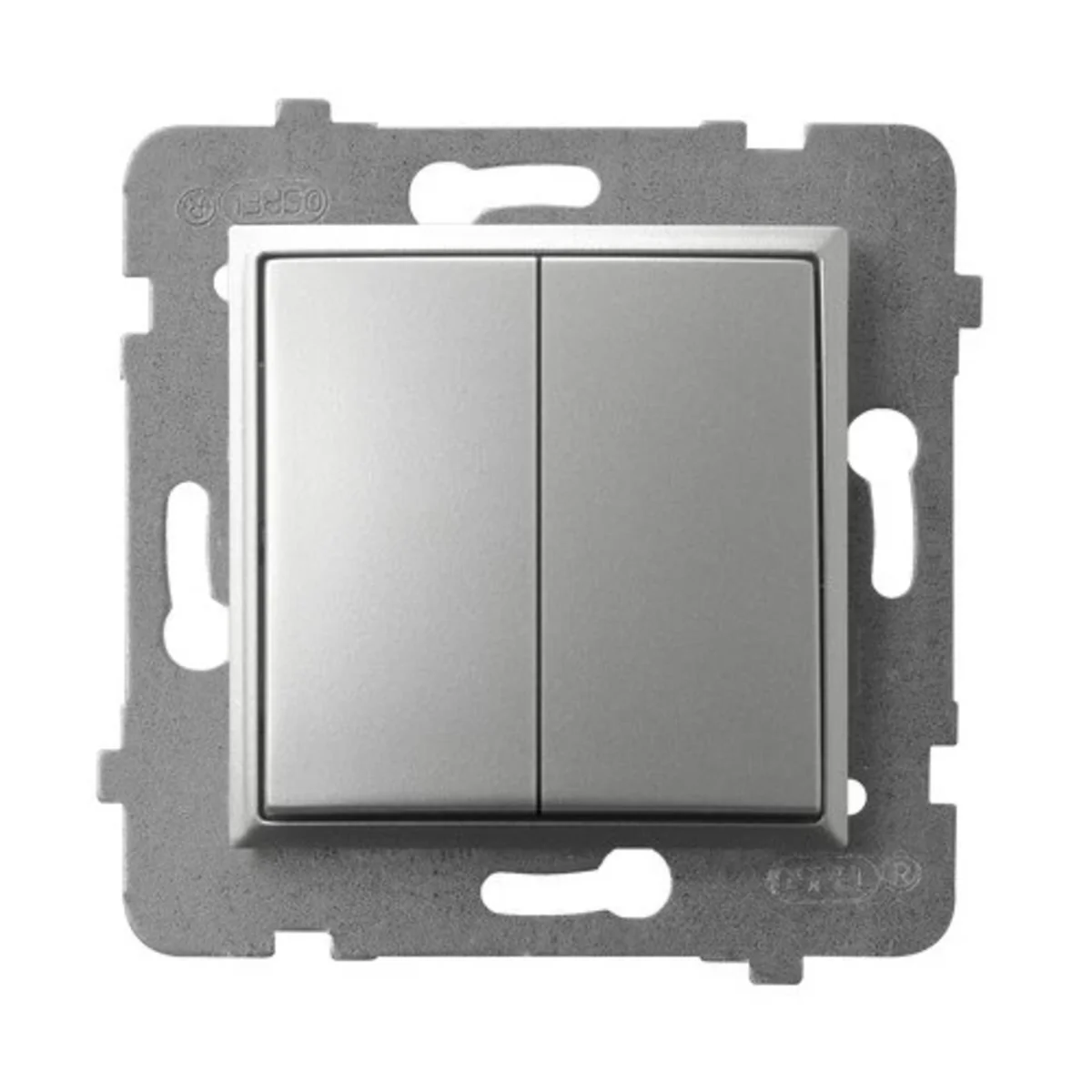

Stair switch + single-pole from the Aria series, from Ospel. The product catalog number is ŁP-9U/M/18.
FEATURES
- Double; one rocker acts as staircase switch, the other as a single-pole switch.
- Module without frame.
- Threadless terminals.
- Color silver.
- Rated current 10AX.
- Rated voltage 230V< /strong>.
- flush mounting.
- Ingress protection IP20.
- Dimensions: 71 x 71 mm (height x width).
SERIES DESCRIPTION
The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of the Aria connectors is not only practical but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from several backlight colors.
Technical data
-
Additional featuresIntegrated with unipolar
-
Number of keys2
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Mounting depth [mm]25
-
For the frame systemYes
-
PKWIU27.33.11.0
-
Depth [mm]40
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyARIA
-
Width [mm]71
-
Height [mm]71
-
BacklightNO
-
Terminal typeThreadless
-
Exact materialPlastic Metal
Other technical data
-
Wiring systemOther
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourSilver
-
Label space/information surfaceNo
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height82 mm
-
Built-in depth25 mm
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers2
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9006
-
IlluminationNo
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typePush-in clamp
-
Device width82 mm
-
Device depth40 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
