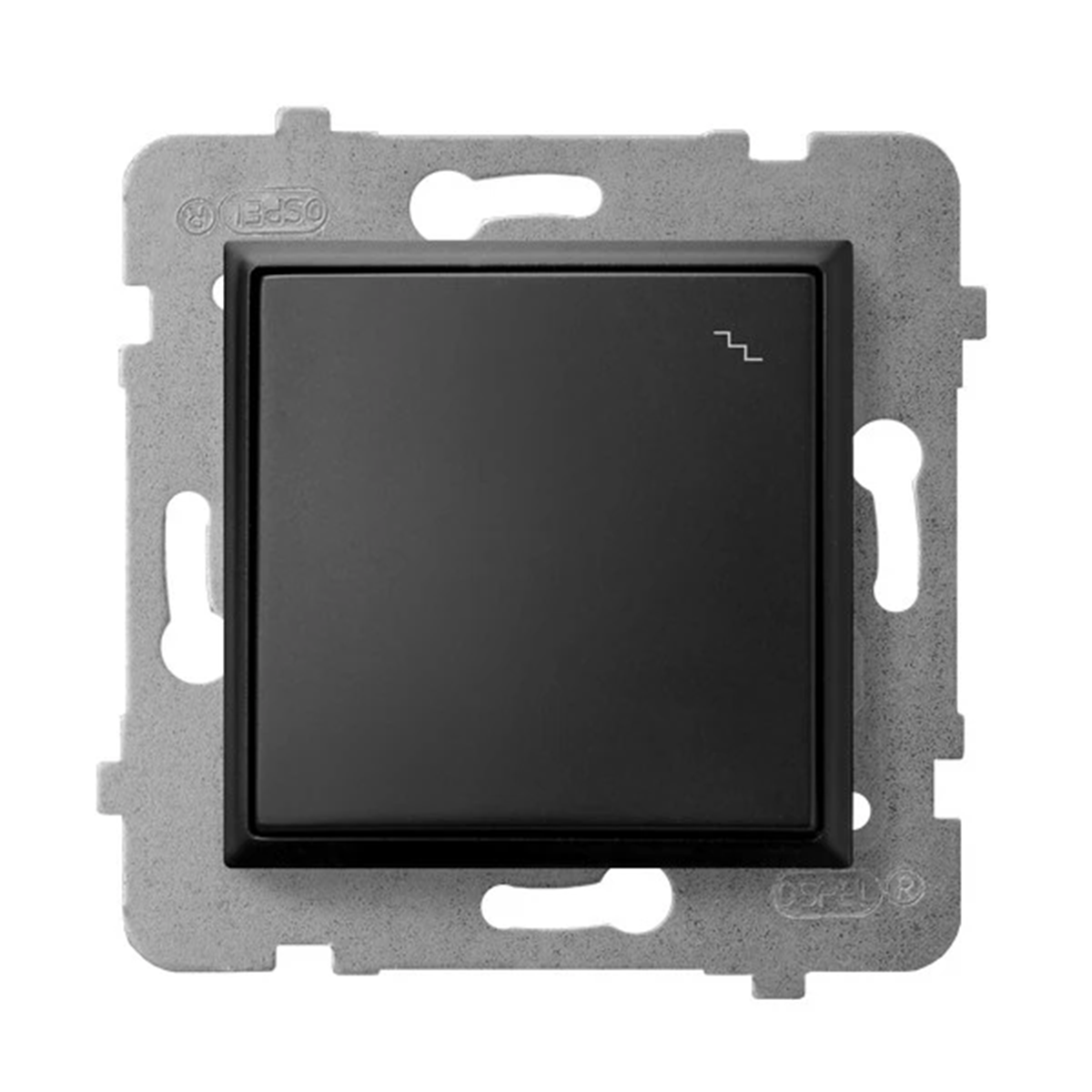

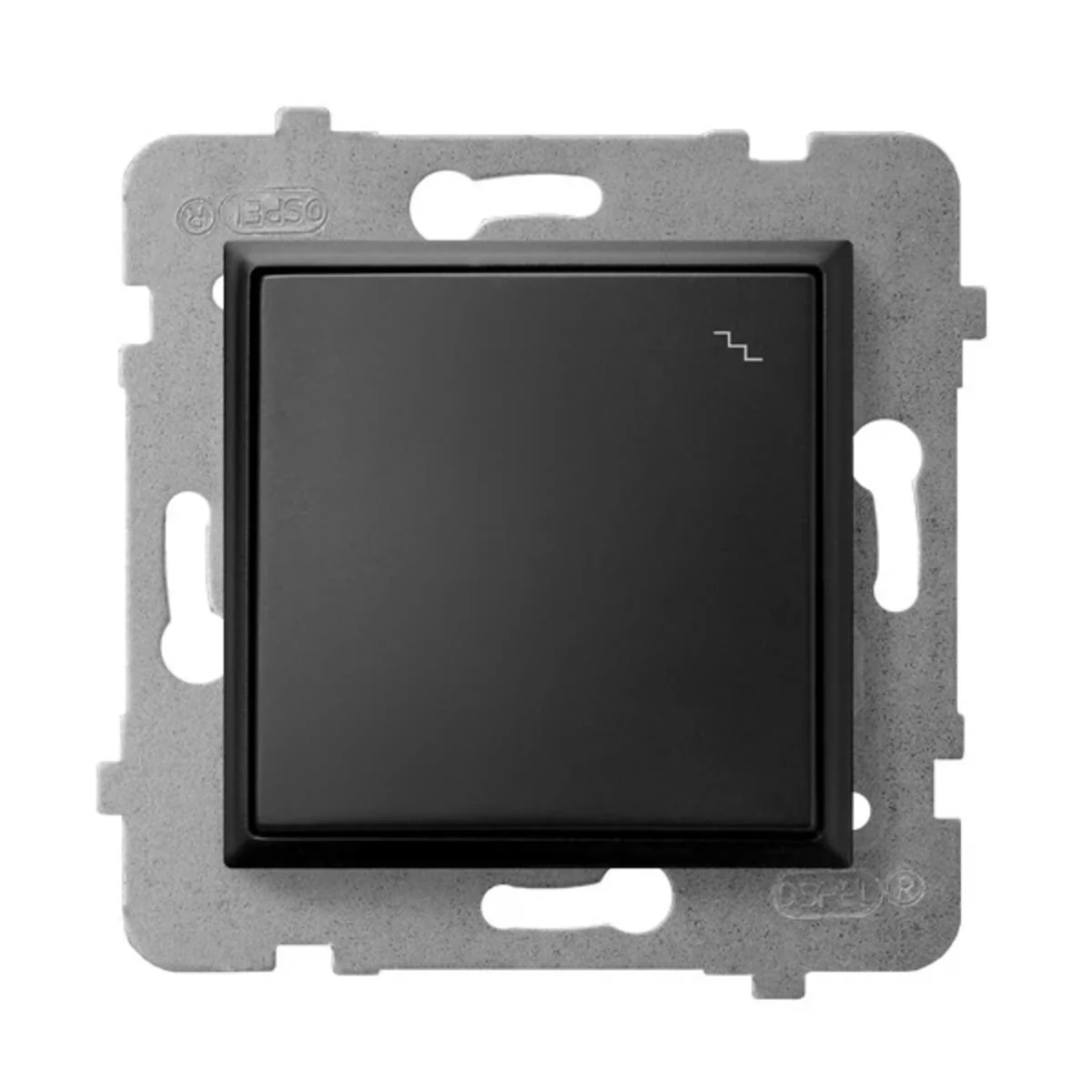

ARIA Stair switch black metallic ŁP-3U/M/33

local index:
MMS149OSPE
Catalog No:
ŁP-3U/M/33
EAN code:
5907577483937
Manufacturer: OSPEL
Color: Black
Material: Plastic
Installation: Flush-mounted
Price:
6,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 19 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

A switch that, together with the second stair switch, allows you to control the lighting from two different places. Switching one of the pair changes the state of the circuit (open/closed) to the opposite state. Used in stairwells or corridors, e.g. you can turn on the light on the ground floor and turn it off on the upper floor. A frame is required for the set. It can be used in multiple frame systems.

The standard connector has an IP-20 degree of protection, but it is possible to install it as an IP-44 connector. This allows it to be used in an environment with increased humidity. For this purpose, you need to purchase a sealing kit and a frame for IP-44 connectors, available as separate products.


NOTE!
To receive a switch with backlight, you must purchase a backlight unit for the Aria series. The backlight assembly includes a ring and a backlight module for mounting in the switch mechanism.

The backlight is available in the following colors: orange, blue, gold, green, white and red.

Technical data

  • Color
    Black
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Mounting method
    Thread clamps
  • Type
    Fasteners
  • Dimension [mm]
    71 x 71
  • PKWIU
    27.33.11.0
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Family
    ARIA
  • Level of security
    IP20
  • Fastener type
    Stair
  • Accurate color
    Black metallic

Other technical data

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Black
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    82 mm
  • Built-in depth
    25 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9005
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    82 mm
  • Device depth
    40 mm

Manufacturer details

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
