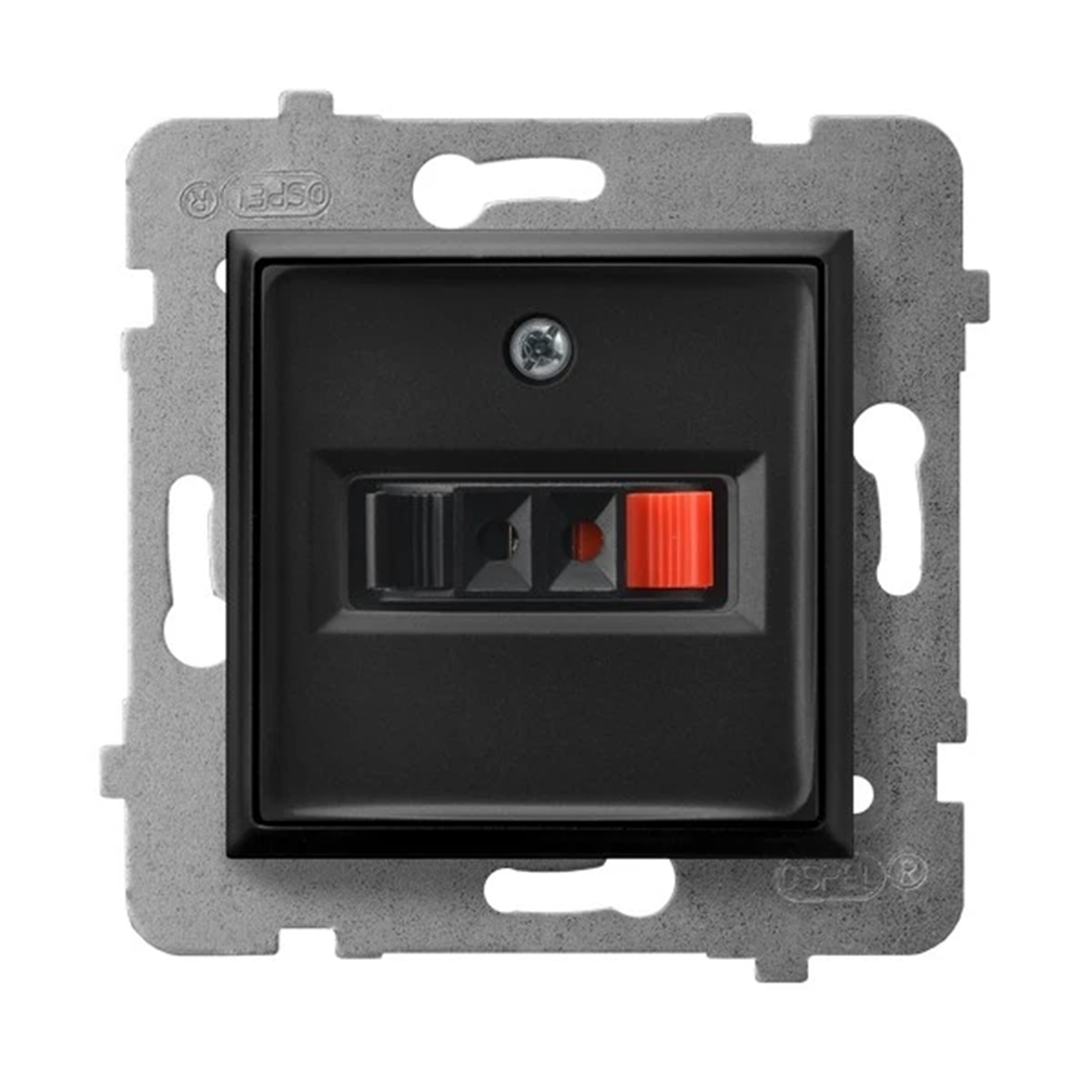

ARIA Speaker socket, single black metallic GG-1U/M/33

Místní index:
MEG023OSPE
Katalogové číslo.:
GG-1U/M/33
EAN kód:
5907577484514
Výrobce: OSPEL
Depth [mm]: 40
Number of sockets: 1
Color: Black
Cena:
40,84 zł
gross / kusů.
(včetně DPH 23%)
Dodání do 3 hodin
do 4 týdnů (pracovní dny)
Vyzvednutí za 1h
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

Speaker socket from the Aria series, from Ospel. The product catalog number is GG-1U/M/33.



FEATURES

  • Single .
  • Module without frame.
  • Color black metallic.
  • Mounting < strong>flushmount.
  • Connectivity of wires 0.75 mm2.



SERIES DESCRIPTION

The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Speaker socket has all the features of this unique series.

Technické údaje

  • Depth [mm]
    40
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    ARIA
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    22
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Type
    speaker
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Variant
    Pin-type plugs
  • Exact material
    Plastic Metal

Další technické údaje

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with complete housing
  • With buses/couplings
    Yes
  • Category
    Other
  • RAL-number
    9005
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    No
  • Mounting method shielding connection
    None
  • With dust cover
    No
  • Mechanical coding
    No
  • Device width
    75 mm
  • Device depth
    32 mm
  • Duct installation
    No
  • Type of fastening
    Screwing
  • Type of connector
    Other
  • Suitable for number of connectors
    1
  • Colour
    Black
  • Connection type
    Other
  • Shielded housing
    No
  • With label space
    No
  • Separate strain relief
    No
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    No
  • Device height
    75 mm

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Pudełko
Množství 4 kusů.
Šířka (m) 0,140
Délka (m) 0,162
Hloubka (m) 0,090
