ARIA Single speaker socket 6mm2 ecru GGN-1U/M/27
local index:
MEG072OSPE
Catalog No:
GGN-1U/M/27
EAN code:
5907577492397
Price:
9,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

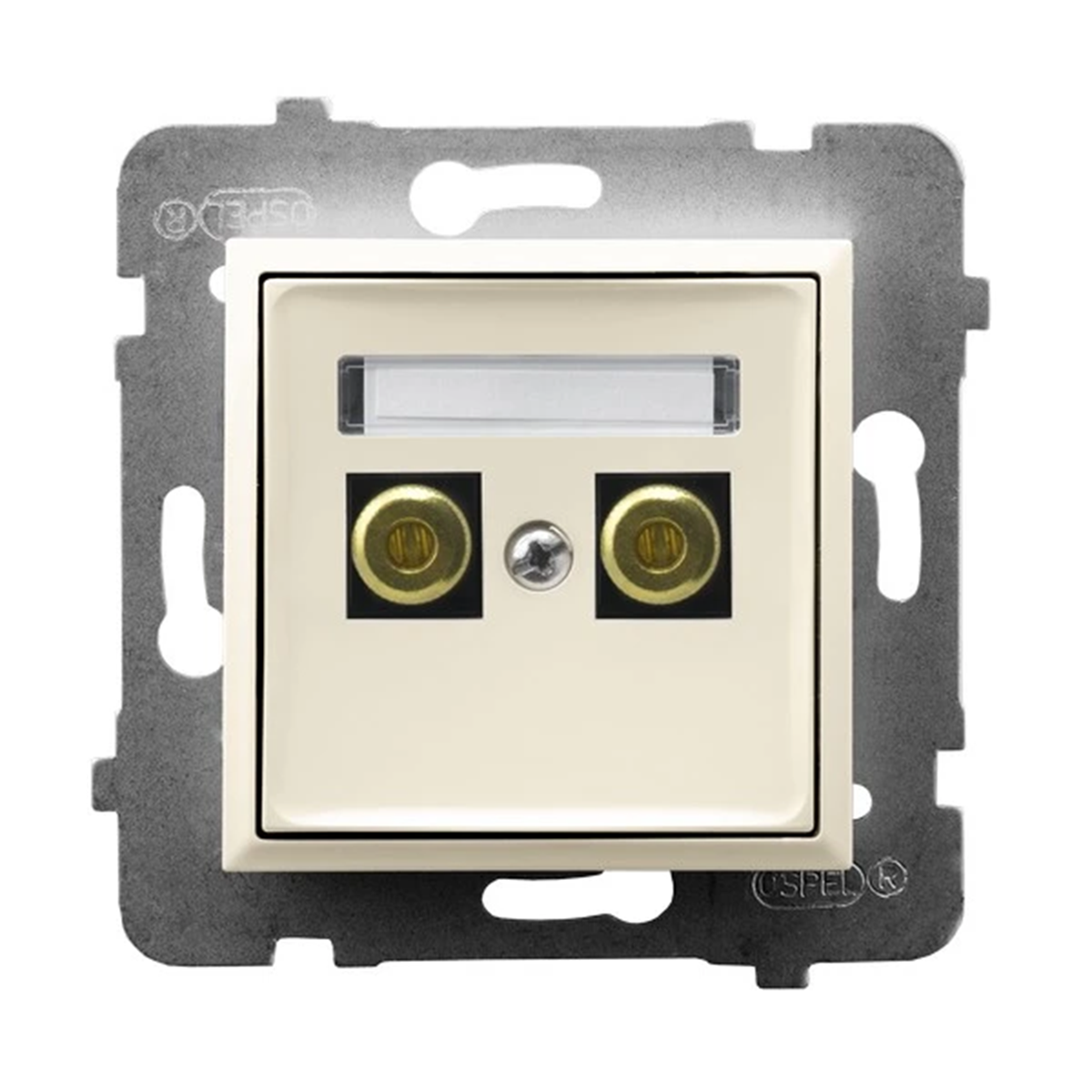

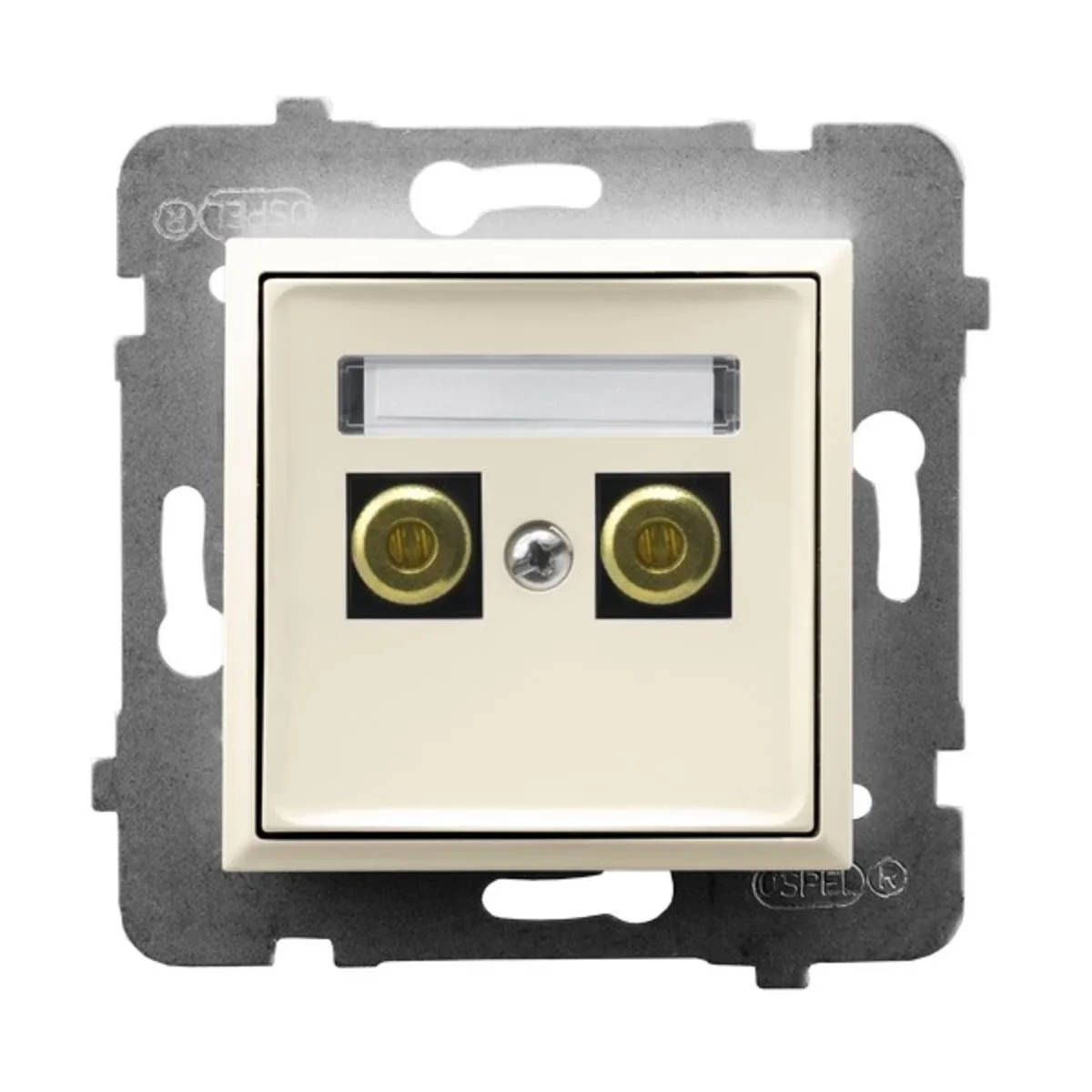

Speaker socket from the Aria series, from Ospel. The product part number is GGN-1U/M/27.
FEATURES
- Single .
- Module without frame.
- Color ecru.
- Mounting flushmount.
- Connectivity of 6 mm2 wires.
- Gold-plated terminals.
SERIES DESCRIPTION
The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Speaker socket has all the features of this unique series.
Technical data
-
Depth [mm]47
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Typespeaker
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
Cable connectivity [mm²]6
-
Mounting depth [mm]22
-
VariantFor banana plugs
-
Exact materialPlastic Metal
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws screws
-
Descriptive fieldYes
-
FamilyARIA
-
Width [mm]71
-
Height [mm]71
-
Accurate colorEcru
-
BacklightNO
-
Terminal typeThreaded
-
For the frame systemYes
-
PKWIU26.40.52.0
Other technical data
-
Surface mountingNo
-
Floor box/subfloor mountedNo
-
Assembly arrangementBasic element with complete housing
-
With buses/couplingsYes
-
CategoryOther
-
RAL-number1013
-
Shielded busesNo
-
Separate earthing connectionNo
-
Compatible with third-party coversNo
-
Mounting method shielding connectionNone
-
With dust coverNo
-
Mechanical codingNo
-
Device width82 mm
-
Device depth32 mm
-
Duct installationNo
-
Type of fasteningScrewing
-
Type of connectorOther
-
Suitable for number of connectors1
-
ColourWhite
-
Connection typeOther
-
Shielded housingNo
-
With label spaceNo
-
Separate strain reliefNo
-
Outlet directionStraight
-
Degree of protection (IP)IP20
-
Colour codingNo
-
Device height82 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko | |
| Quantity | 1 pcs. | 10 pcs. |
| Width (m) | 0,071 | 0,162 |
| Length (m) | 0,071 | 0,290 |
| Depth (m) | 0,047 | 0,090 |
