ARIA Single socket without grounding gray mat GP-1U/M/70
local index:
MEE622OSPE
Catalog No:
GP-1U/M/70
EAN code:
5907577484972
Price:
5,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

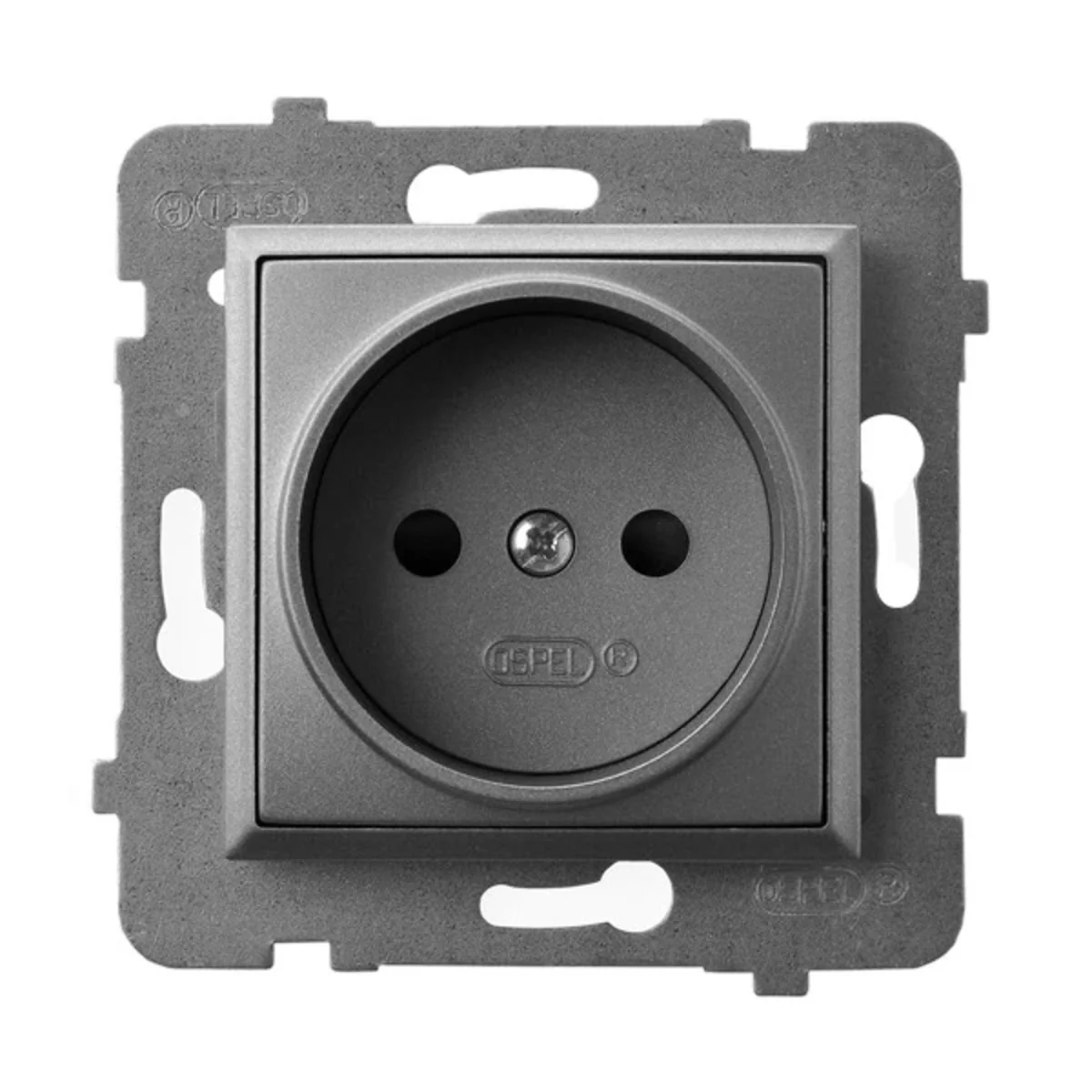

Electrical socket from the Aria series, from the manufacturer Ospel. The product part number is GP-1U/M/70.
FEATURES
- Single.
- Ungrounded.
- To be fitted with frame.
- Thread terminals .
- Color matte gray.
- Rated current 16A.
- Rated voltage 230V .
- Ingress protection IP20.
- flush mounting.
- Dimensions: 71 ;x 71 mm (height x width).
SERIES DESCRIPTION
Series Aria is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences.
Technical data
-
Depth [mm]38
-
ColorGray
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyARIA
-
Width [mm]71
-
GroundLack
-
Surface protectionvarnishing
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemYes
-
PKWIU27.33.13.0
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorgray matt
-
Mounting depth [mm]26
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPlastic Metal
Other technical data
-
ModelMulti-standard socket
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)1
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourGrey
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height75 mm
-
Protective contactNo
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of units1
-
Number of socket outlets switchable0
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)7031
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width75 mm
-
Device depth37 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko | |
| Quantity | 1 pcs. | 4 pcs. |
| Weight (kg) | 0,073 | - |
| Width (m) | 0,071 | 0,140 |
| Length (m) | 0,071 | 0,162 |
| Depth (m) | 0,038 | 0,090 |
