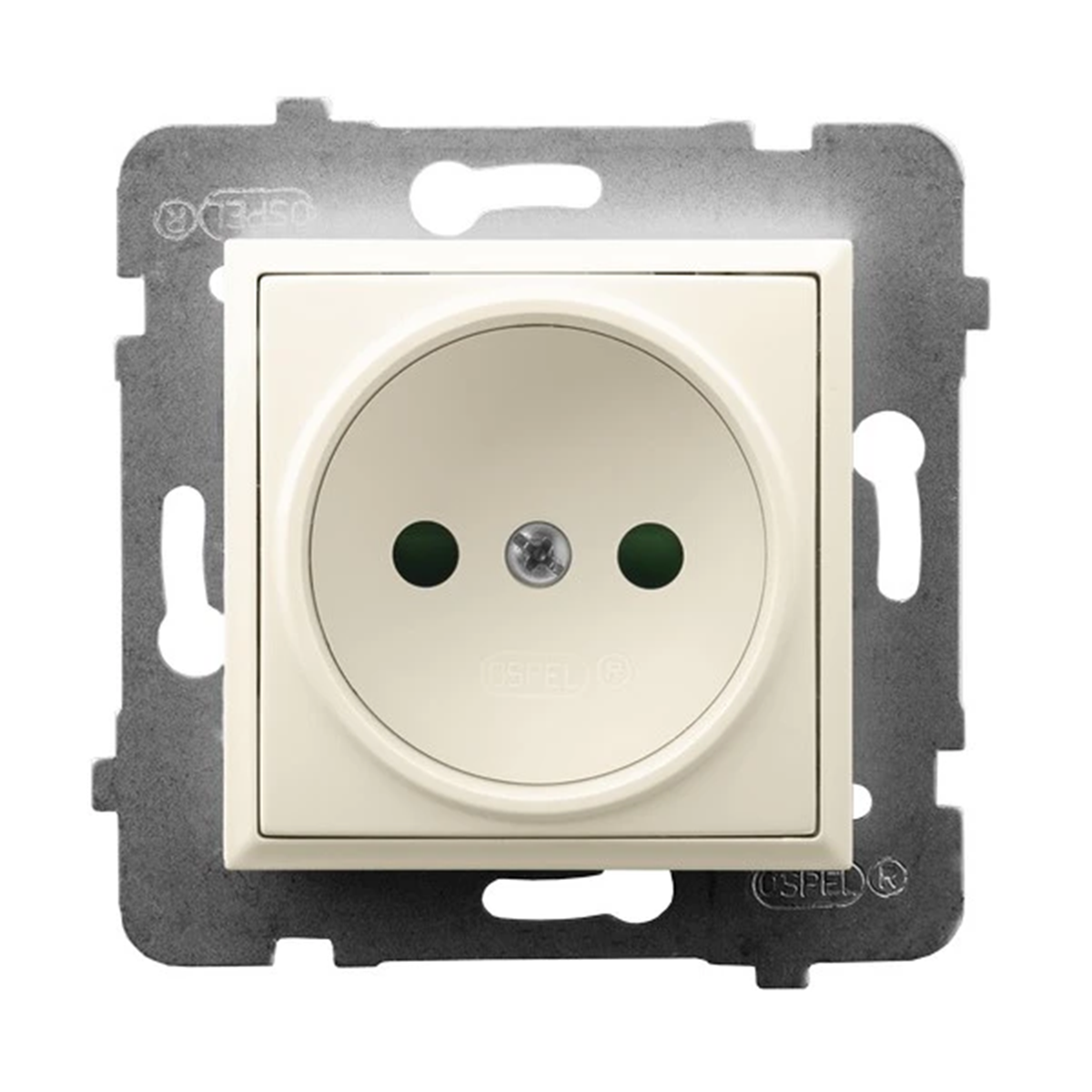

ARIA Single socket without earthing with ecru shutters GP-1UP/M/27
Místní index:
MEE625OSPE
Katalogové číslo.:
GP-1UP/M/27
EAN kód:
5907577491932
Cena:
17,56 zł
gross / kusů.
(včetně DPH 23%)
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout
Dotaz na výrobek
Popis produktu
Electrical socket from the Aria series, from the manufacturer Ospel. The product part number is GP-1UP/M/27.
FEATURES
- Single.
- Without earthing.
- With shutters for current paths.
- To be equipped with a frame .
- Thread terminals.
- Color ecru.
- Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20.
- Installation flush.
- Dimensions: 71 x 71 mm (height x width).
SERIES DESCRIPTION
The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences.
Technické údaje
-
Depth [mm]38
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyARIA
-
Width [mm]71
-
GroundLack
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorEcru
-
Mounting depth [mm]26
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPlastic Metal
Další technické údaje
-
ModelMulti-standard socket
-
Number of active contacts (flat)0
-
Number of modules (module system)1
-
Imprint/indicationNone
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)1013
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With loop through functionNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height75 mm
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With on/off switchNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width75 mm
-
Device depth37 mm
Podrobnosti o výrobci
-
VýrobceOSPEL S.A.
-
Adresa42-436 Wierbka Główna 128 Polska
-
E-mail
Velkoobjemová balení
| Typ obalu | Pudełko |
| Množství | 10 kusů. |
| Šířka (m) | 0,710 |
| Délka (m) | 0,710 |
| Hloubka (m) | 0,260 |
