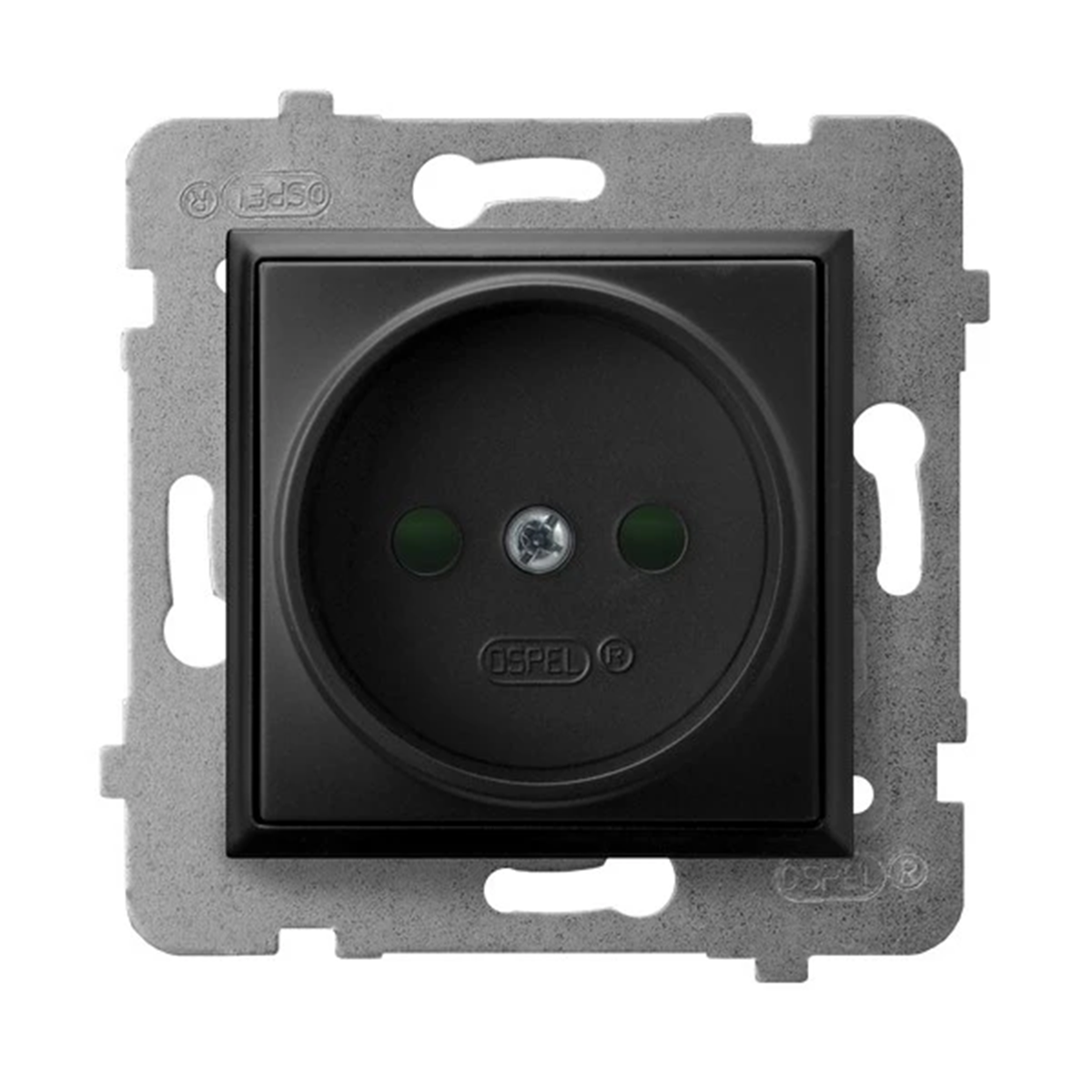

ARIA Single socket-outlet without grounding with shutters black metallic GP-1UP/M/33
Index local:
MEE626OSPE
Numéro de catalogue:
GP-1UP/M/33
Code EAN:
5907577484095
Prix:
27,50 zł
gross / pcs.
(y compris la TVA 23%)
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit
Données techniques
Détails du fabricant
Emballage en vrac
Fichiers à télécharger
Description du produit
Electrical socket from the Aria series, from the manufacturer Ospel. The product part number is GP-1UP/M/33.
FEATURES
- Single.
- Without earthing.
- With shutters for current paths.
- To be equipped with a frame .
- Thread terminals.
- Color black metallic.
- Rated current < strong>16A.
- Rated voltage 230V.
- Ingress protection IP20.
- flush mounting.
- Dimensions: 71 x 71 mm (height x width).
< h3>SERIES DESCRIPTION
TheAria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences.
Données techniques
-
Depth [mm]38
-
ColorBlack
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyARIA
-
Width [mm]71
-
GroundLack
-
Surface protectionvarnishing
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorBlack metallic
-
Mounting depth [mm]26
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPlastic Metal
Autres données techniques
-
ModelMulti-standard socket
-
Number of active contacts (flat)0
-
Number of modules (module system)1
-
Imprint/indicationNone
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9005
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
With loop through functionNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height75 mm
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of socket outlets switchable0
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourBlack
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
Anti-bacterial treatmentNo
-
With on/off switchNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width75 mm
-
Device depth37 mm
Détails du fabricant
-
ProducteurOSPEL S.A.
-
Adresse42-436 Wierbka Główna 128 Polska
-
E-mail
Emballage en vrac
| Une sorte de paquet | Pudełko |
| Quantité | 4 pcs. |
| Largeur (m) | 0,710 |
| Longueur (m) | 0,710 |
| Profondeur (m) | 0,260 |
