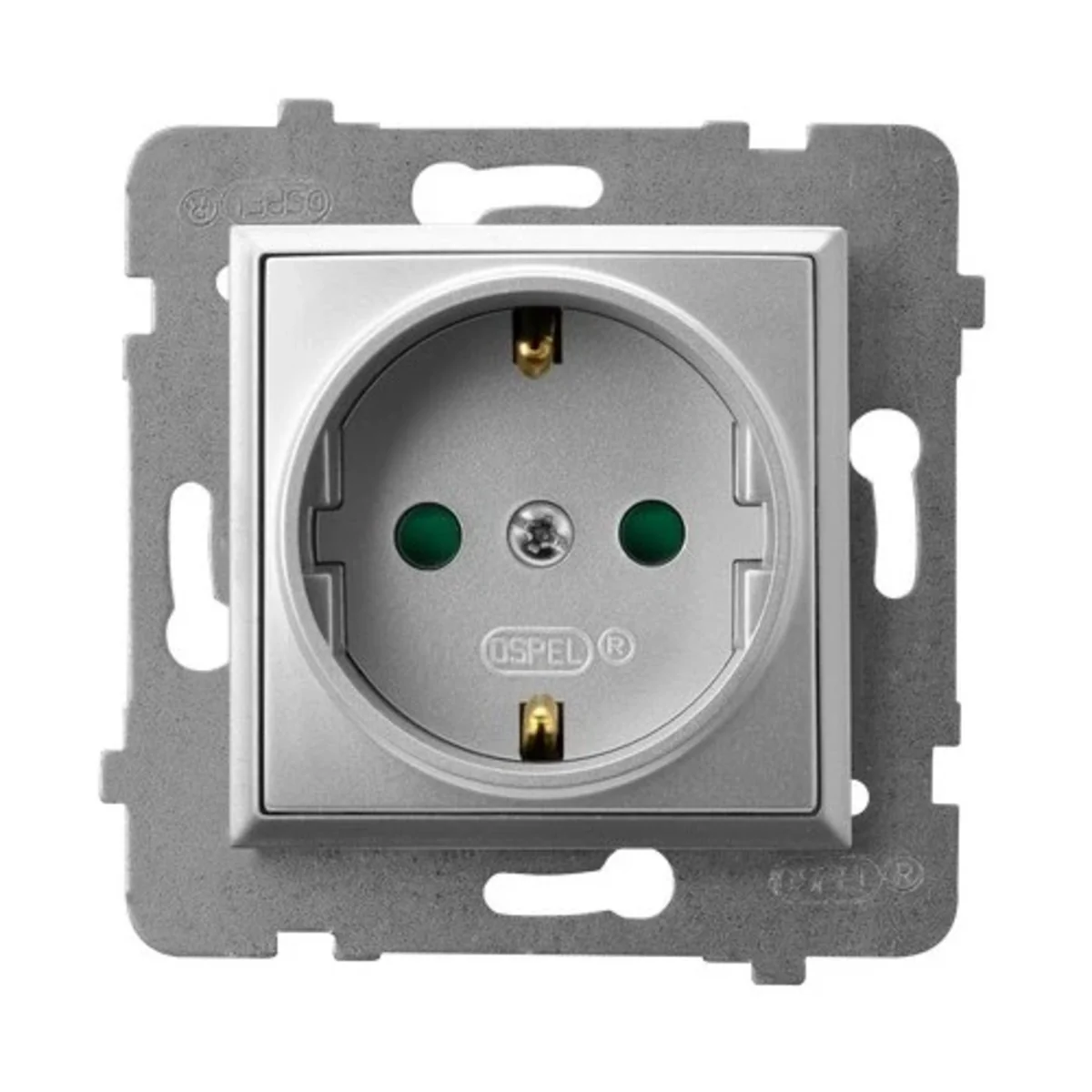

ARIA Single socket outlet with Schuko grounding and silver shutters GP-1USP/M/18
local index:
MEE634OSPE
Catalog No:
GP-1USP/M/18
EAN code:
5907577483241
Price:
6,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electrical socket from the Aria series, from the manufacturer Ospel. The product part number is GP-1USP/M/18.
FEATURES
- Single.
- With schuko grounding.
- With shutters for current paths.
- To be equipped with frame.
- Thread terminals.
- Color silver.
- Rated current < strong>16A.
- Rated voltage 230V.
- Ingress protection IP20.
- flush mounting.
- Dimensions: 71 x 71 mm (height x width).
< h3>SERIES DESCRIPTION
TheAria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences.
Technical data
-
Depth [mm]41
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilyARIA
-
Width [mm]71
-
Groundschuko
-
Surface protectionvarnishing
-
Mounting depth [mm]29
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPlastic Metal
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsYes
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)1
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourSilver
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height75 mm
-
Protective contactYes
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of units1
-
Number of socket outlets switchable0
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9006
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width75 mm
-
Device depth41 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko | |
| Quantity | 1 pcs. | 4 pcs. |
| Width (m) | 0,071 | 0,140 |
| Length (m) | 0,071 | 0,162 |
| Depth (m) | 0,041 | 0,090 |
