ARIA Single computer socket, cat. 5e black metallic GPK-1U/K/M/33

local index:
MEI147OSPE
Catalog No:
GPK-1U/K/M/33
EAN code:
5907577484446
Manufacturer: OSPEL
Depth [mm]: 33
Category: 5e
Color: Black
Price:
13,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 12 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

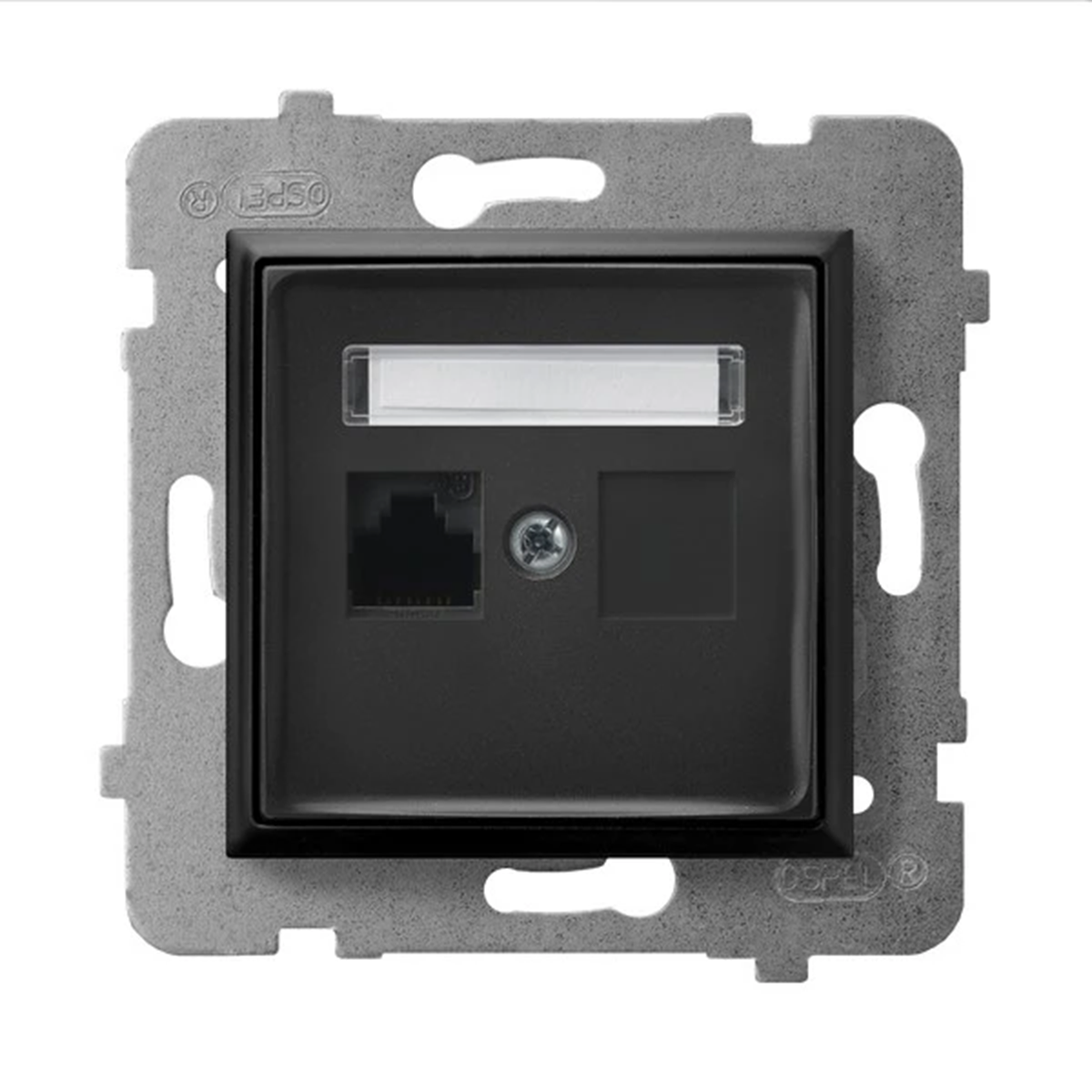

Single RJ-45 computer socket, category 5e MMC. It is used to connect a twisted pair signal cable, unshielded category 5e. Data transfer speed is 1Gb/s. The catalog number is GPK-1U/K/M/33.

  • Type of connection - tool-free.

 < /p>

SERIES DESCRIPTION

Aria  products have an internal decorative frame that adds originality and distinguishes them from other series.

Technical data

  • Depth [mm]
    33
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Dimension [mm]
    71 x 71
  • Surface protection
    varnishing
  • Mounting depth [mm]
    22
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Extra socket
    Blank space
  • PKWIU
    26.30.30.0
  • Category
    5e
  • Shape
    Square
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    ARIA
  • Width [mm]
    71
  • Version
    UTP
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Terminal type
    Threadless MMC
  • For the frame system
    Yes
  • Dust cover
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Surface mounting
    no
  • Floor box/subfloor mounted
    no
  • Assembly arrangement
    Basic element with complete housing
  • With buses/couplings
    yes
  • Category
    5E
  • RAL-number
    9005
  • Shielded buses
    no
  • Separate earthing connection
    no
  • Compatible with third-party covers
    no
  • Mounting method shielding connection
    None
  • With dust cover
    no
  • Mechanical coding
    no
  • Device width
    82 mm
  • Device depth
    37 mm
  • Duct installation
    no
  • Type of fastening
    Engage (snap)
  • Type of connector
    RJ45 8(4)
  • Suitable for number of connectors
    1
  • Colour
    Black
  • Connection type
    Other
  • Shielded housing
    no
  • With label space
    yes
  • Separate strain relief
    no
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    yes
  • Device height
    82 mm
