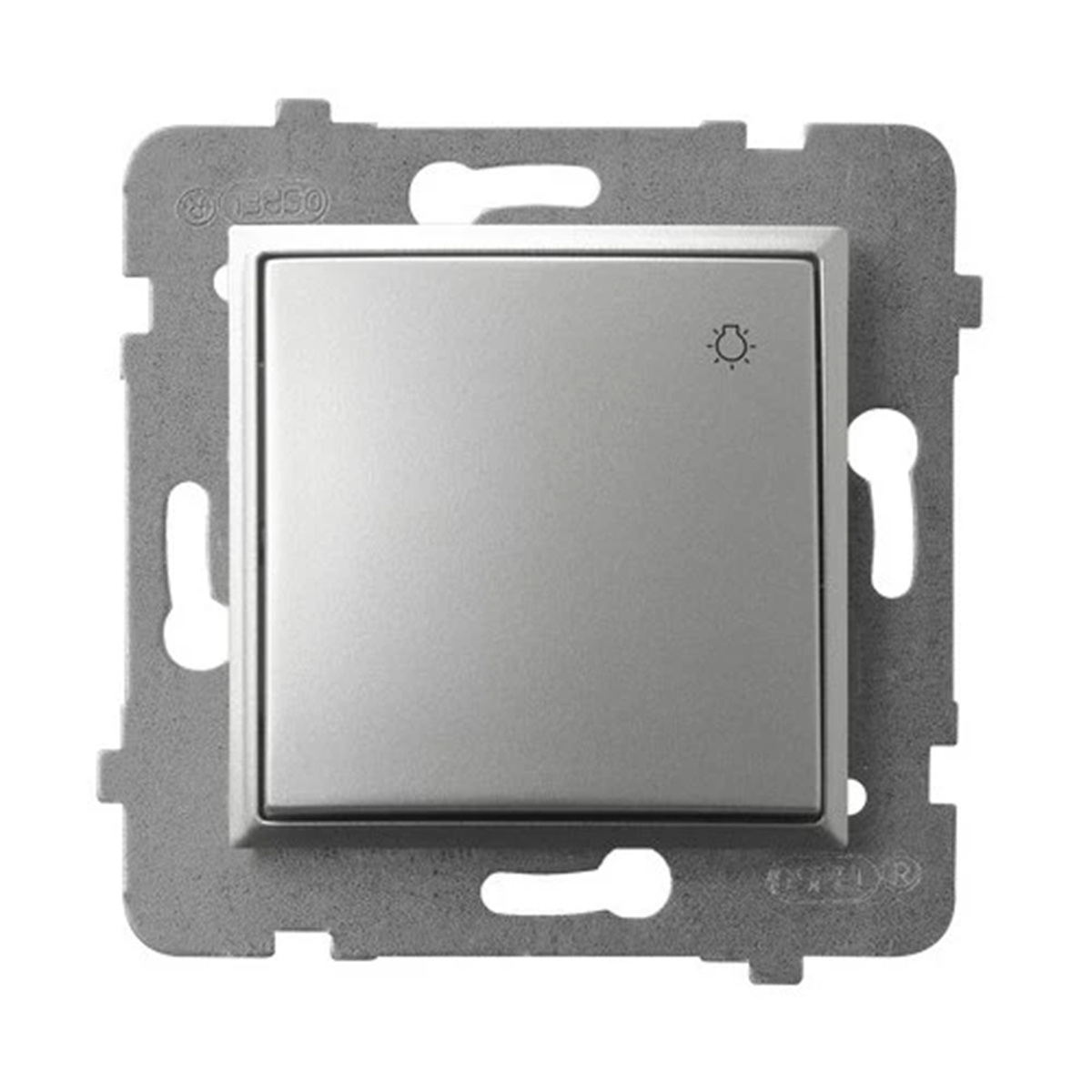

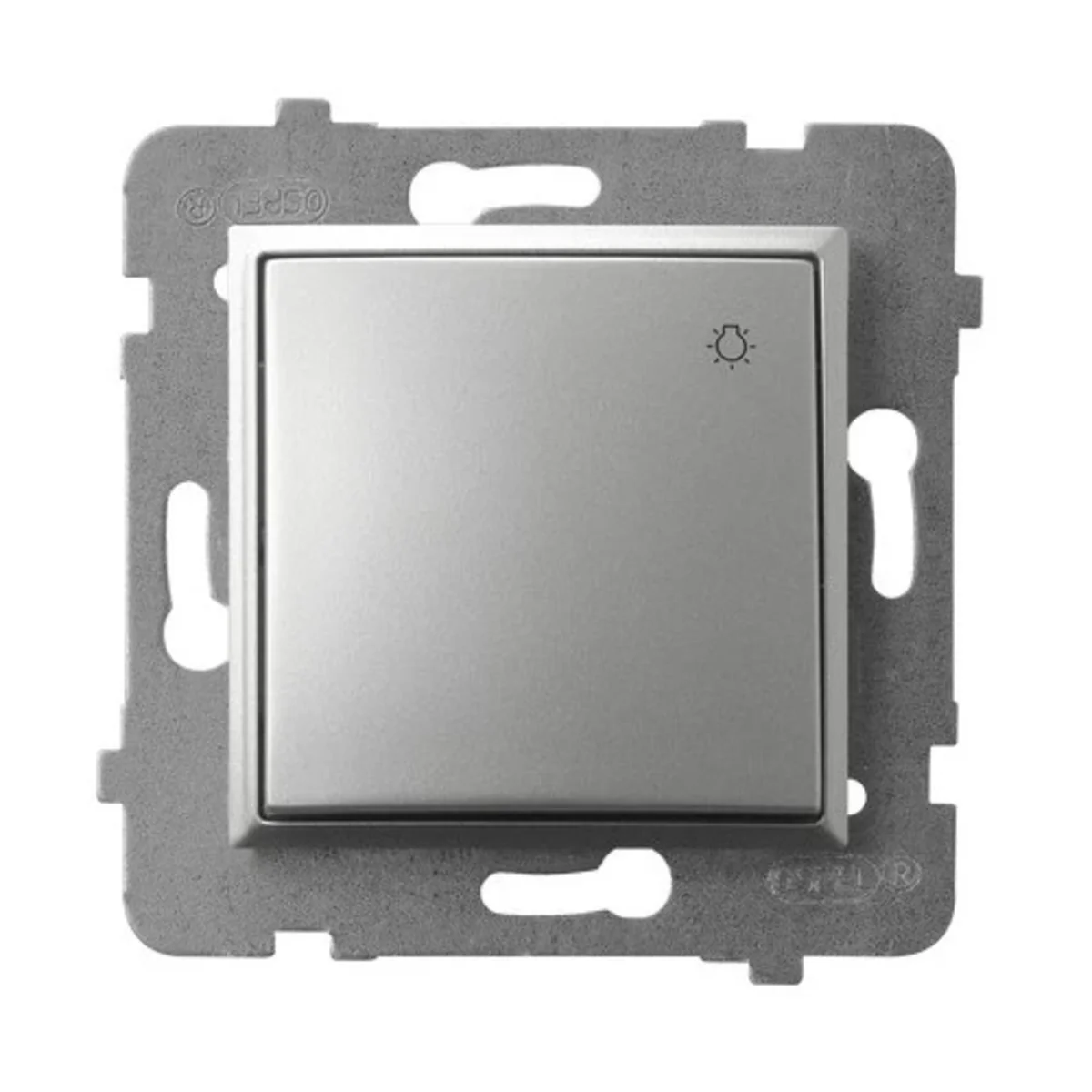

ARIA Silver closing switch "light". ŁP-5U/M/18

local index:
MMZ089OSPE
Catalog No:
ŁP-5U/M/18
EAN code:
5907577483067
Manufacturer: OSPEL
Depth [mm]: 40
Number of keys: 1
Color: Silver
Price:
6,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

"Light"switch from  Aria series, from the manufacturer Ospel. The product catalog number is ŁP-5U/M/18. Silver color.



FEATURES

  • To be equipped with a frame .
  • The "light" symbol on the rocker.
  • To obtain the IP44 splash-proof class, use a sealing kit for IP44 connectors.



SERIES DESCRIPTION

The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from several backlight colors.

Technical data

  • Depth [mm]
    40
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    ARIA
  • Symbol
    Light
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    71
  • Version
    Confident
  • Surface protection
    varnishing
  • Mounting depth [mm]
    25
  • Variant
    Light
  • Exact material
    Plastic Metal

Other technical data

  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9006
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    82 mm
  • Device depth
    42 mm
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    Yes
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Silver
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    82 mm
  • Built-in depth
    25 mm

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
