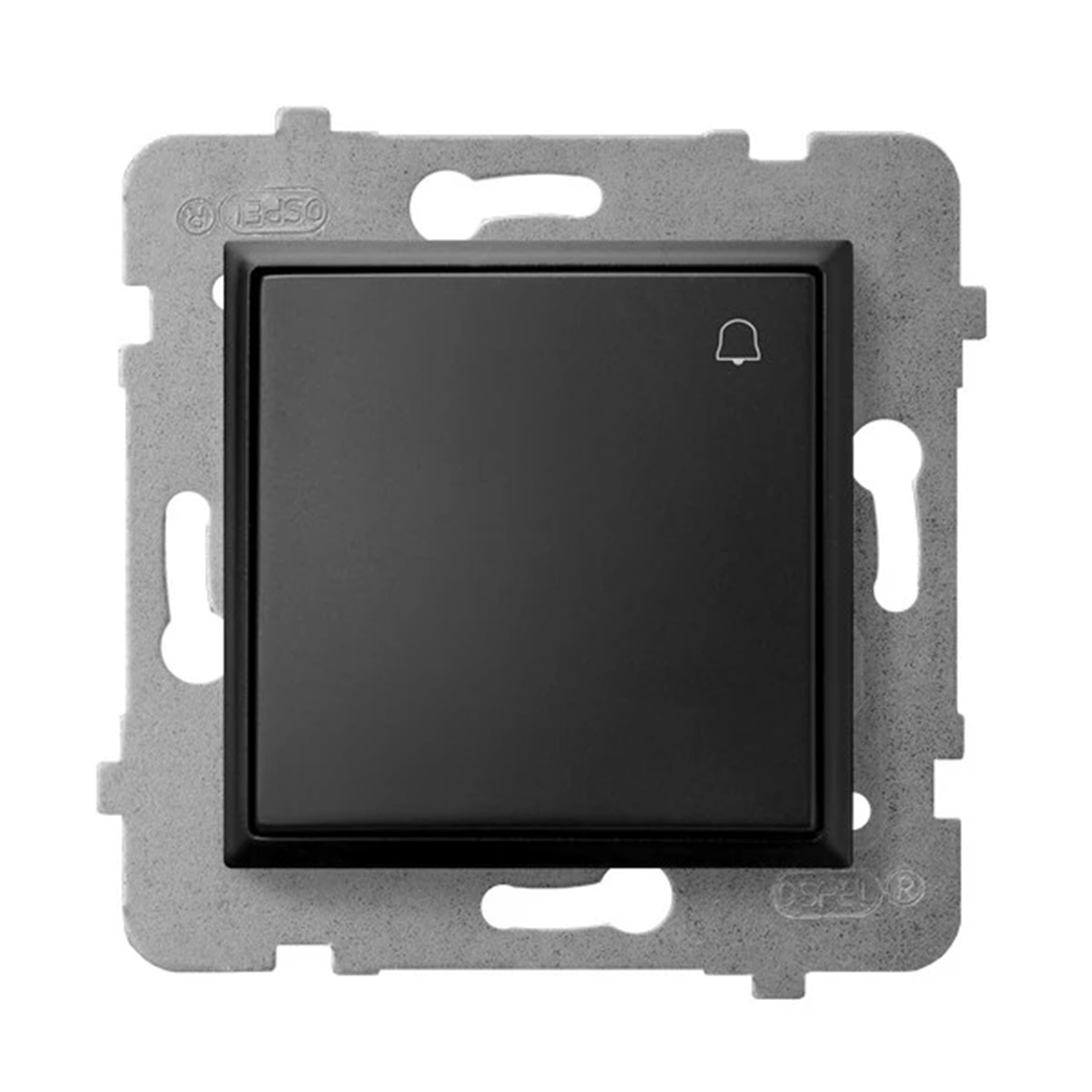

ARIA Short-circuit switch "bell" black metallic ŁP-6U/M/33
local index:
MMZ179OSPE
Catalog No:
ŁP-6U/M/33
EAN code:
5907577483968
Price:
6,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
The switch acts as a normally open, deflecting button. It is used to activate the bell, gong. A frame is required for the set. It can be used in multiple frame systems.
The standard connector has an IP-20 degree of protection, but it is possible to install it as an IP-44 connector. This allows it to be used in an environment with increased humidity. For this purpose, you need to purchase a sealing kit and a frame for IP-44 connectors, available as separate products.
NOTE!
To receive a switch with backlight, you must purchase a backlight unit for the Aria series. The backlight assembly includes a ring and a backlight module for mounting in the switch mechanism.
The backlight is available in the following colors: orange, blue, gold, green, white and red.
Technical data
-
ColorBlack
-
InstallationFlush-mounted
-
Rated current [A]10
-
Mounting methodThread clamps
-
TypeFasteners
-
Dimension [mm]71 x 71
-
PKWIU27.33.11.0
-
MaterialPlastic
-
Rated voltage [V]230
-
FamilyARIA
-
Level of securityIP20
-
Fastener typebell
-
Accurate colorBlack metallic
Other technical data
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9005
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width82 mm
-
Device depth40 mm
-
Assembly arrangementBasic element with complete housing
-
Push button switchYes
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourBlack
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height82 mm
-
Built-in depth25 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
