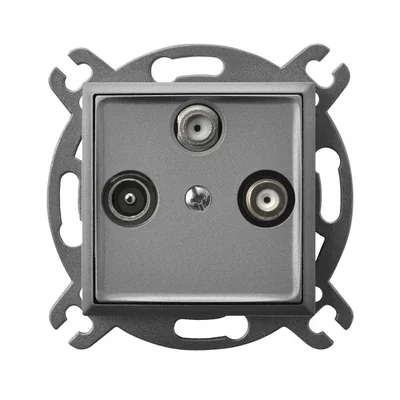

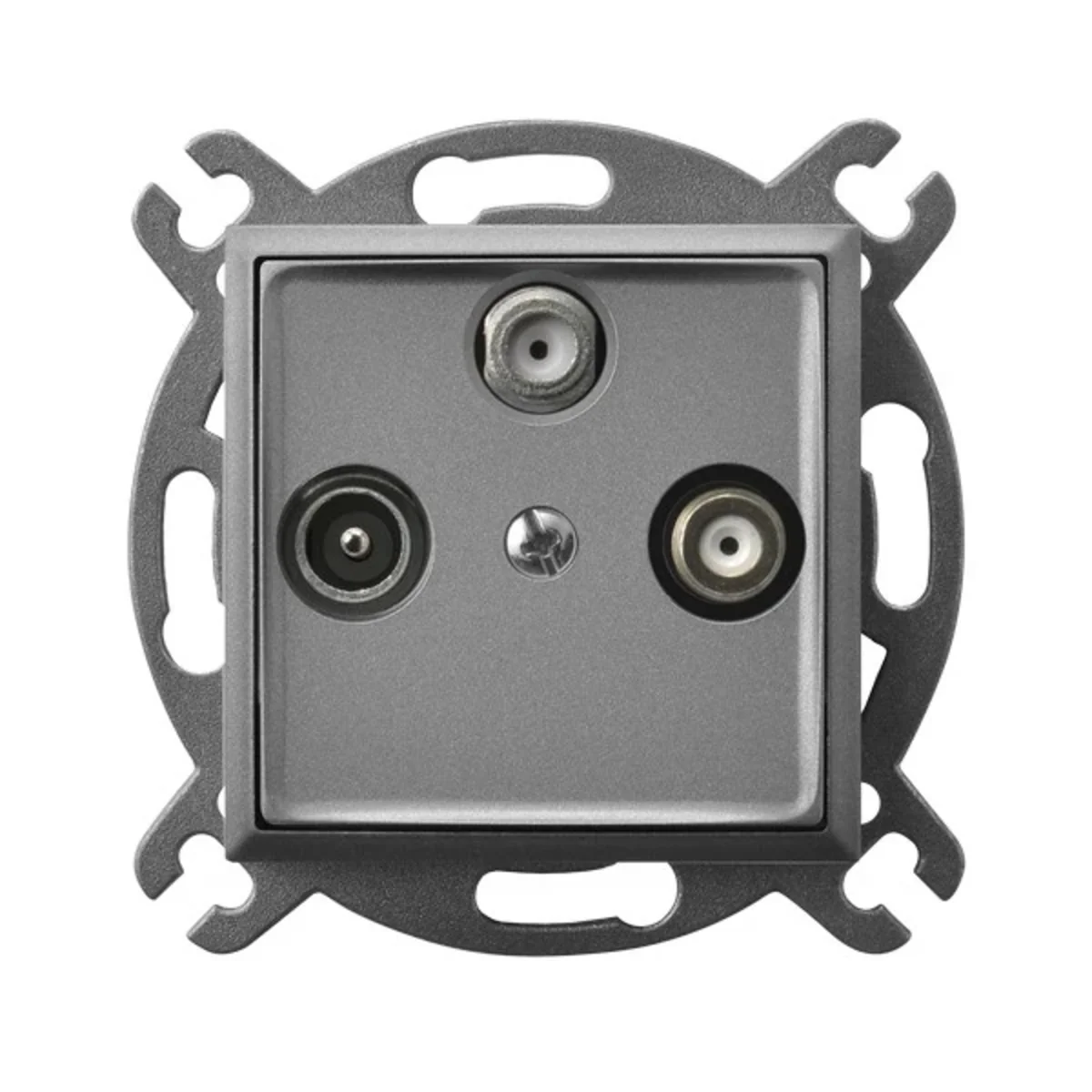

ARIA RTV socket DATA gray mat GPA-UD/M/70

local index:
MEA317OSPE
Catalog No:
GPA-UD/M/70
EAN code:
5907577485269
Manufacturer: OSPEL
Depth [mm]: 38
Number of sockets: 3
Color: Gray
Price:
21,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RTV-DATA antenna socket. To be equipped with a frame.



SERIES DESCRIPTION

The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.

Technical data

  • Depth [mm]
    38
  • Color
    Gray
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 13.2-13.6 TV: 9.5-12.4 DATE: 2.4-4.3
  • Height [mm]
    71
  • Frequency Range [MHz]
    R: 88-108 TV: 88-862 DATE: 5-862
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    ARIA
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    gray matt
  • Mounting depth [mm]
    25
  • Variant
    R TV DATE
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0

Other technical data

  • Model
    End socket
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    Grey
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    4.3 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    7031
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
