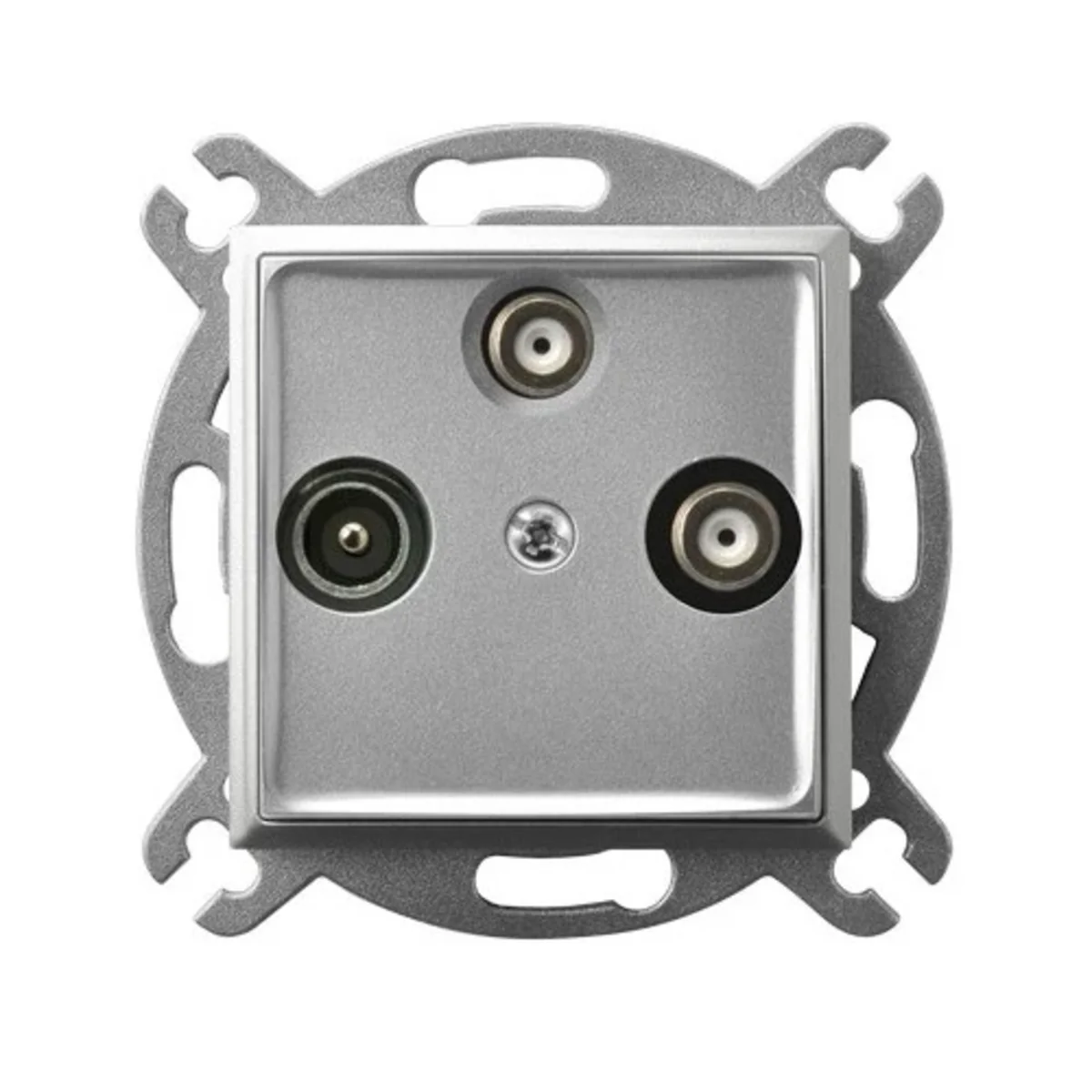

RTV antenna socket with two SAT outputs. To be equipped with a frame.

SERIES DESCRIPTION

The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.

Depth [mm]

38
Color

Silver
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

RTV: 0.5-1.5 Sat: 10-12 SAT2: 6-8
Height [mm]

71
Frequency Range [MHz]

For SAT input: 5-2400
Mounting depth [mm]

25
Variant

RTV sat sat2
For the frame system

Yes
PKWIU

26.40.52.0

Number of sockets

3
Shape

Square
Fixing

claws screws
Overprint

NO
Family

ARIA
Width [mm]

71
Type

Flush-mounted
Surface protection

varnishing
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

Plastic Metal

Other technical data

Model

End socket
Number of modules (module system)

1
Tap loss at 860 MHz

1 dB
Number of outlets

1
Through loss at 860 MHz

0 dB
Suitable for remote power supply

No
Type of fastening

Mounting with claw and screw
RAL-number (similar)

9006
Surface finishing

Glossy
Material quality

Thermoplastic

Mounting method

Flush-mounted
Cover

Complete housing
Tap loss at 2150 MHz

2.5 dB
Suitable for cable modem

No
Through loss at 2150 MHz

0 dB
Frequency

5 ... 860 MHz
Colour

Silver
Surface protection

Lacquered
Material

Plastic
Halogen free

Yes

A kind of package		Pudełko
Quantity	1 pcs.	4 pcs.
Weight (kg)	0,115	-
Width (m)	0,071	0,140
Length (m)	0,071	0,162
Depth (m)	0,038	0,090
