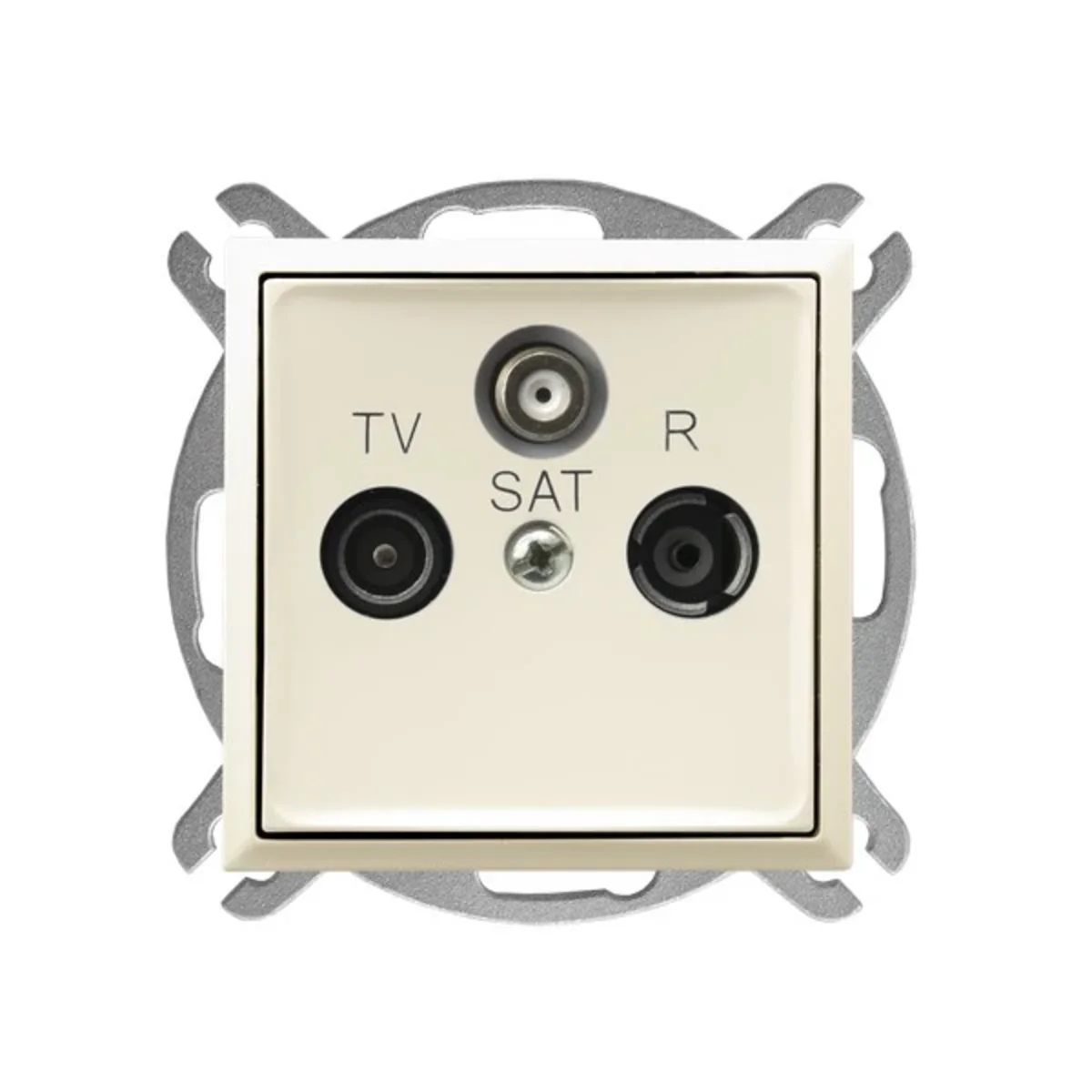

ARIA RTV-SAT end socket ecru GPA-US/M/27

local index:
MEA324OSPE
Catalog No:
GPA-US/M/27
EAN code:
5907577492212
Manufacturer: OSPEL
Depth [mm]: 38
Number of sockets: 3
Color: Beige
Price:
18,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RTV-SAT antenna socket. It is designed for parallel installation, in which an independent cable from the antenna runs to each receiver. To be equipped with a frame.



SERIES DESCRIPTION

The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.

Technical data

  • Depth [mm]
    38
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 1.5 TV: 1-1.5 SAT: 1.5-2
  • Version
    Final
  • Surface protection
    Natural
  • Accurate color
    Ecru
  • Mounting depth [mm]
    25
  • Variant
    R TV sat
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    ARIA
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    For entry: 5-2400
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    End socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    1.5 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    1013
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    2 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    White
  • Surface protection
    Untreated
  • Material
    Plastic
  • Halogen free
    Yes

Manufacturer details

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,290
Depth (m) 0,090
