ARIA RTV DATA socket white GPA-UD/M/00

Indice locale:
MEA313OSPE
Numero di catalogo:
GPA-UD/M/00
Codice EAN:
5907577482527
Produttore: OSPEL
Depth [mm]: 38
Number of sockets: 3
Color: White
Prezzo:
20,75 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
2 settimane
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

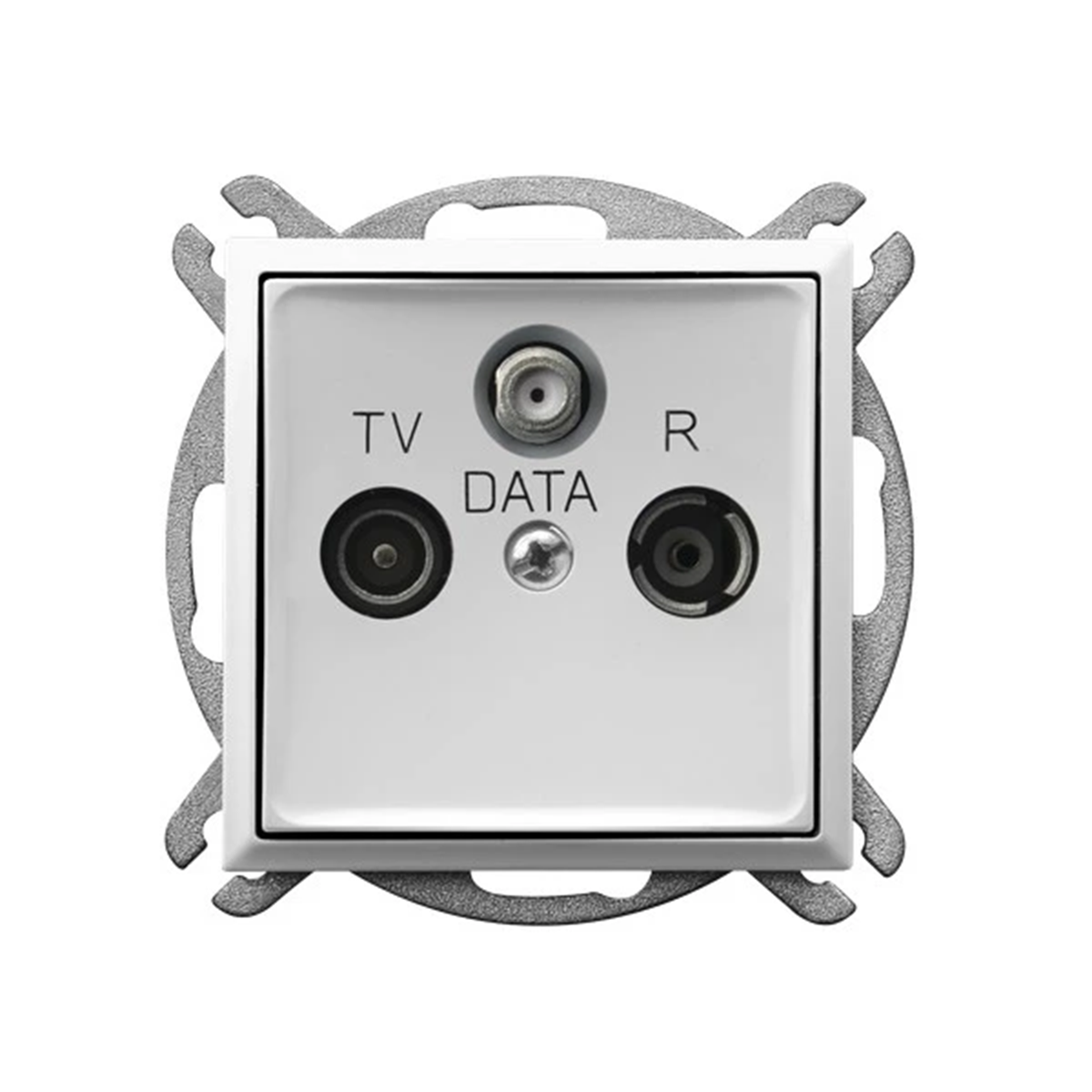

RTV-DATA antenna socket. To be equipped with a frame.



SERIES DESCRIPTION

The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.

Dati tecnici

  • Depth [mm]
    38
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 13.2-13.6 TV: 9.5-12.4 DATE: 2.4-4.3
  • Height [mm]
    71
  • Frequency Range [MHz]
    R: 88-108 TV: 88-862 DATE: 5-862
  • Mounting depth [mm]
    25
  • Variant
    R TV DATE
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    ARIA
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Altri dati tecnici

  • Model
    End socket
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    White
  • Surface protection
    Untreated
  • Material
    Plastic
  • Halogen free
    Yes
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    4.3 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9003
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Pudełko
Quantità 10 pezzi
Larghezza (m) 0,162
Lunghezza (m) 0,290
Profondità (m) 0,090
