ARIA RTV DATA socket black mat GPA-UD/M/33

Índice local:
MEA316OSPE
Número de catálogo:
GPA-UD/M/33
Código EAN:
5907577484378
Fabricante: OSPEL
Depth [mm]: 38
Number of sockets: 3
Color: Black
Precio:
22,88 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
2 semanas
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

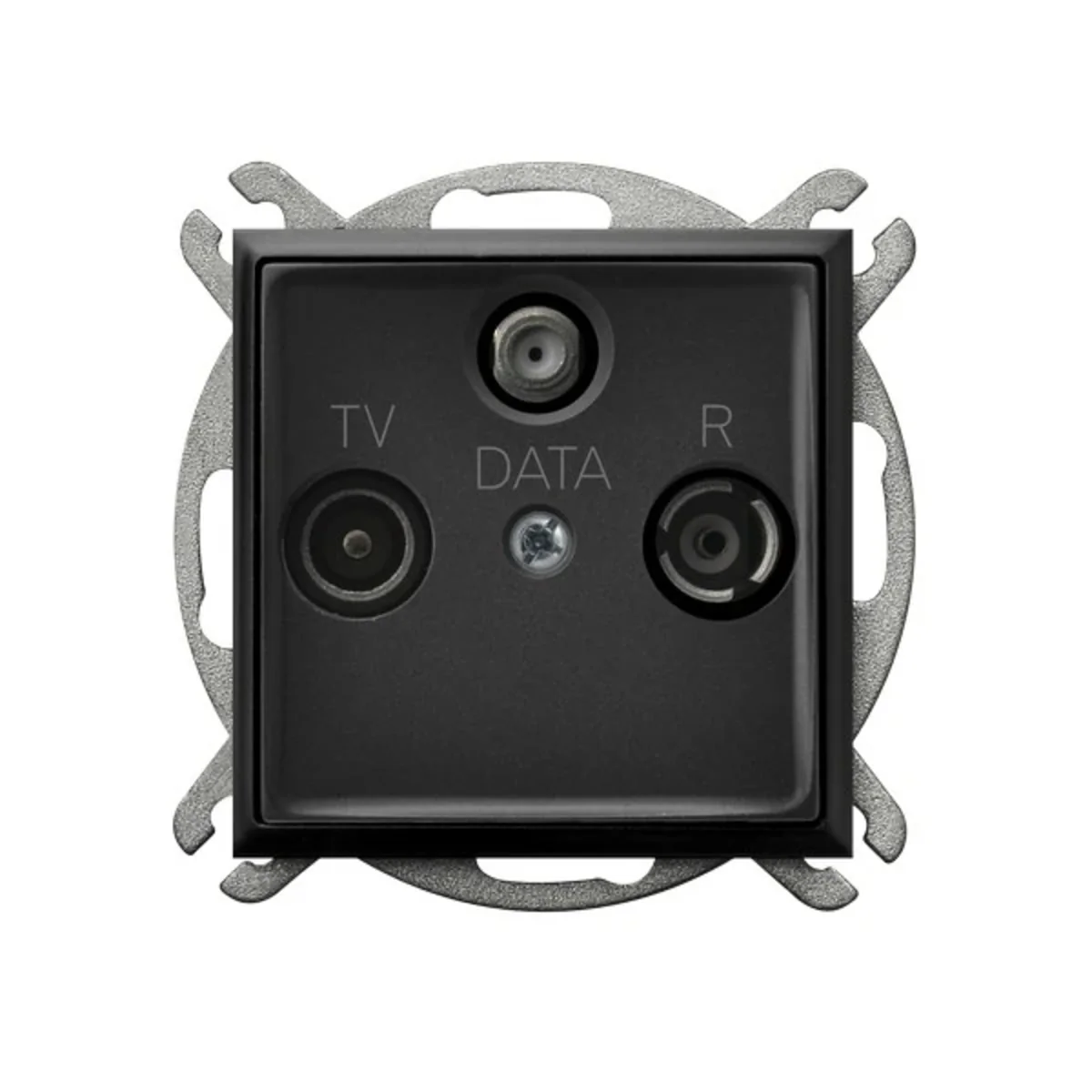

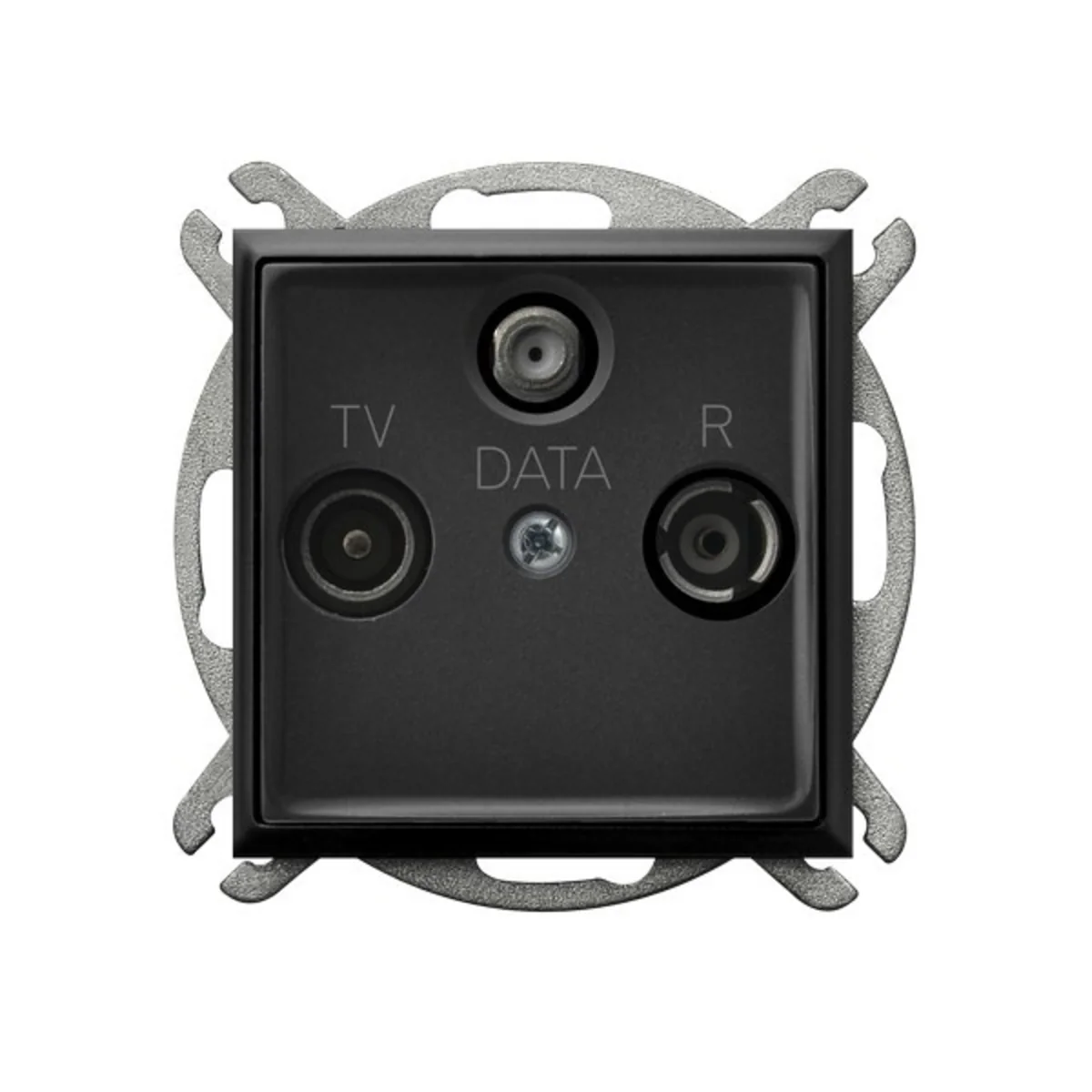

RTV-DATA antenna socket. To be equipped with a frame.



SERIES DESCRIPTION

The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.

Datos técnicos

  • Depth [mm]
    38
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 13.2-13.6 TV: 9.5-12.4 DATE: 2.4-4.3
  • Height [mm]
    71
  • Frequency Range [MHz]
    R: 88-108 TV: 88-862 DATE: 5-862
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    ARIA
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    25
  • Variant
    R TV DATE
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0

Otros datos técnicos

  • Model
    End socket
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    Black
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    4.3 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9005
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic

Detalles del fabricante

  • Fabricante
    OSPEL S.A.
  • Dirección
    42-436 Wierbka Główna 128 Polska

Empaquetado a granel

una especie de paquete Pudełko
Cantidad 4 uds.
Ancho (m) 0,140
Longitud (m) 0,162
Profundidad (m) 0,090
