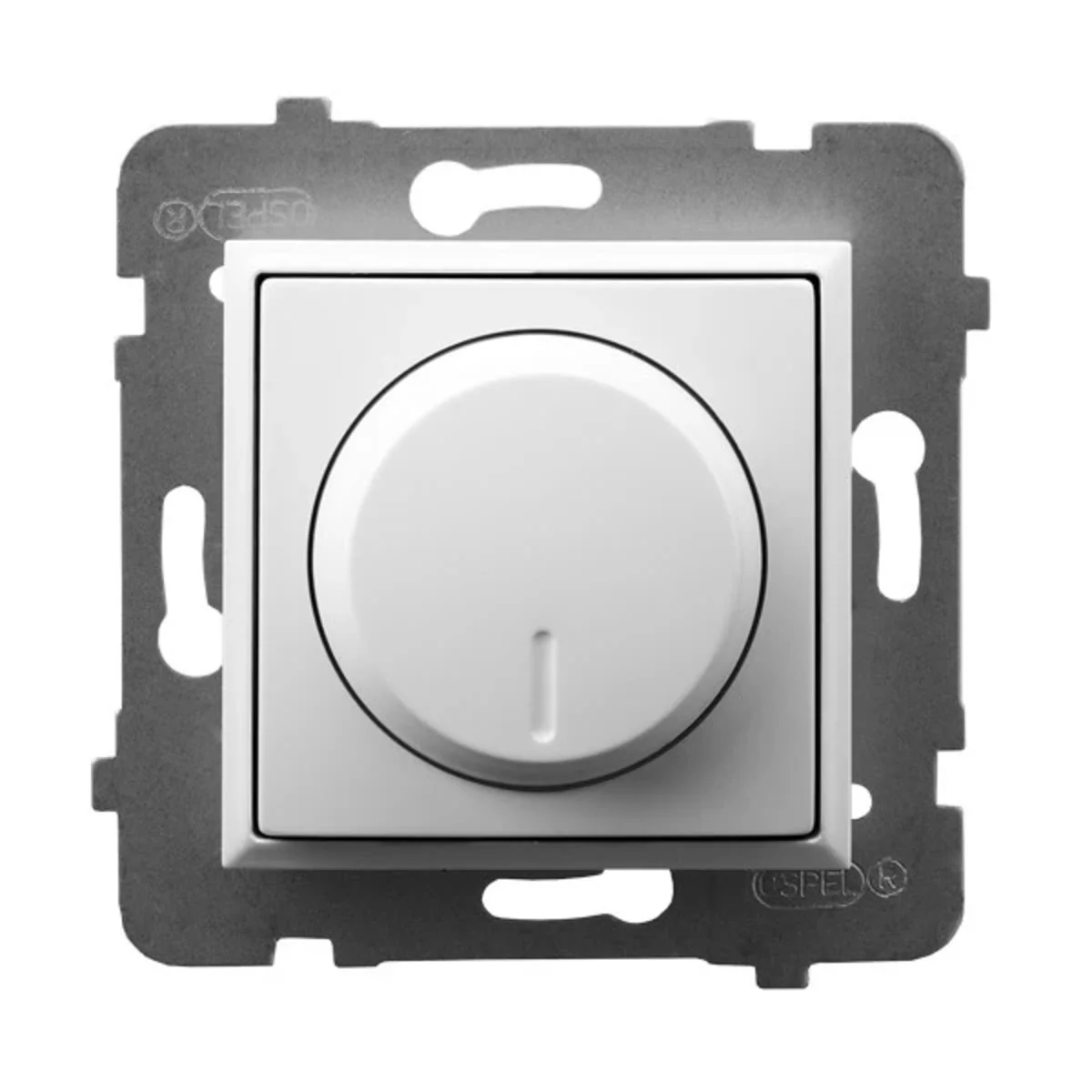

ARIA Push-turn dimmer white ŁP-8U/M/00

Name: ARIA Push-turn dimmer white
Brand: OSPEL
SKU: MMC035OSPE
Price: 133.28 PLN
Availability: BackOrder

Indice locale:

MMC035OSPE

Numero di catalogo:

ŁP-8U/M/00

Codice EAN:

5907577482190

Clicca sulla foto per ingrandire

Produttore: OSPEL

Depth [mm]: 52

Number of keys: Knob

Color: White

Vedi la descrizione completa

Prezzo:

133,28 zł

gross / pezzi

(inclusa IVA 23%)

fino a 4 settimane

Su ordinazione

Quantità pezzi

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Push-turn dimmerfrom Aria series, from Ospel manufacturer. The product catalog number is ŁP-8U/M/00.

FEATURES

Adjusted to incandescent load and halogen.
Load power: 40-400W.

SERIES DESCRIPTION

Products from < strong>Aria have an internal decorative frame, which adds originality and distinguishes them from other series. Dimmercharacterizes the features of this unique series.

Dati tecnici

Depth [mm]

52
Color

White
Material

Plastic
Rated voltage [V]

230
Family

ARIA
Width [mm]

71
Version

For incandescent lighting For halogen lighting
Surface protection

Natural
Mounting depth [mm]

32
Terminal type

Threaded
For the frame system

Yes

Number of keys

Knob
Shape

Square
Fixing

claws screws
Type

dimmers
Level of security

IP20
Type

Flush-mounted
Height [mm]

71
Backlight

NO
load power [W]

40-400
Variant

Rotary Button
PKWIU

27.33.11.0

Altri dati tecnici

Assembly arrangement

Basic element with complete housing
Number of modules (module system)

1
Serial dimmer

Yes
Substation input

No
Applicable with button

Yes
Applicable with presence indicator

No
Applicable with transmission button

No
Mounting method

Flush-mounted
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9003
Suitable for degree of protection (IP)

IP20
Nominal voltage

230 ... 230 V
Control voltage

230 ... 230 V
Device width

82 mm
Device depth

52 mm

Method of operation

Turn/push button
App control via Bluetooth

No
Type of load

Resistive load
Light value memory

Yes
Applicable with movement sensor

No
Applicable with time switch/timer

No
Applicable with infrared button

No
Type of fastening

Mounting with claw and screw
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Transparent

No
Impact strength

IK03
Frequency

50 ... 50 Hz
Core cross section

1 ... 1.5 mm²
Device height

82 mm
Min. depth of built-in installation box

60 mm

Dettagli del produttore

Produttore

OSPEL S.A.
Indirizzo

42-436 Wierbka Główna 128 Polska
Email

ospel@ospel.com.pl

Imballaggio sfuso

Una specie di pacchetto	Pudełko
Quantità	5 pezzi
Larghezza (m)	0,710
Lunghezza (m)	0,710
Profondità (m)	0,320

File da scaricare

pl.pdf
