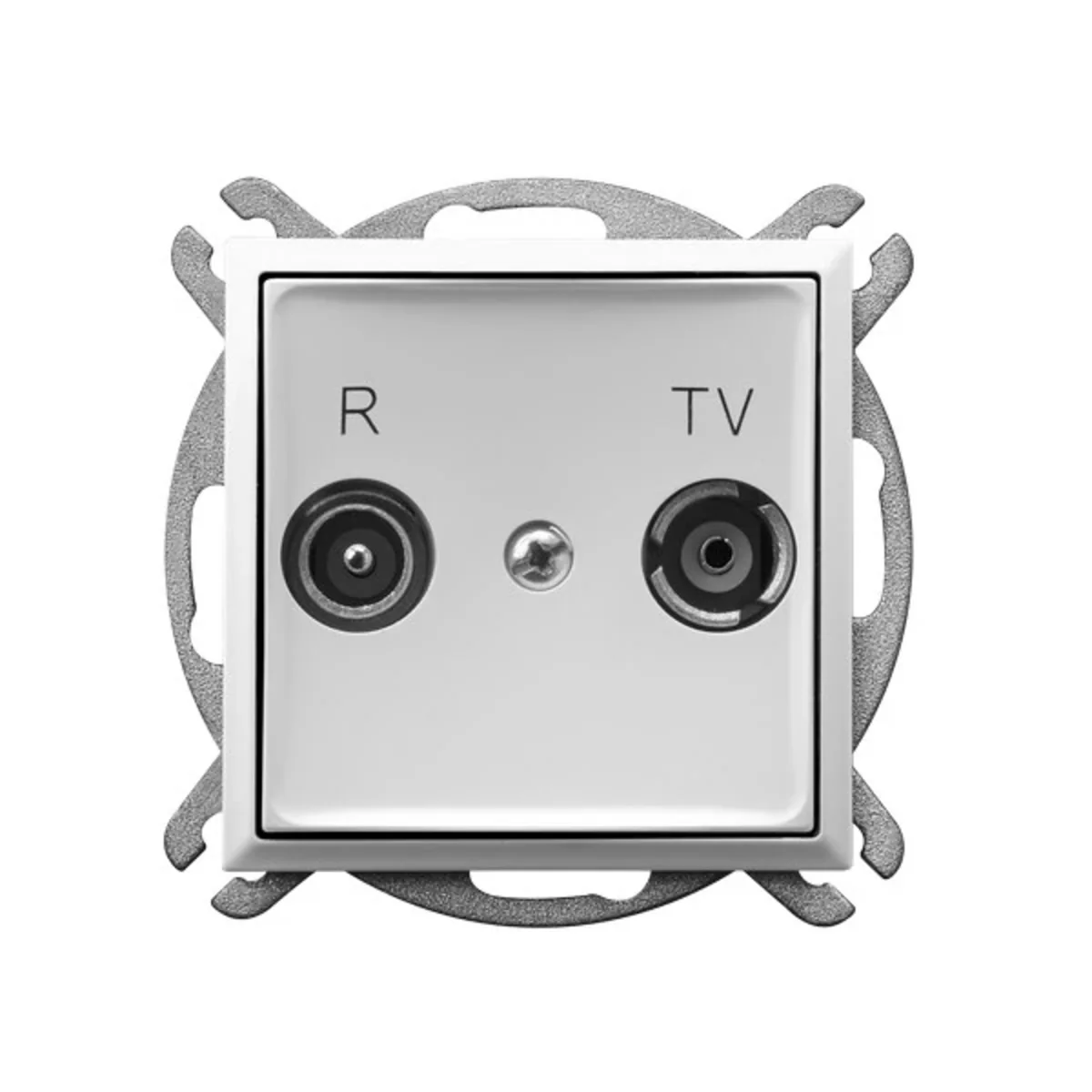

RTV antenna socket pass-through. It is designed for serial installation, where one cable passes through various receivers. To be equipped with a frame.

SERIES DESCRIPTION

The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.

Depth [mm]

35
Color

White
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

R: 14 TV: 14
Version

through
Surface protection

Natural
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

Plastic Metal

Number of sockets

2
Shape

Square
Fixing

claws screws
Overprint

Yes
Family

ARIA
Width [mm]

71
Type

Flush-mounted
Height [mm]

71
Frequency Range [MHz]

R: 88-108 TV: 5-70 TV: 120-862
Mounting depth [mm]

25
Variant

R TV
For the frame system

Yes
PKWIU

26.40.52.0

Other technical data

Model

Loop-through socket
Cover

Complete housing
Tap loss at 2150 MHz

0 dB
Suitable for cable modem

No
Through loss at 2150 MHz

0 dB
Frequency

5 ... 860 MHz
Colour

White
Surface protection

Untreated
Material

Plastic
Halogen free

Yes

Mounting method

Flush-mounted
Tap loss at 860 MHz

0 dB
Number of outlets

1
Through loss at 860 MHz

14 dB
Suitable for remote power supply

No
Type of fastening

Mounting with claw and screw
RAL-number (similar)

9003
Surface finishing

Glossy
Material quality

Thermoplastic

A kind of package		Pudełko
Quantity	1 pcs.	10 pcs.
Weight (kg)	0,105	-
Width (m)	0,071	0,162
Length (m)	0,071	0,290
Depth (m)	0,035	0,090
