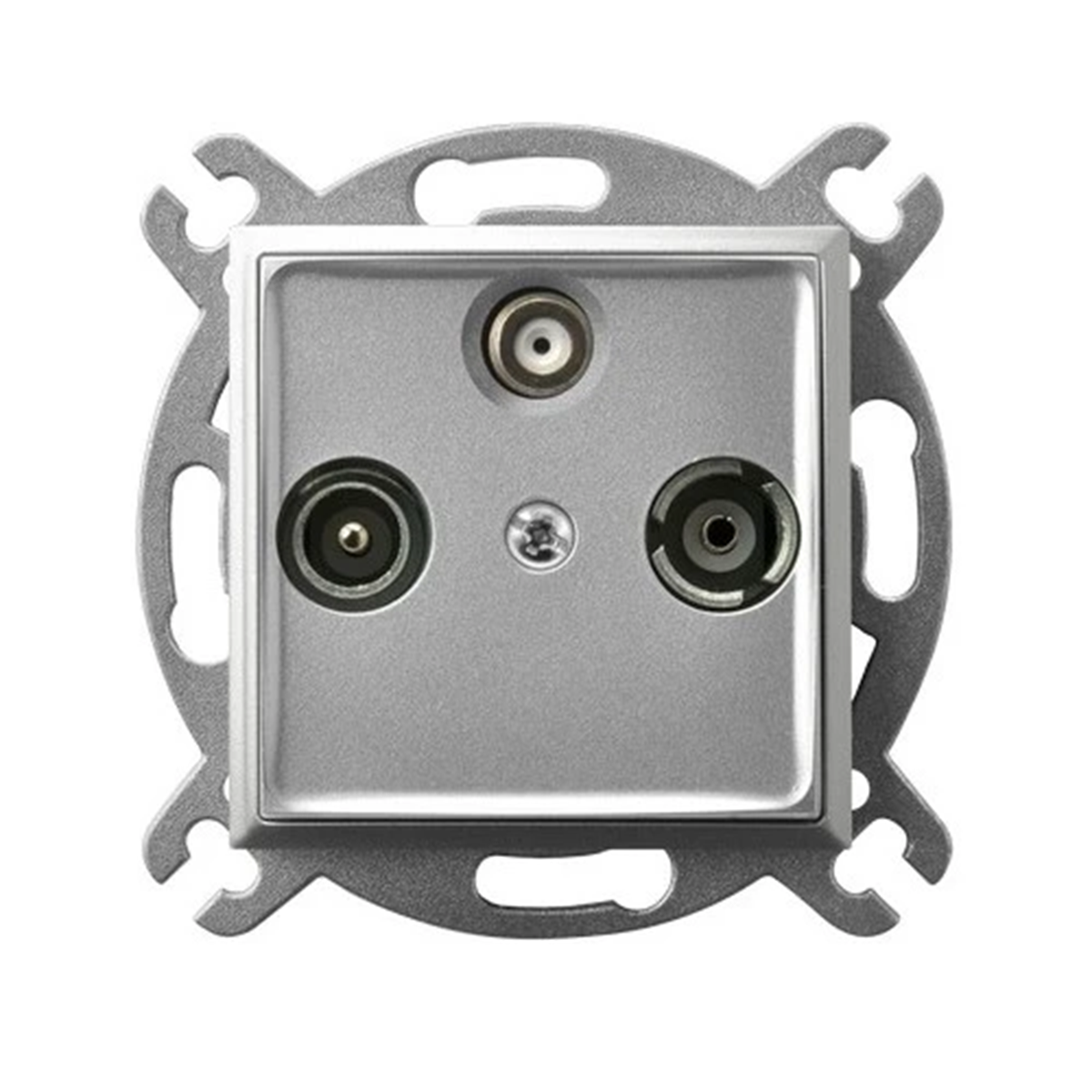

ARIA Pass-through RTV-SAT socket, silver GPA-USP/M/18
local index:
MEA326OSPE
Catalog No:
GPA-USP/M/18
EAN code:
5907577483470
Price:
23,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RTV-SAT pass-through antenna socket. It is designed for serial installation, where one cable passes through various receivers. To be equipped with a frame.
SERIES DESCRIPTION
The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.
Technical data
-
Depth [mm]38
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
TypeAntenna
-
Level of securityIP20
-
Attenuation [dB]R: 12 TV: 10-12 Sat: 6-8
-
Versionthrough
-
Surface protectionvarnishing
-
BacklightNO
-
Terminal typeThreaded
-
F-type inputNO
-
Exact materialPlastic Metal
-
Number of sockets3
-
ShapeSquare
-
Fixingclaws screws
-
OverprintNO
-
FamilyARIA
-
Width [mm]71
-
TypeFlush-mounted
-
Height [mm]71
-
Frequency Range [MHz]For entry: 5-2400
-
Mounting depth [mm]25
-
VariantR TV sat
-
For the frame systemYes
-
PKWIU26.40.52.0
Other technical data
-
ModelLoop-through socket
-
Number of modules (module system)1
-
Tap loss at 860 MHz12 dB
-
Number of outlets1
-
Through loss at 860 MHz4 dB
-
Suitable for remote power supplyNo
-
Type of fasteningMounting with claw and screw
-
RAL-number (similar)9006
-
Surface finishingGlossy
-
Material qualityThermoplastic
-
Mounting methodFlush-mounted
-
CoverComplete housing
-
Tap loss at 2150 MHz8 dB
-
Suitable for cable modemNo
-
Through loss at 2150 MHz7 dB
-
Frequency5 ... 860 MHz
-
ColourSilver
-
Surface protectionLacquered
-
MaterialPlastic
-
Halogen freeYes
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
