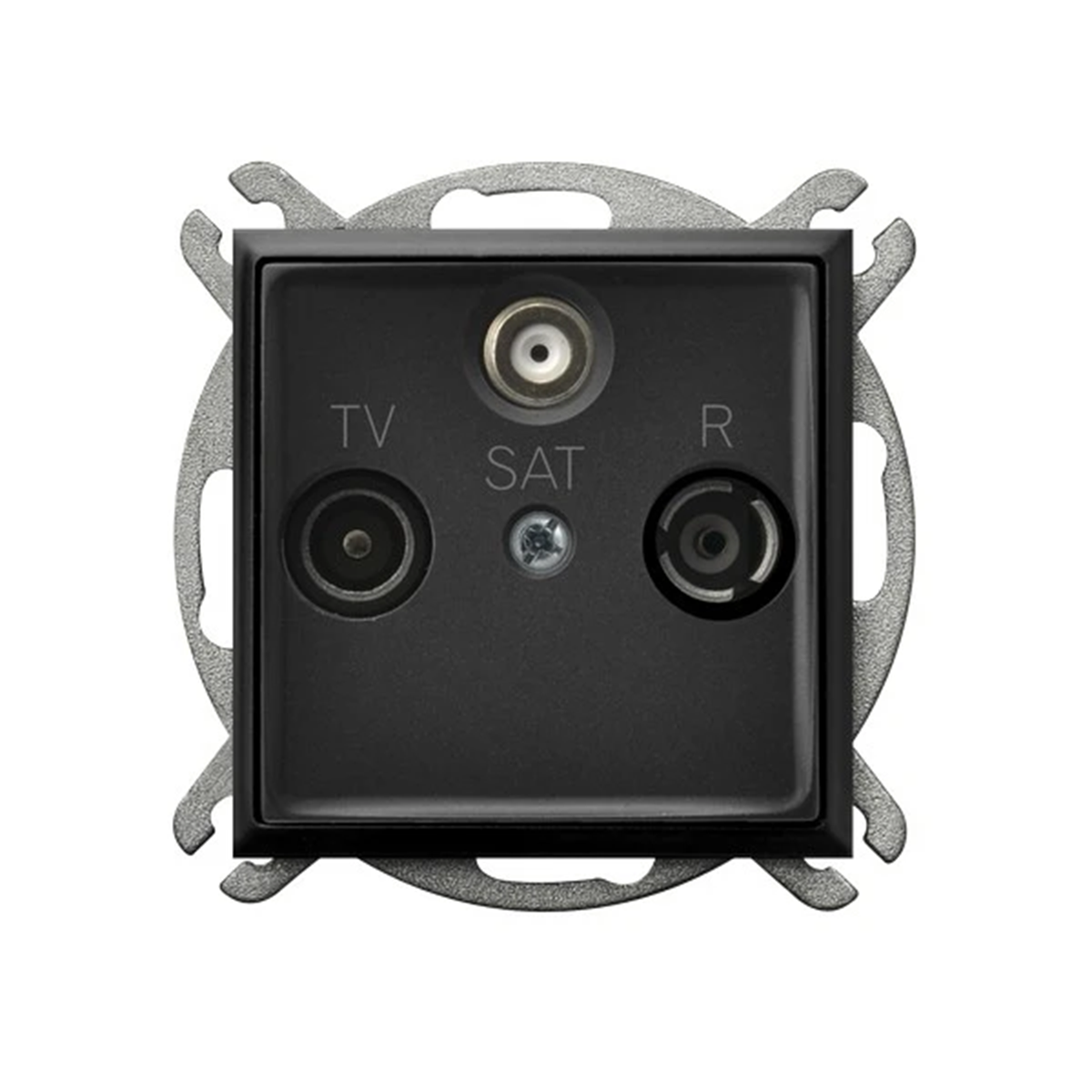

ARIA Pass-through RTV-SAT socket black metallic GPA-USP/M/33

Lokaler Index:
MEA328OSPE
Katalognummer:
GPA-USP/M/33
EAN-Code:
5907577484361
Hersteller: OSPEL
Depth [mm]: 38
Number of sockets: 3
Color: Black
Preis:
114,66 zł
gross / stk.
(inklusive MwSt 23%)
bis zu 4 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

RTV-SAT pass-through antenna socket. It is designed for serial installation, where one cable passes through various receivers. To be equipped with a frame.



SERIES DESCRIPTION

The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.

Technische Daten

  • Depth [mm]
    38
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 12 TV: 10-12 Sat: 6-8
  • Version
    through
  • Surface protection
    varnishing
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    25
  • Variant
    R TV sat
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    ARIA
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    For entry: 5-2400
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Weitere technische Daten

  • Model
    Loop-through socket
  • Number of modules (module system)
    1
  • Tap loss at 2150 MHz
    8 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    7 dB
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9005
  • Surface finishing
    Matt
  • Material quality
    Thermoplastic
  • Device width
    71 mm
  • Device depth
    38 mm
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    12 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    4 dB
  • Suitable for remote power supply
    No
  • Colour
    Black
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm

Hersteller-Details

  • Hersteller
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Großpackungen

Eine Art Paket Pudełko
Menge 4 stk.
Breite (m) 0,710
Länge (m) 0,710
Tiefe (m) 0,250
