365168
0
ARIA Opening switch ecru ŁP-21U/M/27
local index:
MMZ041OSPE
Catalog No:
ŁP-21U/M/27
EAN code:
5907577491819
Price:
4,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

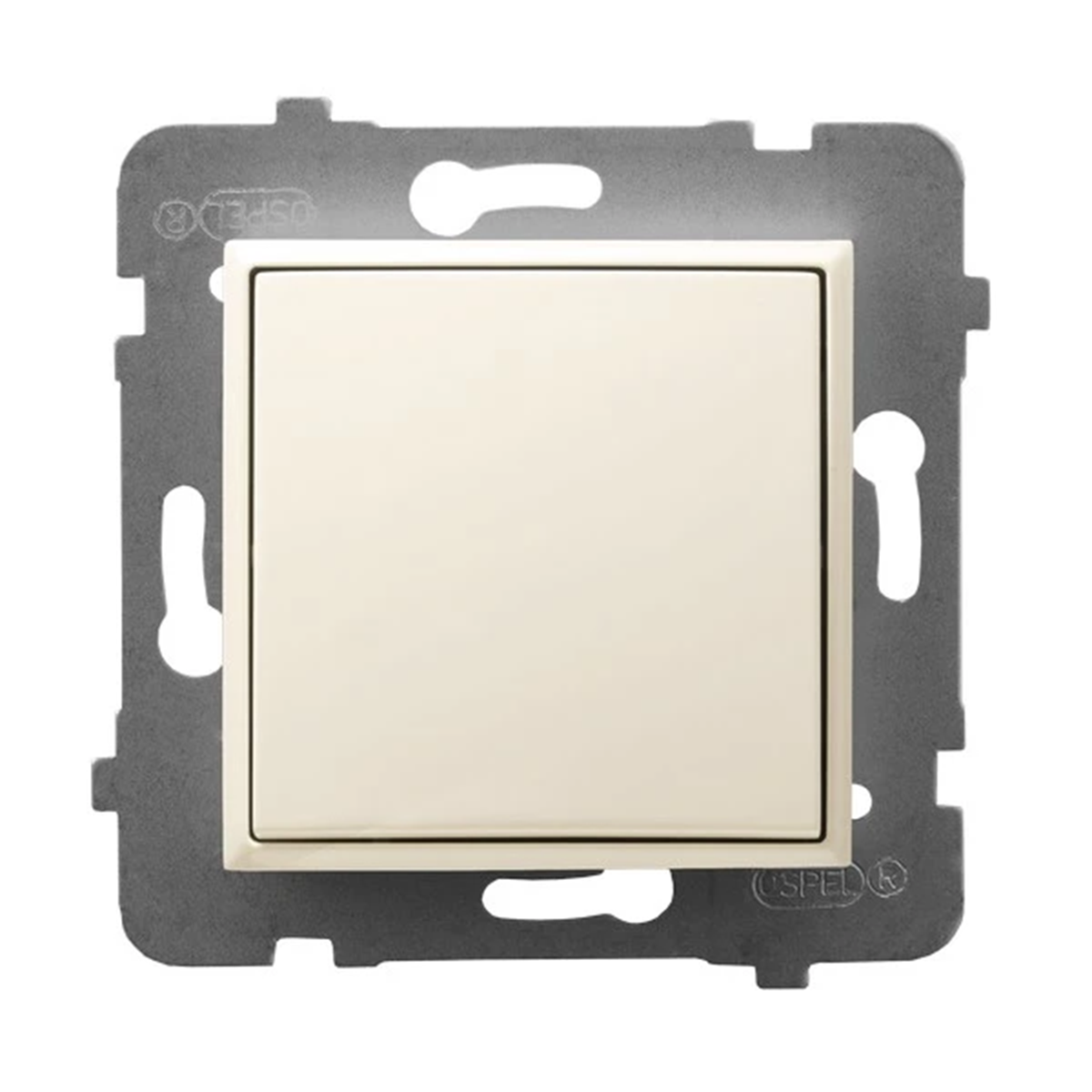

Operating switch from the Aria series, from the manufacturer Ospel. The product catalog number is ŁP-21U/M /27. Ecru color.
FEATURES
- No pictogram.
- To be equipped with a frame.
- To obtain IP44 splash-proof class, use a sealing set for IP44 connectors.
SERIES DESCRIPTION
The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from several backlight colors.
Technical data
-
Depth [mm]40
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilyARIA
-
Width [mm]71
-
VersionConfident
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreadless
-
For the frame systemYes
-
PKWIU27.33.11.0
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorEcru
-
Mounting depth [mm]25
-
VariantOrdinary
-
Exact materialPlastic Metal
Other technical data
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)1013
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width82 mm
-
Device depth40 mm
-
Assembly arrangementBasic element with complete housing
-
Push button switchYes
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
ColourWhite
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height82 mm
-
Built-in depth25 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
