ARIA LTS backlight unit for orange switches ZP-1UP

local index:
MAI008OSPE
Catalog No:
ZP-1UP
EAN code:
5907577482978
Manufacturer: OSPEL
Color: Transparent
Material: Plastic
Family: ARIA
Price:
1,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

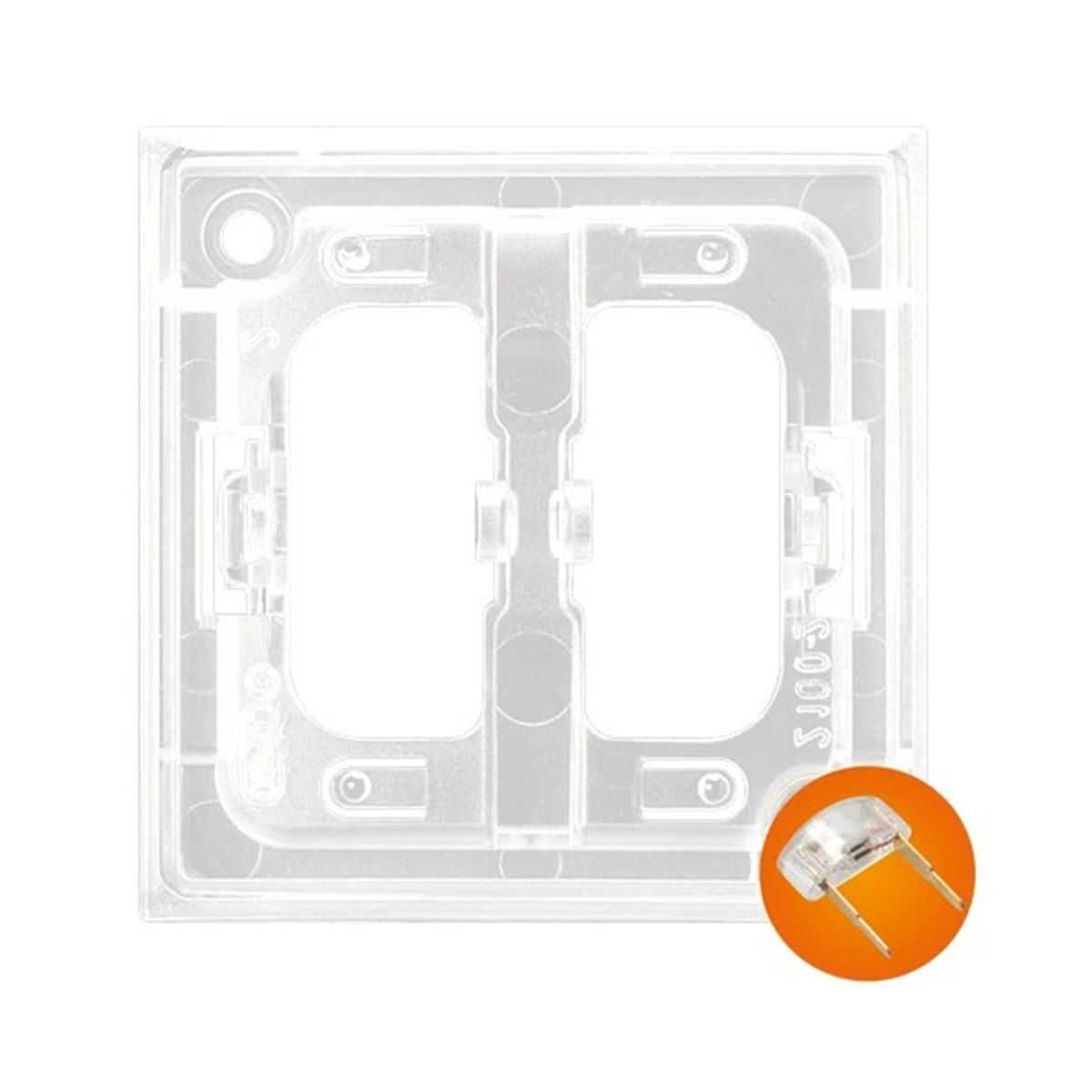

The backlight unit allows you to transform the Aria series switch into an illuminated switch.

The backlight unit is designed to work with Aria series switches, it includes a transparent ring and a backlight module for assembly in the switch mechanism.

The set is designed to work with switches with one or two keys, except for the stair switch + single-pole (ŁP-9U/m/..), double switch (ŁP-10U/m/..) and double closing (ŁP-17U/m/..).

Technical data

  • Color
    Transparent
  • Family
    ARIA
  • PKWIU
    27.33.13.0
  • Material
    Plastic
  • Dimensions [mm]
    52 x 52

Other technical data

  • Application
    Switch/push button
  • With light source
    Yes
  • Lamp holder
    Other
  • Nominal current
    0.0004 A
  • Lamp type
    Glow lamp
  • Colour light source
    Orange
  • Nominal voltage
    110 ... 110 V
  • Nominal electricity consumption
    0.4 mA

Bulk packaging

A kind of package Pudełko
Quantity 1 pcs. 10 pcs.
Width (m) 0,052 0,140
Length (m) 0,052 0,162
Depth (m) 0,010 0,090
