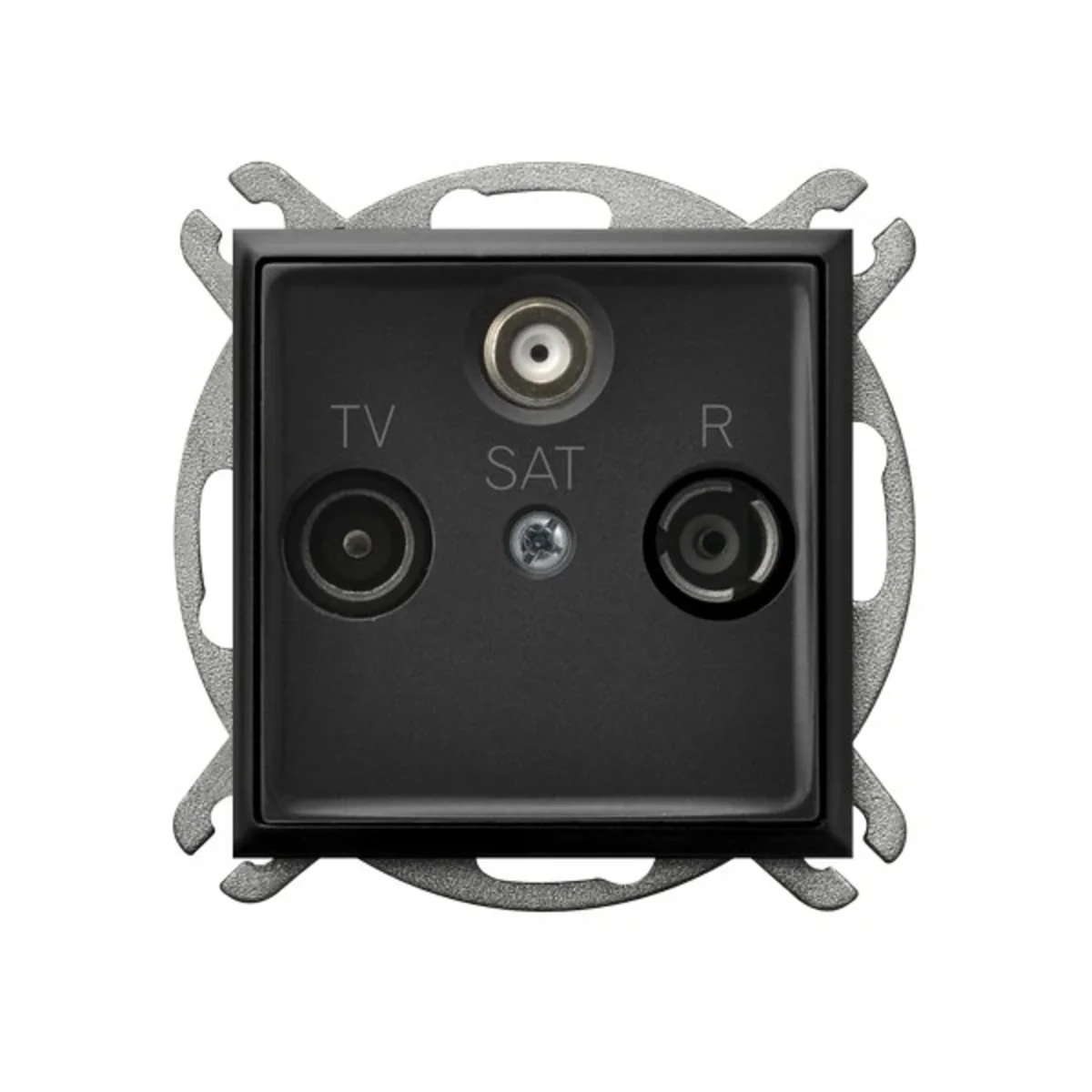

ARIA Final RTV-SAT socket black metallic GPA-US/M/33

local index:
MEA380OSPE
Catalog No:
GPA-US/M/33
EAN code:
5907577484354
Manufacturer: OSPEL
Depth [mm]: 38
Number of sockets: 3
Color: Black
Price:
19,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Antenna socket from the Aria series, from the manufacturer Ospel. The product part number is GPA-US/M/33.



FEATURES

  • RTV -SAT.
  • Final.
  • Attenuation factor 1.5 - 2 dB.< /li>
  • Shielding efficiency: > 65 dB.
  • Module without frame.
  • Color black metallic.



< h3>SERIES DESCRIPTION

The products from the Aria series have an internal decorative frame which adds originality and distinguishes them from other series. The flush-mounted antenna socket has all the features of this unique series.

Technical data

  • Depth [mm]
    38
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 1.5 TV: 1-1.5 SAT: 1.5-2
  • Version
    Final
  • Surface protection
    varnishing
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    25
  • Variant
    R TV sat
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    ARIA
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    For entry: 5-2400
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    End socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    1.5 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9005
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    2 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    Black
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes

Manufacturer details

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
