Name: ARIA Ecru double speaker socket
Brand: OSPEL
SKU: MEG048OSPE
Price: 9.75 PLN

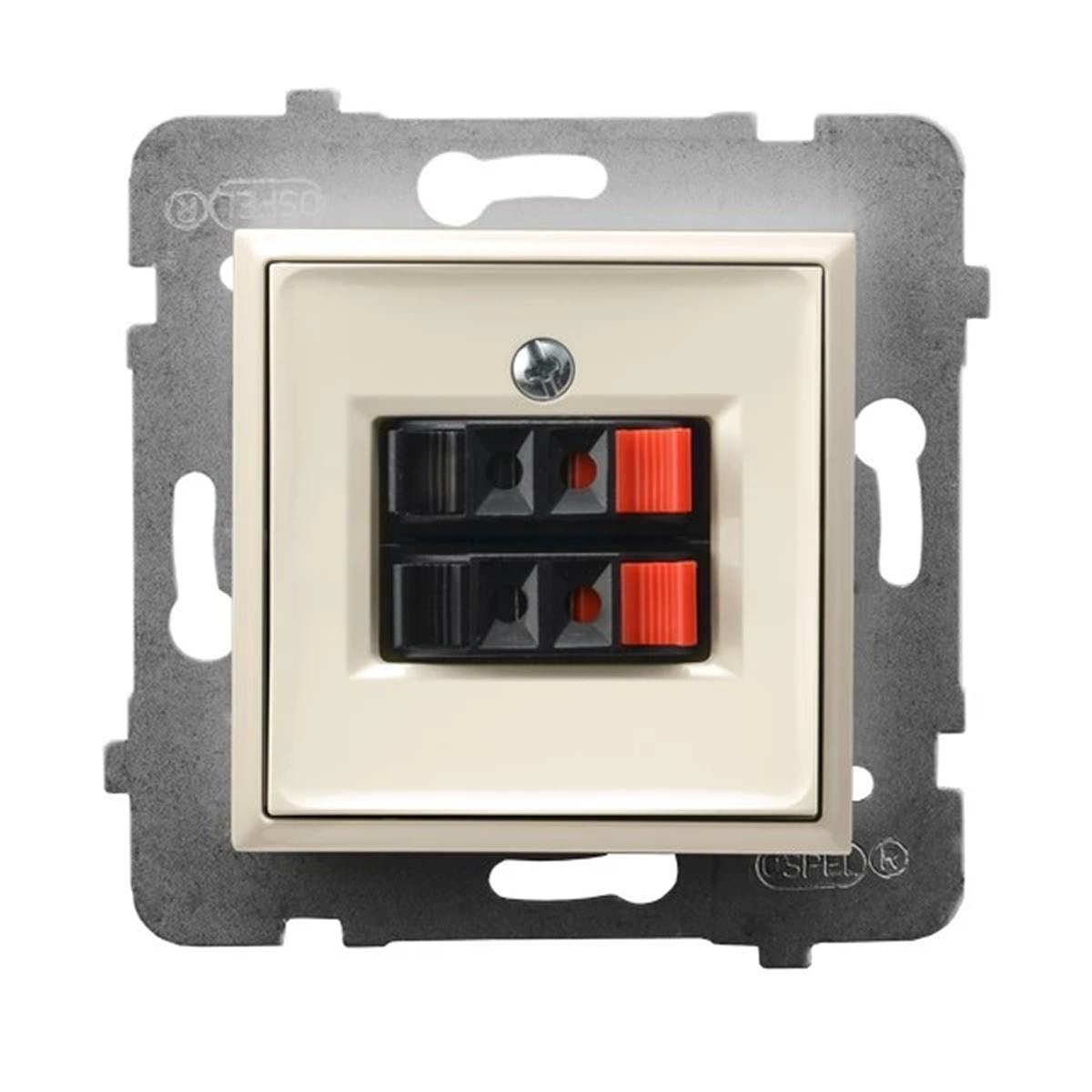

Speaker socket from the Aria series, from Ospel. The product catalog number is GG-2U/M/27.

FEATURES

Double ;jne.
Module without frame.
Color ecru.
Mounting flush.
Wire connectivity 0.75 mm2.

SERIES DESCRIPTION

TheAria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Speaker socket has all the features of this unique series.

Depth [mm]

40
Color

Beige
Material

Plastic
Installation

Flush-mounted
Family

ARIA
Width [mm]

71
Height [mm]

71
Accurate color

Ecru
Mounting depth [mm]

22
Variant

Pin-type plugs
Exact material

Plastic Metal

Number of sockets

2
Shape

Square
Fixing

claws screws
Type

speaker
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Backlight

NO
Terminal type

For soldering
For the frame system

Yes
PKWIU

26.40.52.0

Other technical data

Surface mounting

No
Floor box/subfloor mounted

No
Assembly arrangement

Basic element with complete housing
With buses/couplings

Yes
Category

Other
RAL-number

1013
Shielded buses

No
Separate earthing connection

No
Compatible with third-party covers

No
Mounting method shielding connection

None
With dust cover

No
Mechanical coding

No
Device width

82 mm
Device depth

32 mm

Duct installation

No
Type of fastening

Screwing
Type of connector

Other
Suitable for number of connectors

2
Colour

White
Connection type

Other
Shielded housing

No
With label space

No
Separate strain relief

No
Outlet direction

Straight
Degree of protection (IP)

IP20
Colour coding

No
Device height

82 mm

A kind of package		Pudełko
Quantity	1 pcs.	10 pcs.
Weight (kg)	0,061	-
Width (m)	0,071	0,162
Length (m)	0,071	0,290
Depth (m)	0,040	0,090
