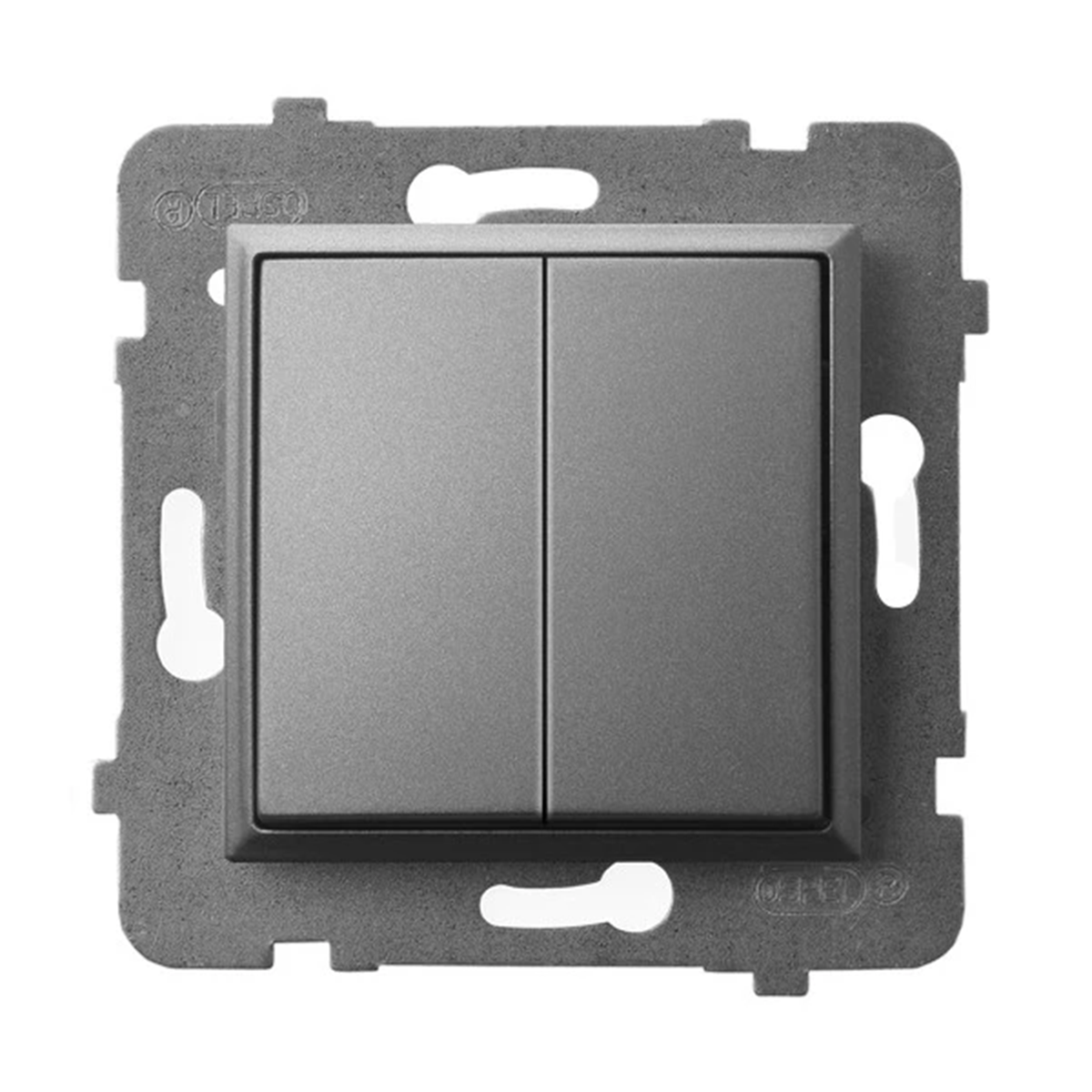

ARIA double stair connector gray mat ŁP-10U/M/70

Index local:
MMS033OSPE
Numéro de catalogue:
ŁP-10U/M/70
Code EAN:
5907577484927
Producteur: OSPEL
Depth [mm]: 40
Number of keys: 2
Color: Gray
Prix:
8,67 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

Stair switch from the Aria series, from Ospel. The product catalog number is ŁP-10U/M/70.



FEATURES

  • Double.
  • Baseless module.
  • Threadless terminals.
  • Color matt gray.
  • Rated current 10AX.
  • Rated voltage 230V.
  • flush mounting.
  • Rating of protection IP20.
  • Dimensions: 71 x 71 mm (height x width).



SERIES DESCRIPTION

The Aria series is a combination of modern design and perfect proportions . Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of the Aria connectors is not only practical but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from several backlight colors.

Données techniques

  • Depth [mm]
    40
  • Color
    Gray
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    ARIA
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    gray matt
  • Mounting depth [mm]
    25
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threadless
  • Exact material
    Plastic Metal

Autres données techniques

  • Wiring system
    Alternating-/alternating switch
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Grey
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    75 mm
  • Built-in depth
    25 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    2
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    7031
  • Illumination
    No
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    75 mm
  • Device depth
    40 mm

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 4 pcs.
Largeur (m) 0,140
Longueur (m) 0,162
Profondeur (m) 0,090
