ARIA Double speaker socket gray mat GG-2U/M/70

local index:
MEG050OSPE
Catalog No:
GG-2U/M/70
EAN code:
5907577485412
Manufacturer: OSPEL
Depth [mm]: 40
Number of sockets: 2
Color: Gray
Price:
12,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

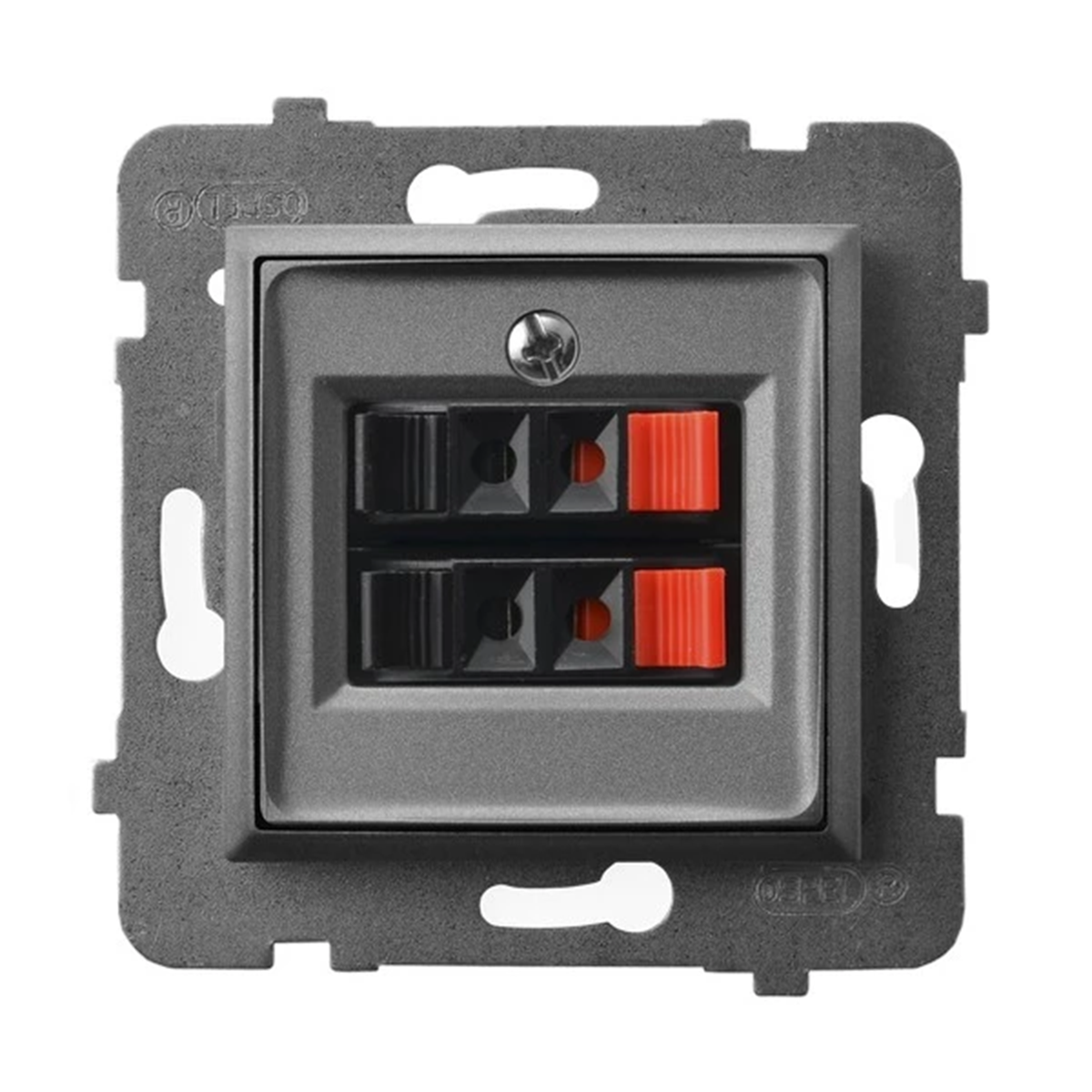

Speaker socket from the Aria series, from Ospel. The product catalog number is GG-2U/M/70.



FEATURES

  • Double ;jne.
  • Module without frame.
  • Color matte gray.
  • Installation flush.
  • Wire connectivity 0.75 mm2.

 < /p>

SERIES DESCRIPTION

TheAria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Speaker socket has all the features of this unique series.

Technical data

  • Depth [mm]
    40
  • Color
    Gray
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    ARIA
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    gray matt
  • Mounting depth [mm]
    22
  • Variant
    Pin-type plugs
  • Exact material
    Plastic Metal
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Type
    speaker
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    For soldering
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0

Other technical data

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with complete housing
  • With buses/couplings
    Yes
  • Category
    Other
  • RAL-number
    7031
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    No
  • Mounting method shielding connection
    None
  • With dust cover
    No
  • Mechanical coding
    No
  • Device width
    75 mm
  • Device depth
    32 mm
  • Duct installation
    No
  • Type of fastening
    Screwing
  • Type of connector
    Other
  • Suitable for number of connectors
    2
  • Colour
    Grey
  • Connection type
    Other
  • Shielded housing
    No
  • With label space
    No
  • Separate strain relief
    No
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    No
  • Device height
    75 mm

Manufacturer details

Bulk packaging

A kind of package Pudełko
Quantity 1 pcs. 4 pcs.
Weight (kg) 0,061 -
Width (m) 0,071 0,140
Length (m) 0,071 0,162
Depth (m) 0,040 0,090
