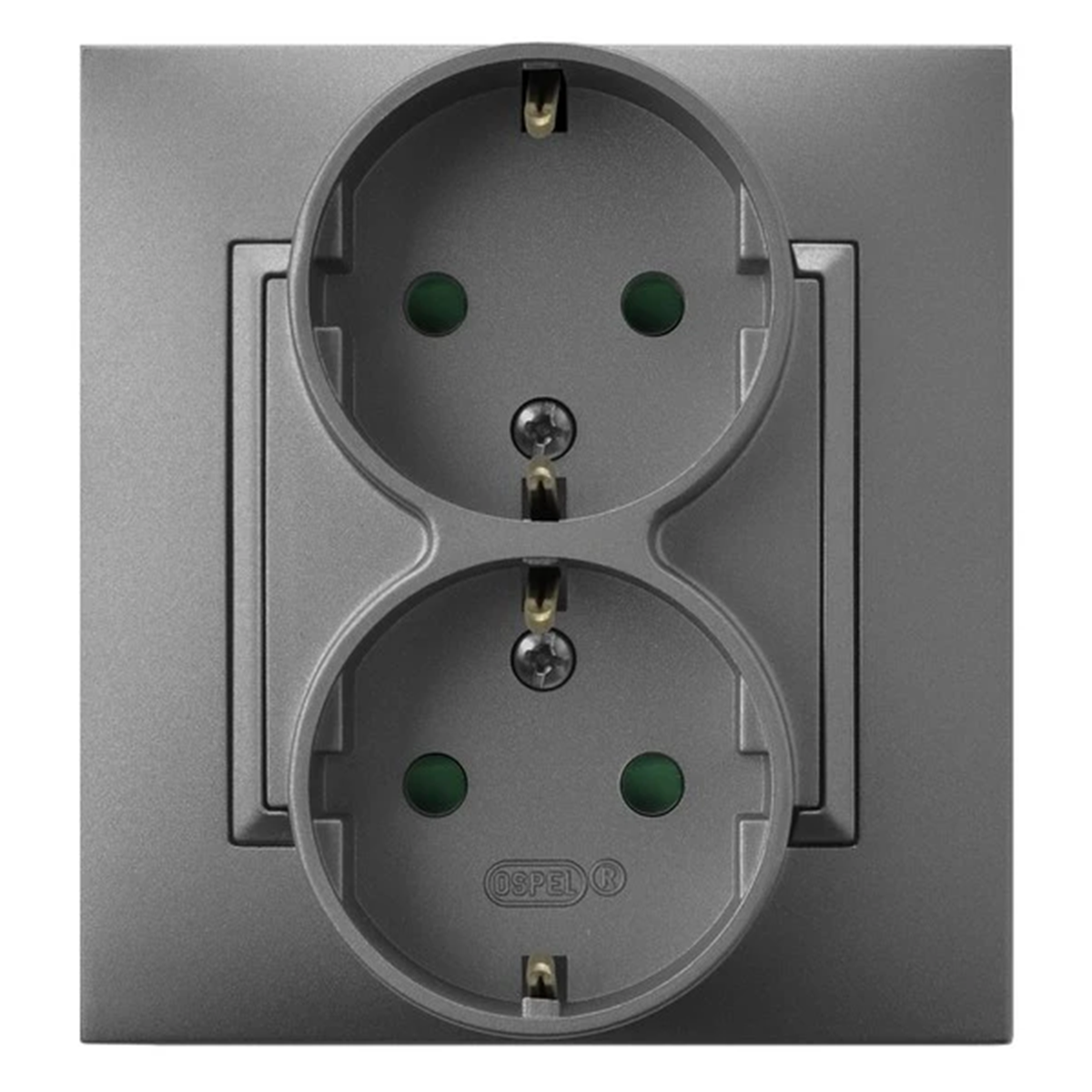

ARIA Double socket-outlet with earthing schko with shutters for current paths with a gray matt frame GP-2USP/70

Indeks lokalny:
MEE292OSPE
Numer katalogowy:
GP-2USP/70
Kod EAN:
5907577485160
Producent: OSPEL
Depth [mm]: 45
Number of sockets: 2
Color: Gray
Cena:
39,99 zł
gross / szt.
(w tym VAT 23%)
2 tygodnie
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

Electric socket double, with schuko grounding, equipped with a frame, with shutters for current paths.



SERIES DESCRIPTION

< p>The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from as many as 7 backlight colors.

Dane techniczne

  • Depth [mm]
    45
  • Color
    Gray
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    ARIA
  • Width [mm]
    82
  • Ground
    schuko
  • Surface protection
    varnishing
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    88
  • Accurate color
    gray matt
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • PKWIU
    27.33.13.0

Pozostałe dane techniczne

  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    Grey
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    82 mm
  • Device depth
    48 mm
  • Number of active contacts (flat)
    0
  • Number of modules (module system)
    2
  • Imprint/indication
    None
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    7031
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With loop through function
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    82 mm

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Pudełko
Ilość 5 szt.
Szerokość (m) 0,820
Długość (m) 0,880
Głębokość (m) 0,220
