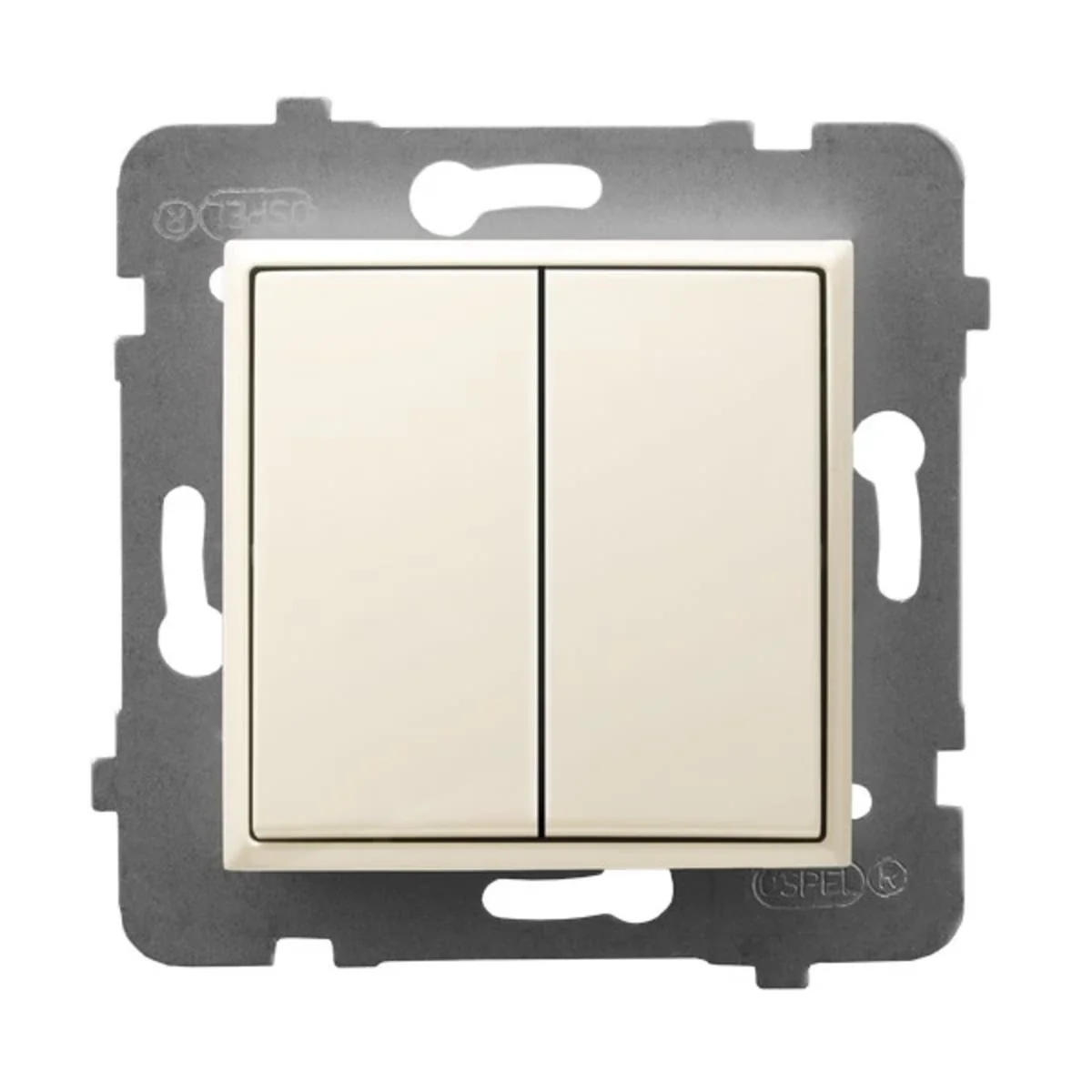

ARIA Double short-circuit switch ecru ŁP-17U/M/27

Index local:
MMZ026OSPE
Numéro de catalogue:
ŁP-17U/M/27
Code EAN:
5907577491888
Producteur: OSPEL
Depth [mm]: 40
Number of keys: 2
Color: Beige
Prix:
34,80 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 4 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

Double make switch of the Aria series, from the manufacturer Ospel. The product catalog number is ŁP-17U/M/27. Ecru color.



FEATURES

  • To be equipped with a frame.
  • To obtain the IP44 splash-proof class, use a sealing kit for IP44 connectors.



SERIES DESCRIPTION

The Aria series is a combination of modern design and perfect proportions. Internal decorative frames add originality to the products. Thanks to them, you can introduce delicate color accents, personalizing the equipment according to your preferences. Backlighting of connectors in the Aria series is not only practical, but also stylistically interesting. The frame surrounding the keys gives a visually attractive effect, and we can choose from several backlight colors.

Données techniques

  • Depth [mm]
    40
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    ARIA
  • Width [mm]
    71
  • Version
    Confident
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Ecru
  • Mounting depth [mm]
    25
  • Variant
    Ordinary
  • Exact material
    Plastic Metal

Autres données techniques

  • Wiring system
    Normally open contact (NO)
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    Yes
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    82 mm
  • Built-in depth
    25 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    2
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1013
  • Illumination
    No
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    82 mm
  • Device depth
    40 mm

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 10 pcs.
Largeur (m) 0,710
Longueur (m) 0,710
Profondeur (m) 0,250
